my spherical horn speaker system

Discussion in 'Pros and Joes Systems Gallery' started by Angelo8888, Jan 26, 2009.

  1. Angelo8888 Enthusiast

    Angelo8888
    Joined:
    Jan 26, 2009
    Messages:
    12
    Likes Received:
    1
    hi all

    my actual system consists in following :

    turntable : micro seiki dqx1000/ black widow arm / Shure VIII pick up
    phono preamp : phonomaster
    cd player : sony CDP-XP 930
    dac: audio nemesis DC1
    amplifier : Viva Audio Solista single ended integrated amp, with 845 ( Shuguang M plate ) / 211 tubes
    plate amp for the basshorn : Inosic RAS300

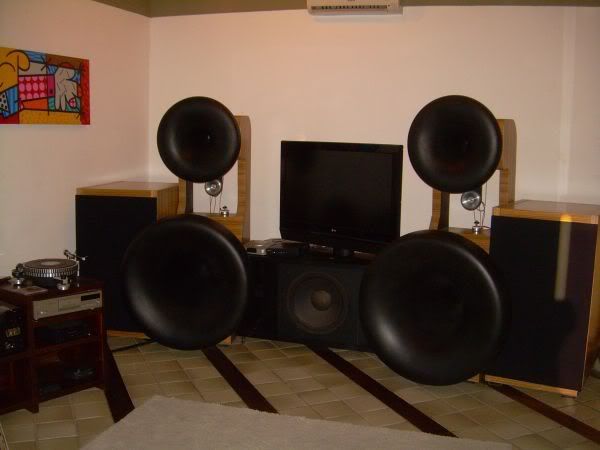

    horn speakers project and built by me :

    AudioVoice Eikon 5 ways, all frontloaded horns

    sub : Aura 1808 > 50hz
    basshorn : front loaded horn, profile between exponential and tractrix, 1,5m length , woofer Beyma 15" lx60 50hz - 150hz
    midbass : Fane Studio8m , horn with 96cm diameter tractrix made with MDF: 150hz - 1000hz
    midrange: Vitavox S2 with 60cm diameter LeCleach horn made with MDF : 1000hz - 10khz
    tweeter : Coral H104 with aluminium wave guide < 10khz

    crossover of the basshorn 150hz/24db active
    satellite passive 6db slope


    greetings from brazil Angelo
  2. Angelo8888 Enthusiast

    Angelo8888
    Joined:
    Jan 26, 2009
    Messages:
    12
    Likes Received:
    1
    • Like Like x 1
  3. Sheep Audioholic Warlord

    Sheep
    Joined:
    May 19, 2005
    Messages:
    9,657
    Likes Received:
    1,127
    Location:
    Vancouver, BC
    Ballllin! Sweet horns.

    SheepStar
  4. tcarcio Audioholic General

    tcarcio
    Joined:
    Aug 11, 2007
    Messages:
    1,308
    Likes Received:
    290
    Location:
    Worcester Mass.
    Wow, Do you get complaints by people in the next state.;)
  5. MidnightSensi Audioholic Samurai

    MidnightSensi
    Joined:
    Oct 4, 2008
    Messages:
    2,295
    Likes Received:
    908
    Location:
    Miami, FL
    NICE!

    What are the wood speakers next to your horns? Klispch?
  6. Angelo8888 Enthusiast

    Angelo8888
    Joined:
    Jan 26, 2009
    Messages:
    12
    Likes Received:
    1
  7. dorokusai Full Audioholic

    dorokusai
    Joined:
    Mar 12, 2006
    Messages:
    442
    Likes Received:
    69
    Location:
    Damascus, MD
    That's sick...LOVE it :D
  8. jamie2112 Banned

    jamie2112
    Joined:
    Oct 9, 2007
    Messages:
    7,869
    Likes Received:
    2,729
    Whoa buddy that is way too small a rig to put up on this site:eek::D:D:D very nice indeed....
  9. Djizasse Senior Audioholic

    Djizasse
    Joined:
    Feb 4, 2008
    Messages:
    727
    Likes Received:
    170
    Location:
    Lisbon, Portugal
    That's beatifull.

    Greetings from Portugal

    ps - Sistema irado ;)
  10. ParadigmDawg Audioholic Overlord

    ParadigmDawg
    Joined:
    Nov 20, 2006
    Messages:
    10,418
    Likes Received:
    3,225
    Location:
    Hiding from Alex
    That poor little display hiding behind the massive horns kind of makes me sad....
    • Like Like x 1
  11. phlakvest Audioholic

    phlakvest
    Joined:
    Sep 25, 2008
    Messages:
    162
    Likes Received:
    47
    Location:
    Knoxville TN
    I think your on the wrong forum to feel sorry for an undersized TV. :cool:

    The horns are a bit extreme for my taste... But the construction looks top notch. How do they sound?
  12. Angelo8888 Enthusiast

    Angelo8888
    Joined:
    Jan 26, 2009
    Messages:
    12
    Likes Received:
    1
    i had recently a visit of someone, which made a week end trip, to listen my system. here are his listening impressions :

    http://www.audiovoice-acoustics.com/forum/showthread.php?t=650
  13. vizionut Audioholic General

    vizionut
    Joined:
    Jan 22, 2009
    Messages:
    1,197
    Likes Received:
    235
    I would love to here Alan parsons project I robot crarnked up real loud on that system.
  14. croseiv Audioholic Samurai

    croseiv
    Joined:
    Aug 6, 2007
    Messages:
    2,395
    Likes Received:
    629
    Location:
    Somewhere on planet Earth
    A most interesting set up there.:cool:
  15. Tomorrow Audioholic Ninja

    Tomorrow
    Joined:
    Mar 4, 2005
    Messages:
    4,281
    Likes Received:
    1,206
    Being an old guy, and all, I gotta say that those remind me of my youth and look .... (how do I get this past the censors?) .... bi'chin! :)

    Great job.
  16. HedgeHog Audioholic Intern

    HedgeHog
    Joined:
    Jan 4, 2009
    Messages:
    34
    Likes Received:
    6
    Location:
    Richmond, BC
    Well done! Looks gorgeous too. How efficient are horns? Do you run just an 80W tube amp or does it require megawatts to power cleanly? And how much does a set of those cost should someone commission you to build a set?

    BTW, they remind me a lot of the Avant-Garde Acoustic line: www [dot] avantgarde-acoustic [dot] de/hornlautsprecher.php?lang=en

    Cheers,
    Hedwig
  17. emorphien Audioholic General

    emorphien
    Joined:
    Dec 1, 2006
    Messages:
    1,252
    Likes Received:
    122
    Location:
    Rochester, NY
    That's awesome, I'd love to hear what something like that sounds like. Looks like you did real nice work putting them together too.
  18. DonBattles Audioholic

    DonBattles
    Joined:
    Jan 8, 2009
    Messages:
    145
    Likes Received:
    50
    I've gotta say those look pretty awesome but have read that they typically lack focus and neutrality. I've never listened for myself but would really love to one day. I cannot think of a single B&M in my area that would carry something like that. Maybe I'll have to look a bit more as I'm more curious than ever :)
  19. Angelo8888 Enthusiast

    Angelo8888
    Joined:
    Jan 26, 2009
    Messages:
    12
    Likes Received:
    1
    hello Hedwig

    the efficiency of the satellite is 109db/wm. The valve amp to drive the horns has 18w, but i never listen with more than a few watts.
    The basshorn has ~ 104db/wm, and is driven by a RAS 300 plate amp from Inosic, with 300Watts at 8ohms.
    The difference to the Avantgardes is big. While Avantgarde uses ABS plastic for their horns, and a metal frame, my horns are entirely hand made of MDF, in a very time consuming work. Actually, it took about ten month to finish the whole system. While i use rare, vintage and carefully selected alnico horn compression drivers, Avantgarde uses modern , off the shelf, easy commercially available drivers.
    Speaker building is not a pro work for me, i do it just as a hobby. I have taken orders in the past, and still do. But i discuss with each client extensively the wished configuration, and price depends on that. The price i ask is however far less than Avantgardes, and others, since the speakers are sold direct, and not through usual commercial channels, where the markup is finally as high as 500%, or even more. Just to give you a idea. For the present setup at home, 4 way full horn loaded system, i ask us$ 25.000,00.
    A comparable system like Cessaro Beta does go for as much as us$ 120.000,00
    Many horn speakers have a typical horn coloration, honk, and do not sound natural , specially in the midrange. My speakers are practically free of any coloration, since the LeCleach midrange horn with its spherical shape avoids distortion, the throat passage from the driver to the horn is very smooth, and the round mouth edge avoids diffraction to a high degree. Combined with the choosen compression driver, which is regarded as one of the best ever made, the result is a surprisingly natural, full bodied tone, texture and timbre of the instruments without coloration , highest dinamic contrast, exceptional wide and explosive dynamics with lowest distortion are the result, clean sound, lifelike dimensionality, stunning realism, and a perfect, holographic stereo image. What contributes to this result is also the very short signal path through the single ended valve amp, and the choice of a very simple first order crossover, with just one highest quality, german vintage oil in foil cap for the midrange and the tweeter.

    Angelo
    Last edited: Jan 28, 2009
  20. avliner Audioholic Chief

    avliner
    Joined:
    Apr 11, 2005
    Messages:
    886
    Likes Received:
    127
    Angelo,

    wow man, that's a real killer system indeed! Hat's off to you, Sir!
    BTW, are you going to use your system to power up the upcoming Brazilian carnival steel bands??

    Hey guys, why not planning a trip down to Brazil to enjoy the "samba" and also Angelo's awful power plant as wel?? :cool:;)

    Regards, Chuck
