GUTZ! Post your favorite amplifier and receiver inards

Seth=L

Seth=L

Audioholic Overlord
We're sorry, it looks you've decided to post without pictures of amplifier gutz. There are two solutions to solve this dilema.

1 - find some pictures or take some pictures of amplifier gutz and post them here!

2 - GTFO

Just kidding.:D

Seth=L

Seth=L

Audioholic Overlord

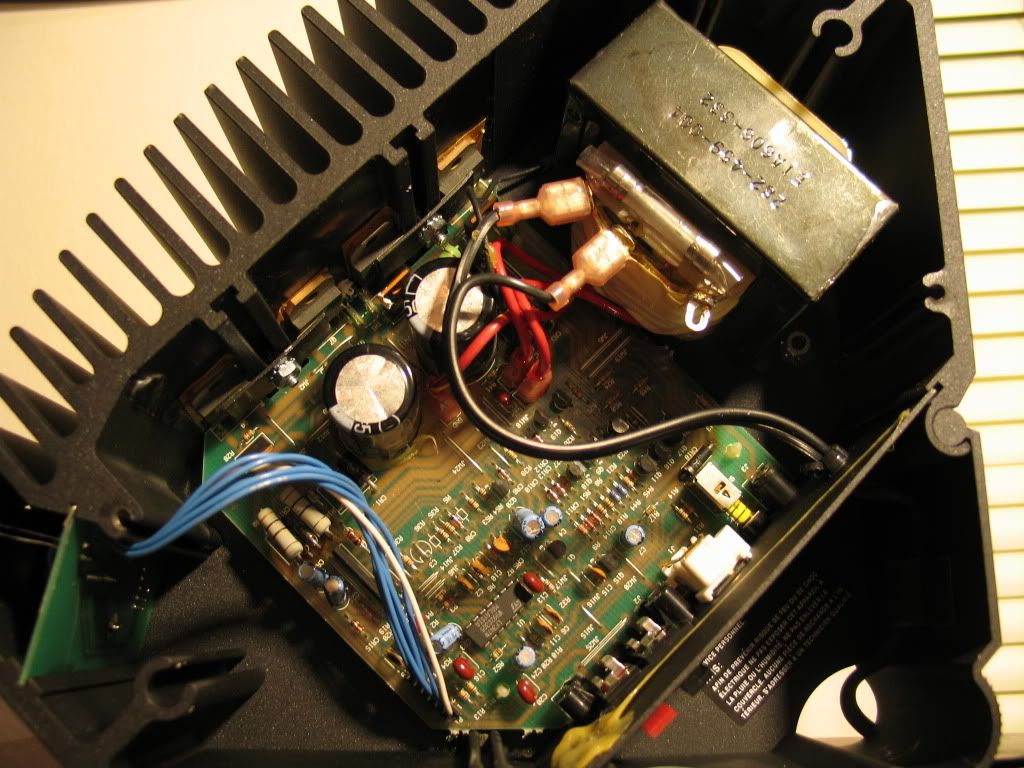

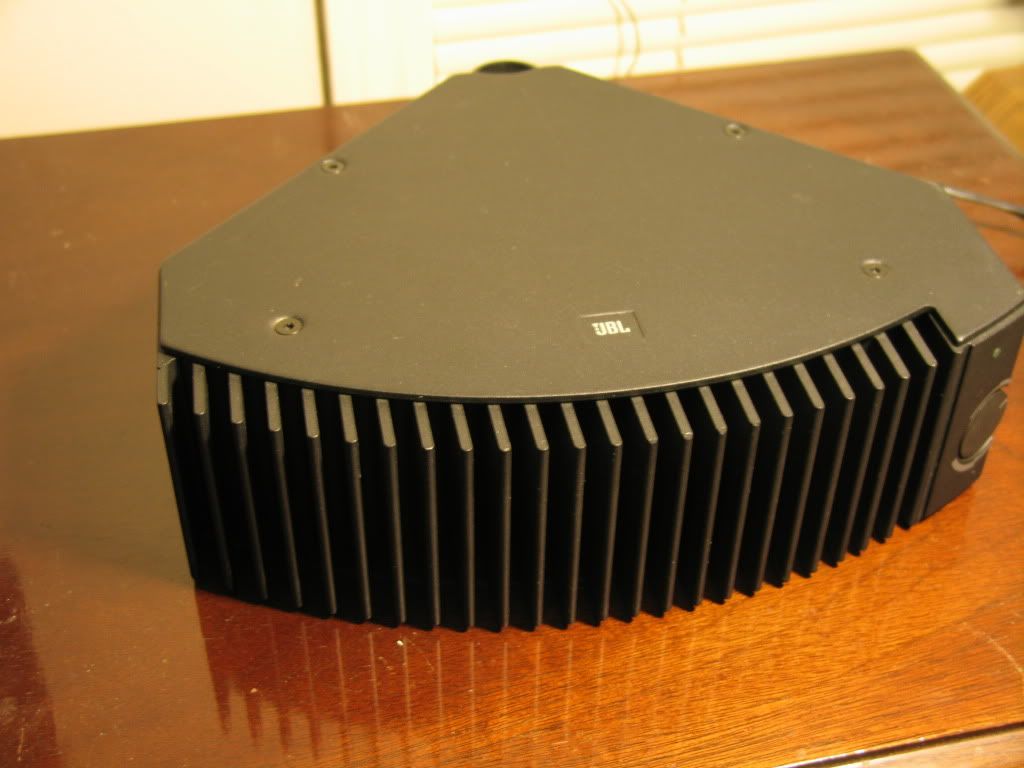

This is a JBL Power 50 compact amplifier. It was intended for use with a specific JBL system, how it is very practical for a wide array of speakers. It's very simple and clean making it a great amplifier to just have around. It's rated at 50 watts x 2 @ 6 ohms both channels driven and can be bridged to 80 watts @ 12 ohms, however it's probably pretty limited in compatibility with other speakers as it's apparently only supposed to be used with a 12 ohm load while bridged (silly).

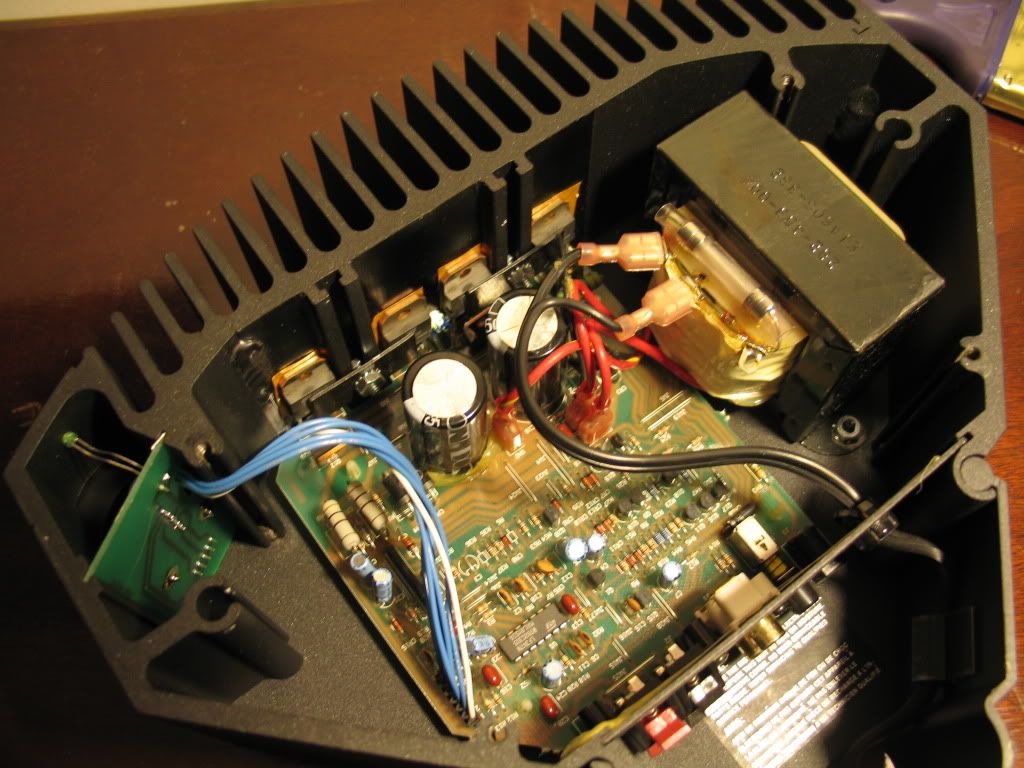

It sports a pair of 4,700uF 50v capacitors and a total of 4 discrete transistors mounted the the heaviest part of the amp, the heatsink. The top and bottom of the amp appear to be powder coated 1/8" steel plates, the whole amp just looks like a piece of cast iron, although I'm pretty sure the heatsink is still an aluminum alloy.

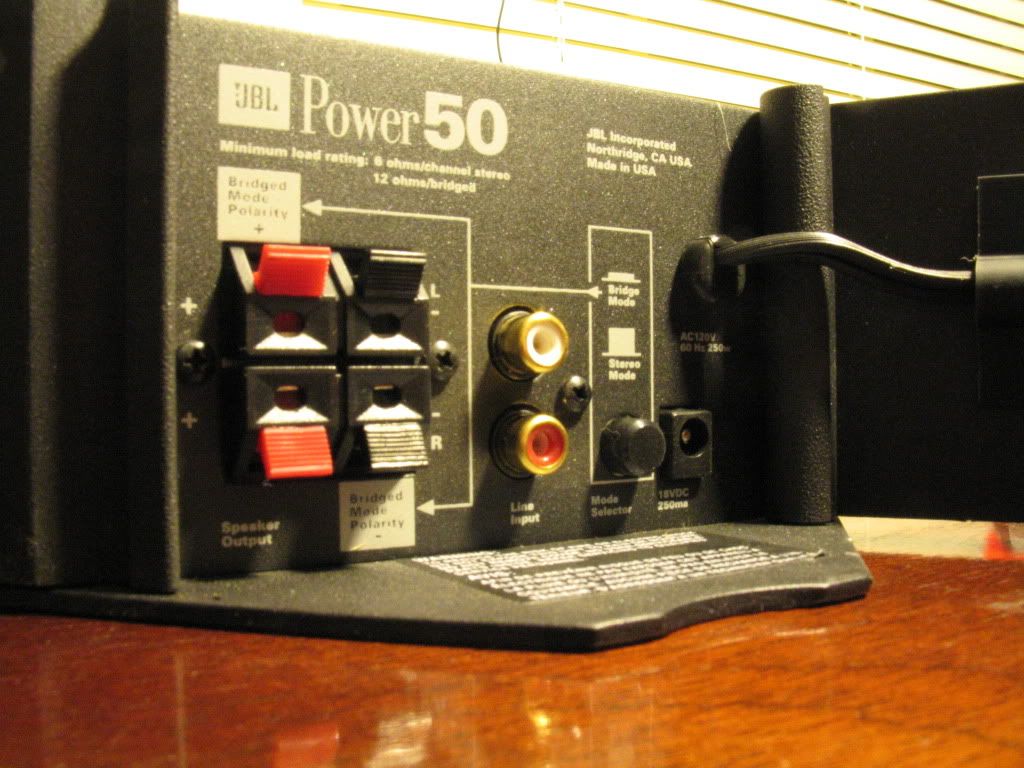

Along with the ability to be bridged the amplifier has a couple of other cool features which include an auto detect which seems to have an appropriate sensitivity (don't you hate it when your subwoofer auto shuts off and you miss the big kaboom?:D) It also has a gain control positioned on the front of the amp. You can place the amp on it's sides or flat. On the back there is a cable managing "door" that is slightly difficult to open but functions very well and doesn't scratch the finish on the amp.





yettitheman

yettitheman

Audioholic General

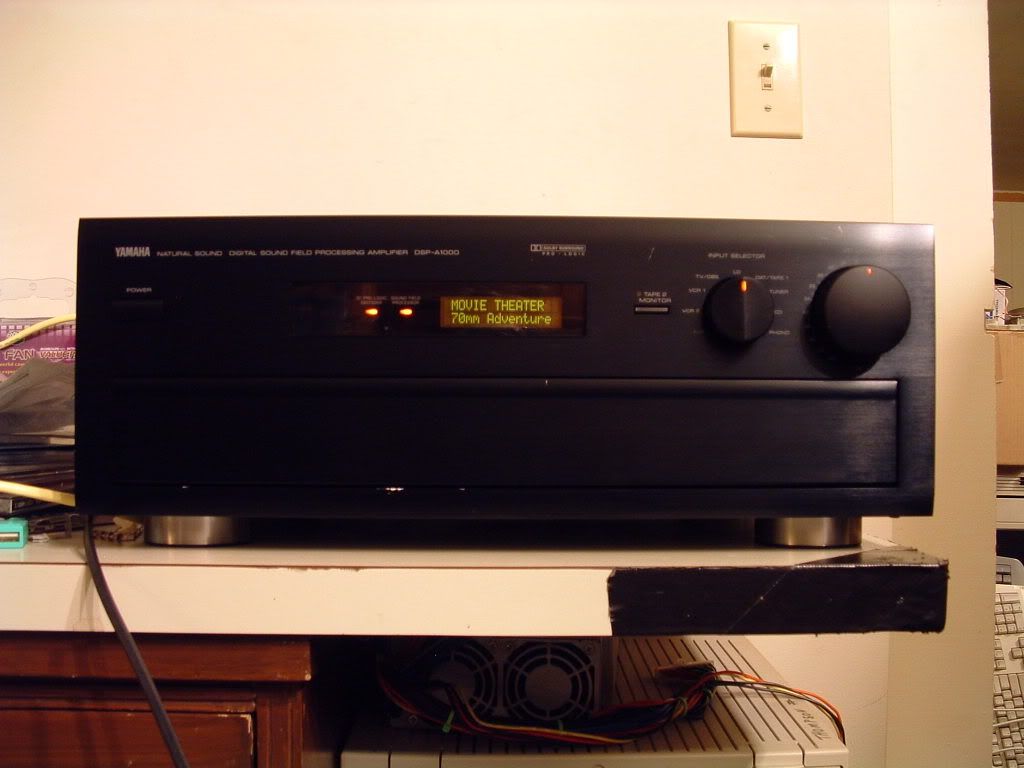

Yamaha P-2201 and DSP-A1000

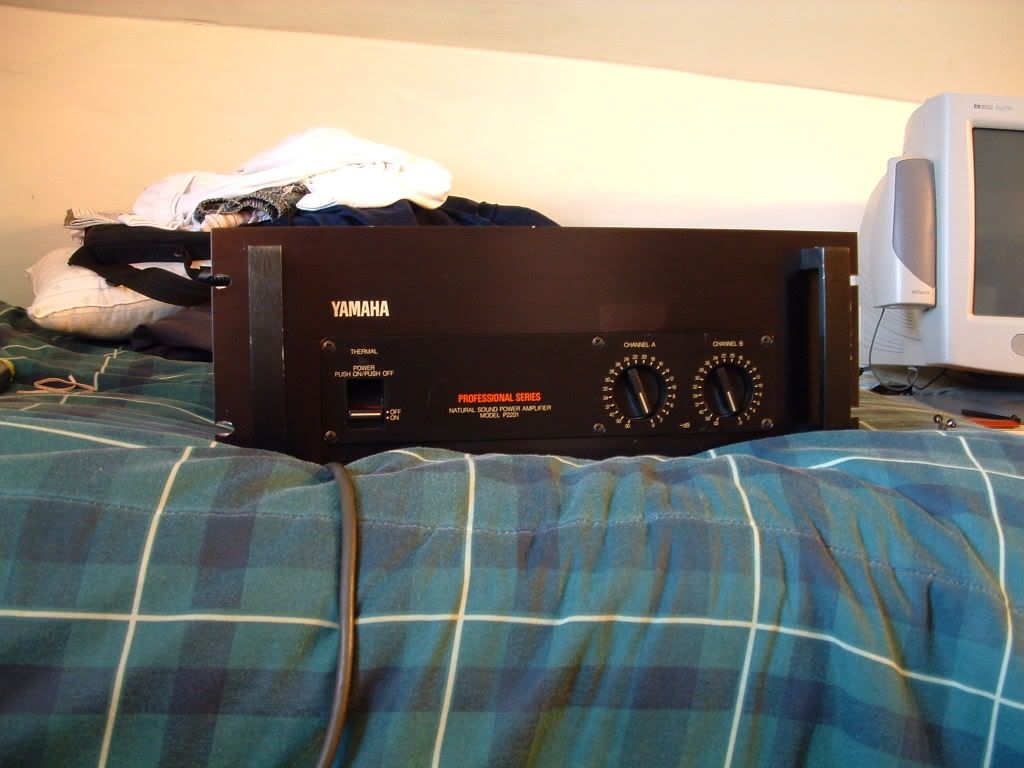

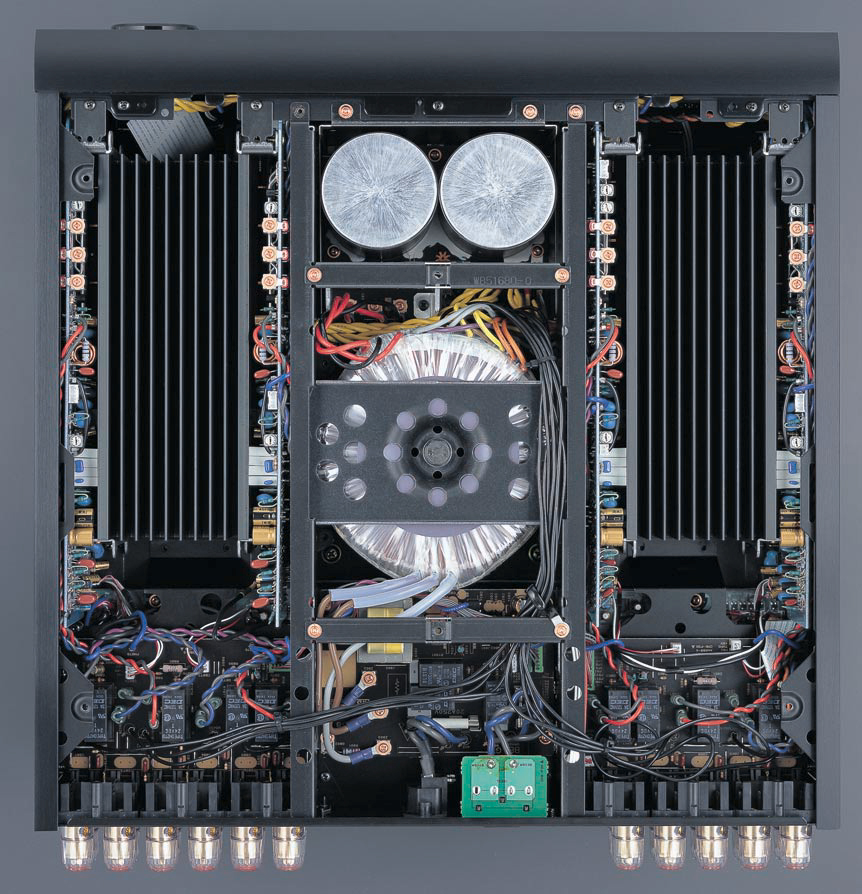

Here is a beast. Sorry Emotiva. :)

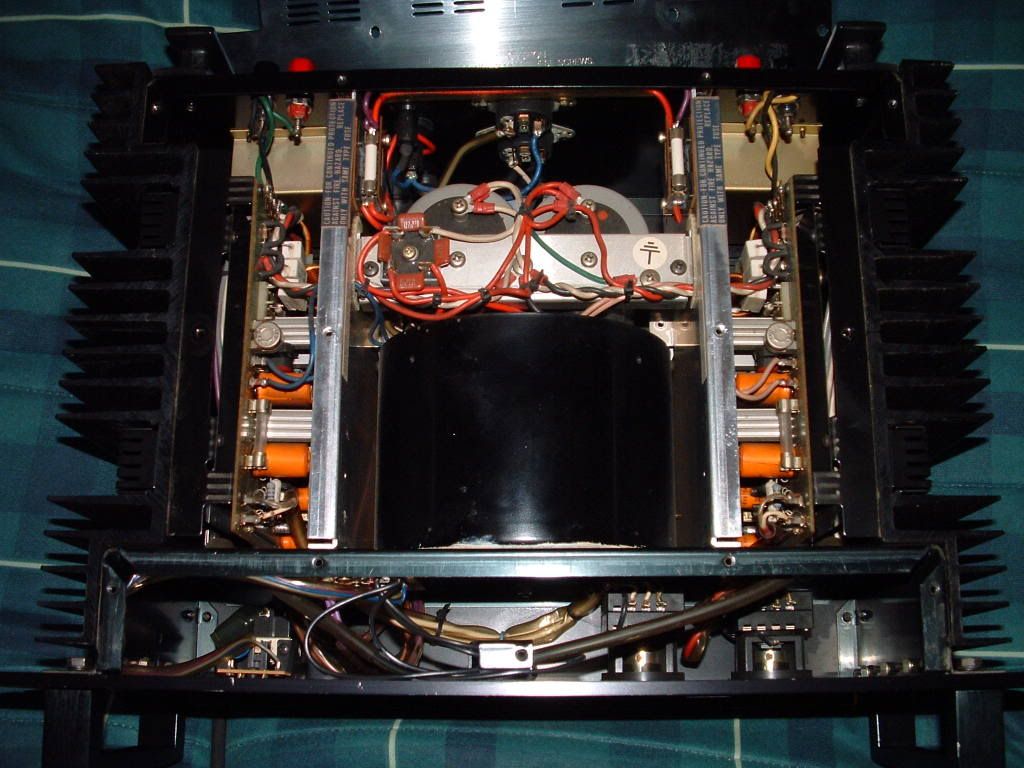

A lesser beast, but still potent:




nibhaz

nibhaz

Audioholic Chief
Took these photos a long time ago, but found them to be generally unexciting...

But I figured this cool thread needs a bump so...

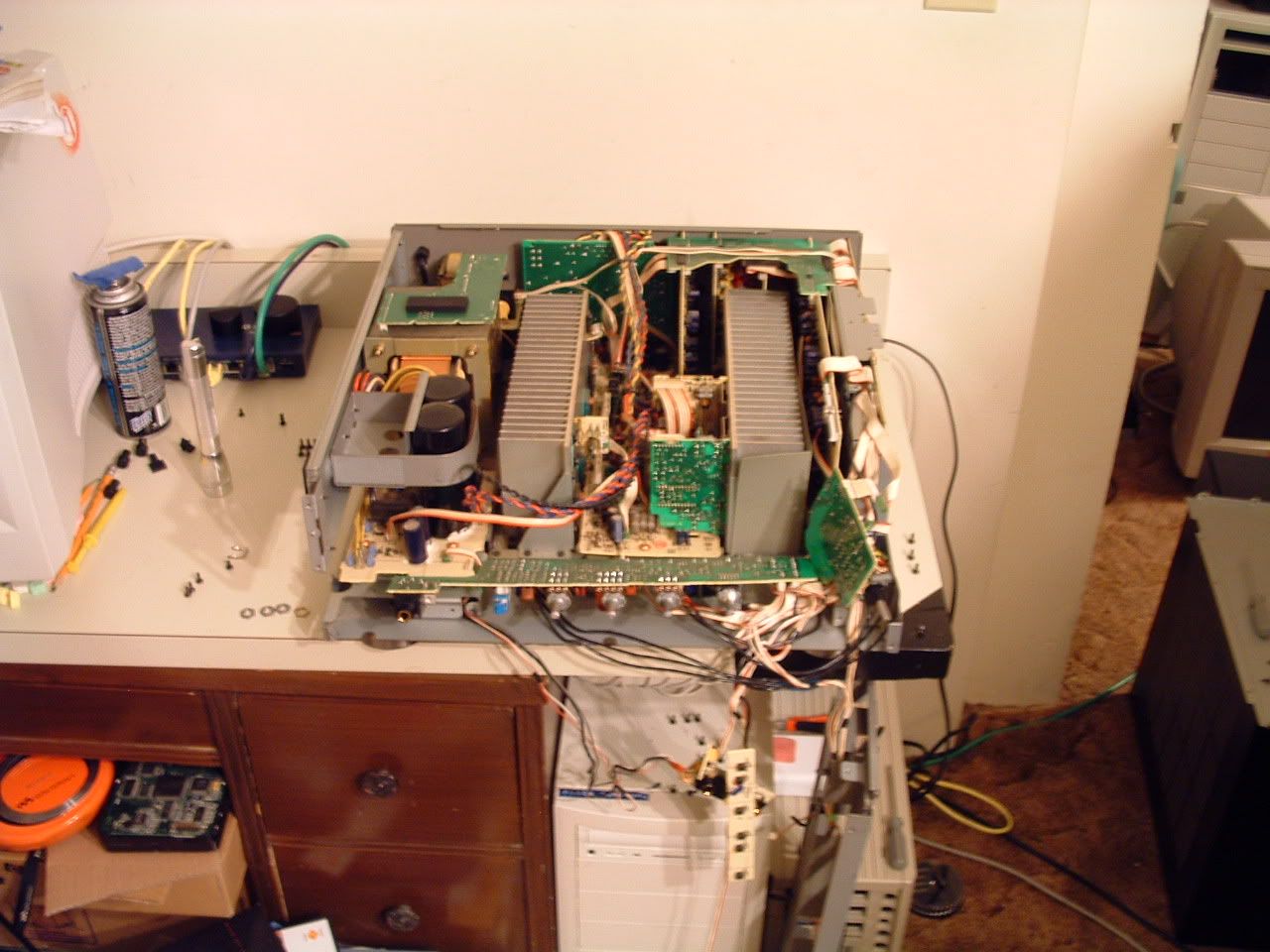

Internal Shots of Onkyo TX-SR800






C

cmstric

Junior Audioholic
I just picked up a Denon avr-1909 for $375 new im loving it but have to wait a few months for the new house to be finished to really test out the new setup

MidnightSensi

MidnightSensi

Audioholic Samurai
Cool thread.

Crest CD2000:



560W x 2 @ 8-ohms (2 & 4 ohms = 1000wpc)

For some reason, this thing powers stuff better than a lot of amps I've had with double the power rating. Maybe it's underrated for durability, but man, this thing is a workhorse and its efficient too, I can run a bunch of them on one 20A.

Last edited:
croseiv

croseiv

Audioholic Samurai
Onkyo PA-MC5500

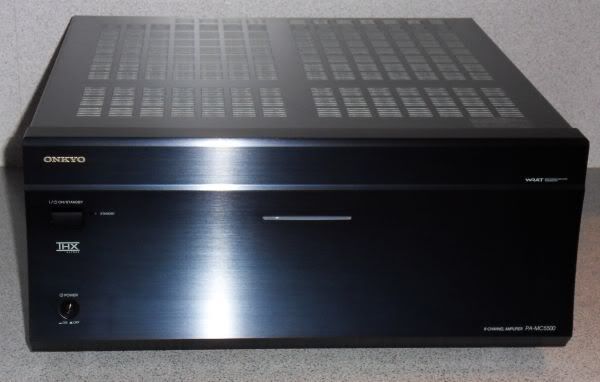

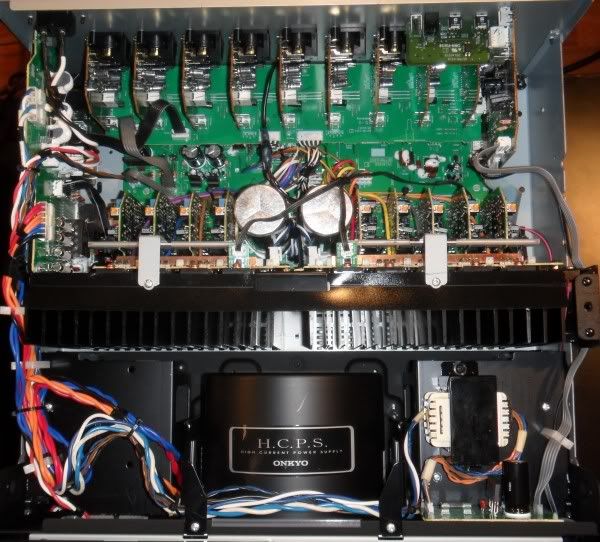

Here's a couple of shots of the latest onkyo 9ch amp (MSRP=$1699):





I'll take Emotiva for sure. I think the caps are a pair of 22000 uf (75v). Weight=~51 lbs
