CES 2015 AV Electronics, Speakers & Gadgets Technology Highlights

[Chu Gai]

I feel like this is an audiophile joke-become-reality:

Headphones that auto-correct your ears with built-in microphones: http://www.prnewswire.com/news-releases/akg-brings-the-worlds-first-headphone-with-personalized-sound-inspired-by-quincy-jones-300015368.html

Very stylish and I'll bet the logo on the sides is important for driving sales.



[Ironman1]

Can you stop by the Legacy Audio Room please



[TICA]

Can you stop by the Legacy Audio Room please

Legacy is not at CES this year. Maybe will catch a glimpse at CEDIA. Many of the audio companies are not at CES this year, including Yamaha and many others. Stay posted for our coverage on their new gear anyways!



[TICA]

Metra Home Theater Group

Check out the video on their new mounts:



[TICA]

Acapella Audio Arts - Germany at CES

The Campanile MK II Loudspeaker

Acapella Campanile is a sealed 3,5-way loudspeaker system. Four 25 cm woofers are working in separate chambers and cannot influence each other.
Fine adjustments to the ion tweeter and the midrange horn unit can be made in order to adapt the loudspeaker to every acoustical environment.

Technical data
Efficiency: 93 dB / W / m
Impedance: 8 Ohm
Load capacity: 200 W - 1000 W / 10 ms
Dimensions H x W x D: Body 2400 x 350 x 660 mm
Total (Horn) 2400 x 720 x 970 mm
Special 2280 x 720 x 970 mm
Weight: approx. 200 kg
Recommended power output of the amplifier: from 15 W



[TICA]

NEW Aerial Acoustics 7T Loudspeakers

Multiple layers of curved, stressed, and laminated MDF provide non-resonant behavior unmatched in conventional flat panel construction. Seven full cross section braces remove any remaining subtle coloration. The resulting labyrinthine structure is virtually inert.

Specially compounded Papyrus forms the stiff but precisely damped midrange cone. This driver is isolated in a separate, wool-filled chamber. The woofer cones are a rigid, damped bilaminate composite. Both driver types have cast magnesium frames, large magnets and long linear excursions. The soft ring-dome tweeter has large dual magnets, a damped chamber, and a copper pole sleeve.

Seamless amplitude and phase integration is provided by precision networks using 21 high-quality components including polypropylene film capacitors and low-oxygen copper air-core coils. High current nickel-steel cores are used in the bass. Separate glass-epoxy boards are employed for the bass and midrange/treble sections. Silver solder and Teflon® insulated high-purity copper wire are used throughout.

Specifications »
Frequency Response: 28Hz to 25kHz ±2dB, -6dB at 23Hz
Dispersion: 30Hz to 15kHz +0, -3dB from axial response 45 degree horizontal measurement window
Sensitivity: 89dB for 2.83 volts at 1 meter on axis
Impedance: 4Ω nominal, 3Ω minimum, low reactance
Power Requirements: 25 watts minimum, 100 or more recommended



[TICA]

ANGEL SOUND LAB USA
AS 600S Tweeter Key Feature

The Revelator tweeter series consist of the revolutionary ring radiator design, which put an end to some of the design trade-offs in dome designs. The ring radiator still offers unrivalled performance. Additional enhancements have been made to reduce distortion and power compression, such as large neodymium magnet systems for high sensitivity, and a careful design to optimize airflow in the chambers.



[TICA]

Analogix Semiconductor -SlimPort

SlimPort is a solution supporting data synchronization and connectivity between a mobile device and any external display. SlimPort products offer the unique ability to connect with all leading display types (HDMI, DisplayPort, DVI, and VGA) over a single cable. They also offer high-bandwidth 3D 1080p video playback, low power consumption, and compatibility with the Mobility DisplayPort (MyDP) standard, at video resolutions up to 4K. Whether you’re at home, on the road, or in the office, plug in your SlimPort-enabled device and you’ll be ready to start gaming, give a presentation, or watch your favorite movie or sports team – on any size screen.



[gene]

Can you stop by the Legacy Audio Room please

Here is some Legacy coverage from AXPONA for you to dine on.

Legacy Audio Model: V Speaker System with Wavelet

Pricing: $49,500 including Wavelet

• V is a frequency and time domain optimized 4-way directivity controlled array.
• Tweeter: Dual 4” AMT ribbons configured in post convergent array
• Upper Midrange: Dual 6” Curvilinear with phase plug configured in dipolar array
• Midrange/Midbass: Dual 14” Carbon/pulp, neodymium motor, cast frame, dipolar pattern
• Bass: 12” Aluminum diaphragm, Aura neodymium motor, sealed sub-enclosure
• Subwoofer: 12” Aluminum very low frequency radiator driving (3) 10” mass loaded pneumatic radiators
• Low Freq. Alignment: Compound B6, B2 handing up to dipole
• Freq. Response: 16Hz-30kHz
• Impedance: 4 Ohm upper range
• Sensitivity: 98 dB @ 2.83 Volts/1m in room
• Crossover: 80 HZ, 400 Hz, 3kHz
• Cabinet Dims: 72” x 18.75” x 19”

The system also includes 2800 Watts of the latest generation ICEpower® amplification

Wavelet is the solution for many audiophile systems. It is a preamp, a four-way crossover with time alignment, a complete speaker and room resonance correction system, and a high-end DAC with apodizing ability.

Wavelet is currently available exclusively with the V loudspeaker system, but will be available for individual sale later in 2015.

You can view a Video Preview on their website here:

http://legacyaudio.com/backstage/blog/watch-legacy-v-speaker-preview/

Product Page: http://legacyaudio.com/products/view/v/



[gene]

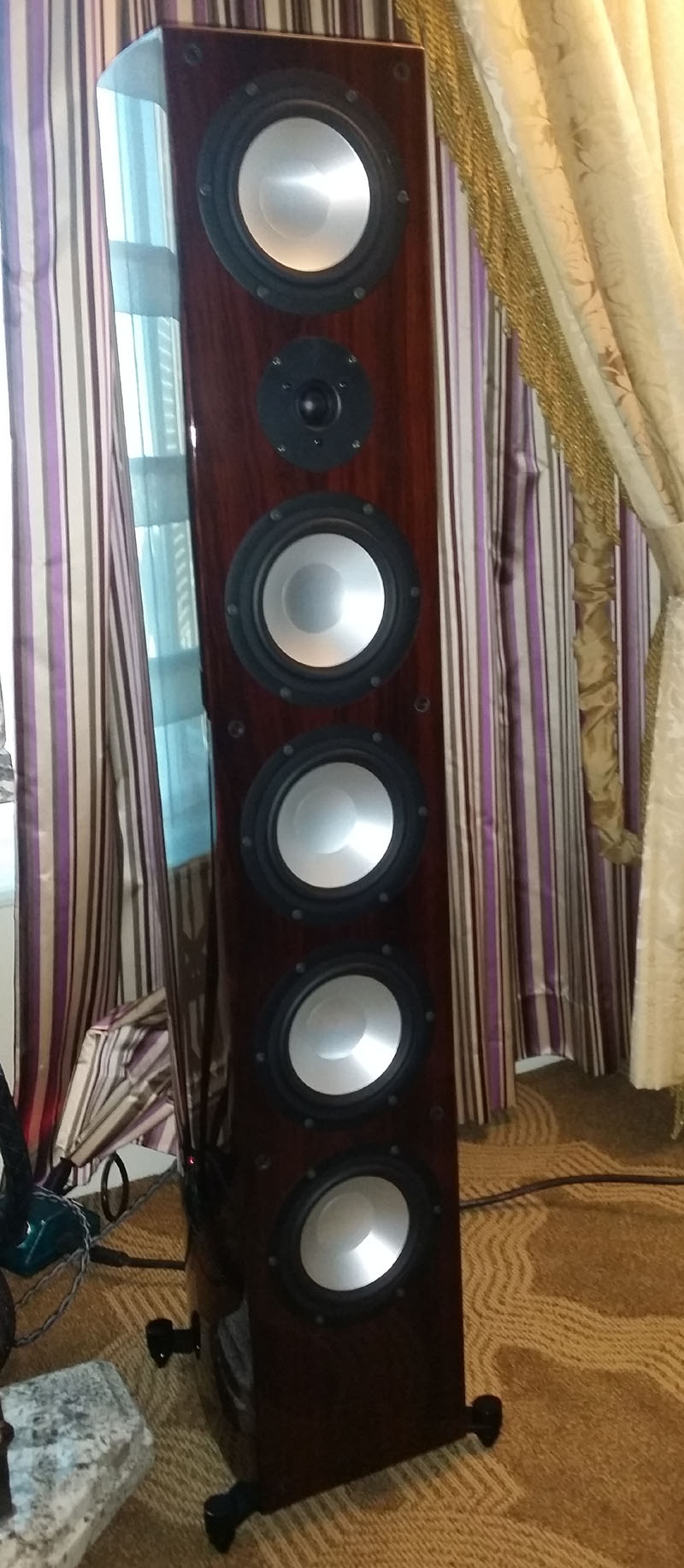

More info on New RBH SX-V Loudspeakers

Their new SV-6500 towers will retail for $2500/pair! Same great drivers found in their SX line but with upgraded cosmetics and some super agresive pricing.



[gene]

New Oppo Headphones and Preamp!

The HA-2 is a portable headphone amplifier and DAC with built-in battery. It is designed for use with a mobile device (iPhone, Android phone, or even Sony's Walkman) or laptop computer. Its USB DAC feature provides a performance improvement to the portable device's audio playback. The headphone amplification gives the user more power to drive their headphones than what a typical mobile device can offer.

The PM-3 uses a planar magnetic driver that is basically the same design as that in their PM-1/2 but smaller. It is closed-back and portable so users can take it on the road.


Product availability targeted by end of Q1, and the price will be $299 for the HA-2 and $399 for the PM-3.



[nogaro]

More info on New RBH SX-V Loudspeakers

Their new SV-6500 towers will retail for $2500/pair! Same great drivers found in their SX line but with upgraded cosmetics and some super agresive pricing.
View attachment 14565

Is that 5 6.5" drivers? Kind of like a cross between the SX-8300 and SX-6300 with the body of an E55Ti?



[gene]

Is that 5 6.5" drivers? Kind of like a cross between the SX-8300 and SX-6300 with the body of an E55Ti?

Yes all 6.5" and good analogy though the cabinet is beefier than EMP.



[nogaro]

Better drivers and a beefier cabinet - very tempting indeed! Did you get to hear it? Will these be sold online or only through dealers?



[gene]

Better drivers and a beefier cabinet - very tempting indeed! Did you get to hear it? Will these be sold online or only through dealers?

Not yet since I'm not there

They will be sold online!



[KEW]

JBL Arena series loudspeakers

• Six new speaker models for flexible system configurations
• High Definition Imaging (HDI) waveguide design
• Computer-optimized driver positioning and crossover network integration
• Contemporary cabinet shape with angled side and top panels provide a sophisticated, modern look
• Proven acoustic superiority through rigorous testing and real-world evaluation
• Available in black and white finishes with minimalist grilles and brushed metal trims
• Designed and engineered in Northridge, California

Models

• JBL Arena 120 - 2-way 5.5" Bookshelf / Surround Loudspeaker
• JBL Arena 130 - 2-way 7" Bookshelf Loudspeaker
• JBL Arena 170 - 2-way 7" Floorstanding Loudspeaker
• JBL Arena 180 - 2-way Dual 7" Floorstanding Loudspeaker
• JBL Arena 125C - 2-way Dual 5.5" Center Channel Loudspeaker
• JBL SUB 100P - 10" 100W Powered Subwoofer

JBL Arena 120 (MSRP $199.95/PR), JBL Arena 130 (MSRP $299.95/PR), JBL Arena 170 (MSRP$499.95/PR), JBL Arena 180 (MSRP $699.95PR), JBL Arena 125C (MSRP $199.95) and JBL Arena SUB 100P (MSRP $299.95).

Out of their entire speaker line-up, JBL chooses to showcase speakers running from $200 to $700/pair.
Hmmm, might this be their response to the AJ Pioneers and the Sony Core Series?
I'm hoping Pioneer has redirected attention to the low-end such that more and more companies compete for the value conscious segment.
We always hear about trickle down technology, but as designers figure out ways to work around tight budgets as AJ did, I could see some potential for trickle up!



[TICA]

Goliath XD Suwboofer

Legacy did not attend CES this year, but they were happy to share one of their new subs:

The XLR input feeds a built in 1,000 watt amplifier. Recommended system controller/crossover is Legacy's Wavelaunch processor.

Frequency range 12- 150 Hz with room correction and external crossover.

(2) 15" subwoofer drivers with Silver/Graphite/Rohacell composite diaphragm and vented motor structure
lead wires are stitched into the spider to prevent wear and vibration.
- 3 layer stacked magnet structure
- 3 inch voice-coil
- ultra heavy duty cast frame
- rigid aluminum dustcaps
- gold plated terminals

(2) 15" custom weighted passive radiators to provide deepest extension without port noise

(1) 1,000 watt ultra efficient ICEpower® amplifier module with auto-on and 'green' power saving mode

- Enclosure: 2.25" thick front baffle and top dark granite inlay on top, bracing and sidewalls are 1.125"



[TICA]

RIVA Electronics

Turbo X’s truly immersive sound comes from RIVA's proprietary ADX Trillium audio technology that is seamlessly integrated with seven custom ADX transducers for best-in-class audio. The sophisticated design is perfect for indoor and outdoor use and features 45 watts RMS of power, a 26+ hour battery that can also charge your phone, tablet or wearable device, crystal clear speakerphone, hand proximity button illumination, and much more. Color of black or white/silver available.
MSRP $349.99



[nogaro]

Not yet since I'm not there

They will be sold online!

Damn! With all your posts, I thought you were there. I was there last year but couldn't make it there this time.
Online is good



[Karen Molinares]

Out of their entire speaker line-up, JBL chooses to showcase speakers running from $200 to $700/pair.
Hmmm, might this be their response to the AJ Pioneers and the Sony Core Series?
I'm hoping Pioneer has redirected attention to the low-end such that more and more companies compete for the value conscious segment.
We always hear about trickle down technology, but as designers figure out ways to work around tight budgets as AJ did, I could see some potential for trickle up!

Harman was there with Revel as well I believe.
