AsciLab C6B Looks Good.....No, they Look Great !

[bears_t2]

You're braver than me. I surely wouldn't be soldering and $1100 speaker... They'd be going back 1st thing... Let them mess it up instead of me.



[Matt34]

You're braver than me. I surely wouldn't be soldering and $1100 speaker... They'd be going back 1st thing... Let them mess it up instead of me.

Yeah, I got approval from Ascilabs and they took responsibility if I messed anything up. Gave me in-store credit for my troubles I'm going to use on their center channel when it releases.



[Happy Joe]

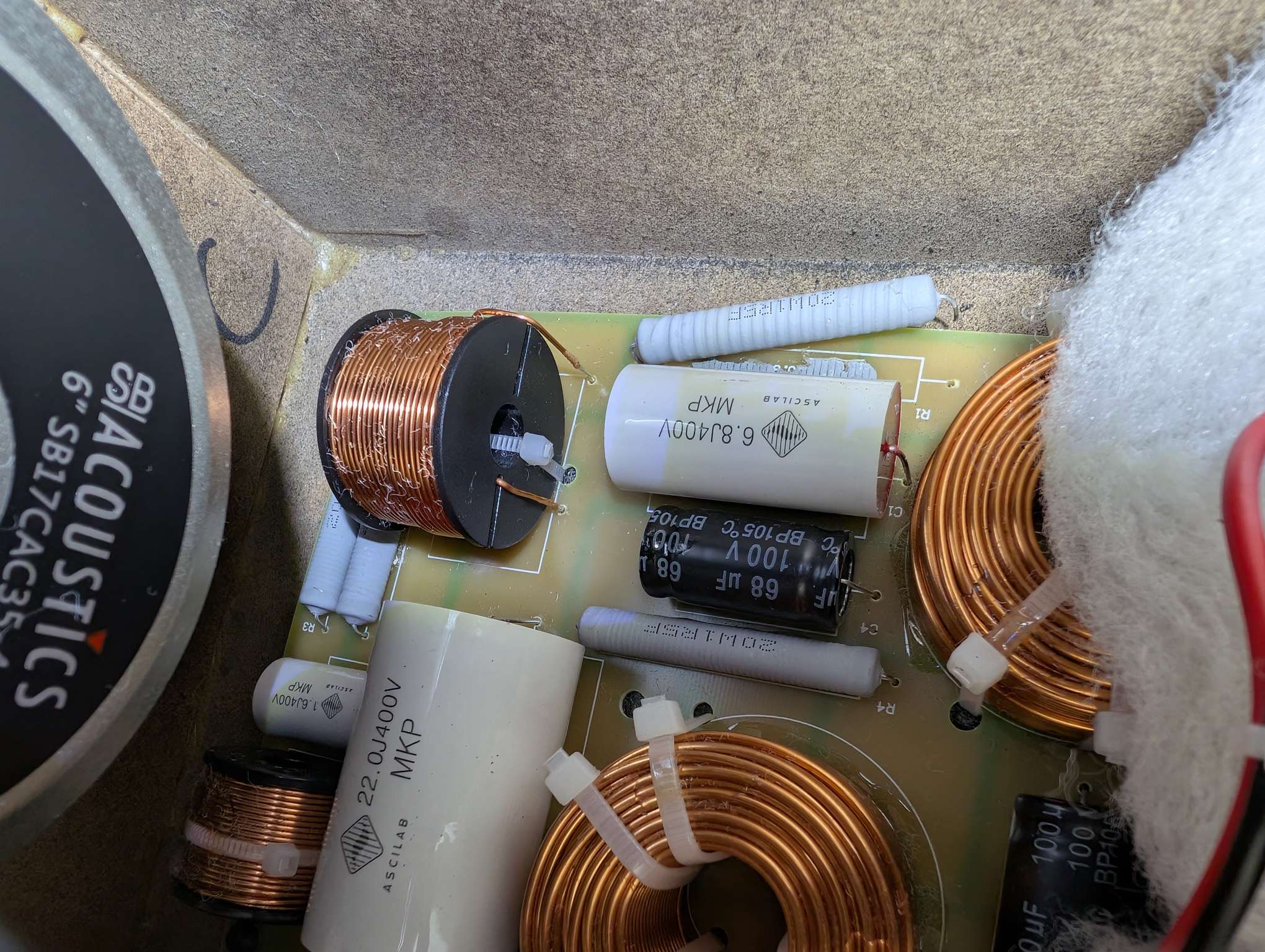

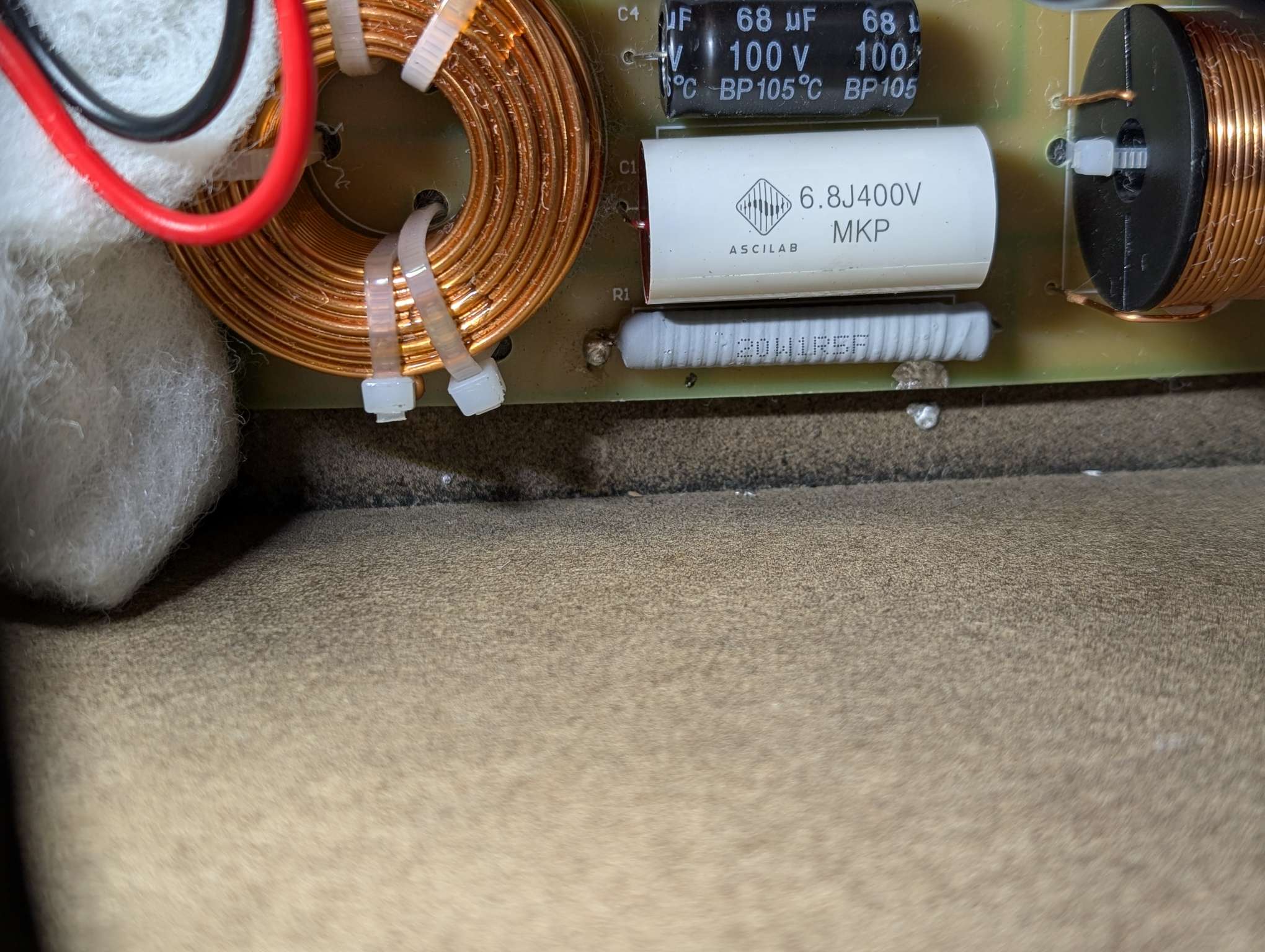

Had a tweeter with no output, troubleshoot with the manufacturer and found a resistor got knocked loose. Thankfully removing the passive radiator gave me enough room to get the soldering gun in there.

Colorado Springs

View attachment 73694View attachment 73693

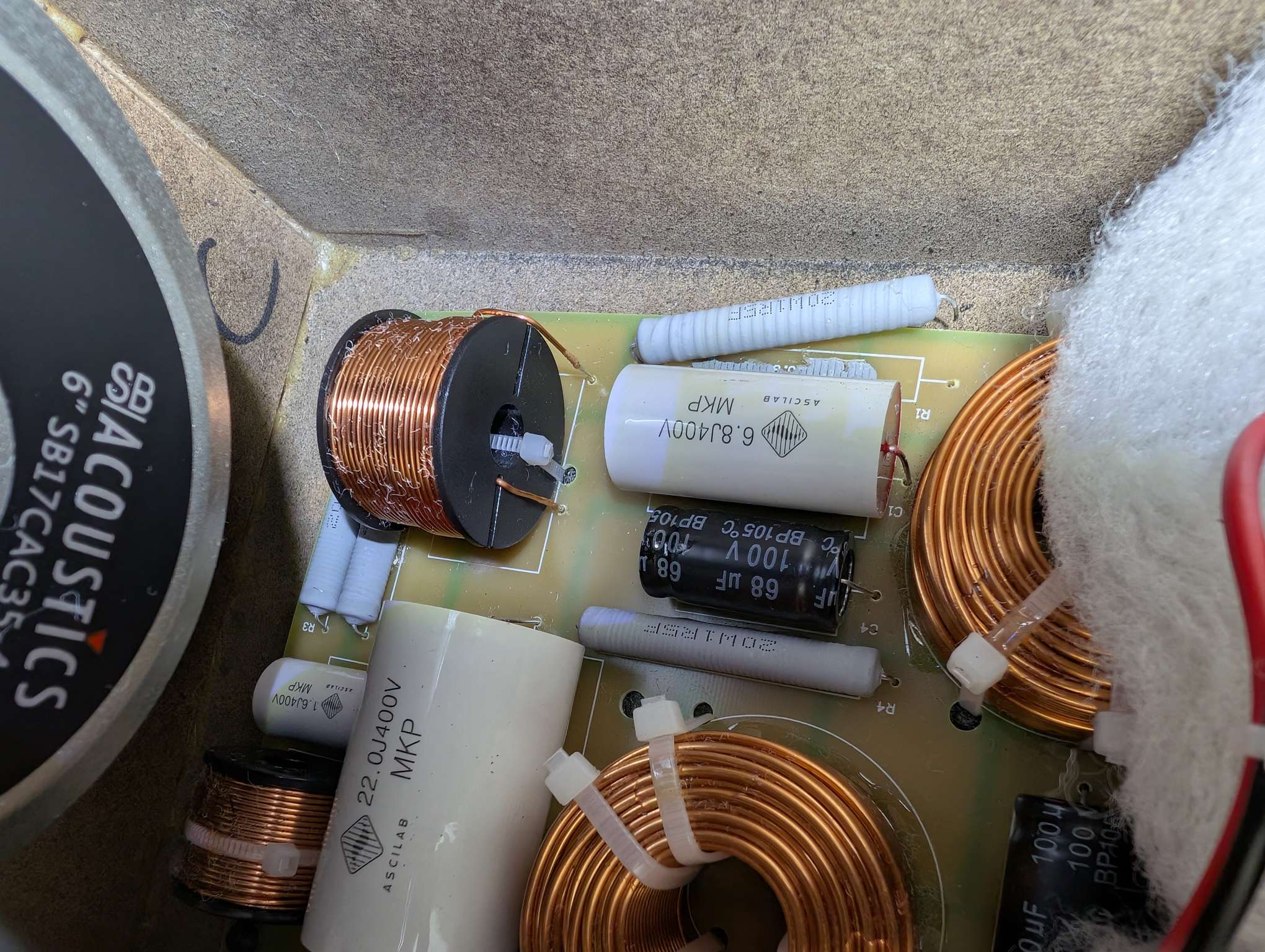

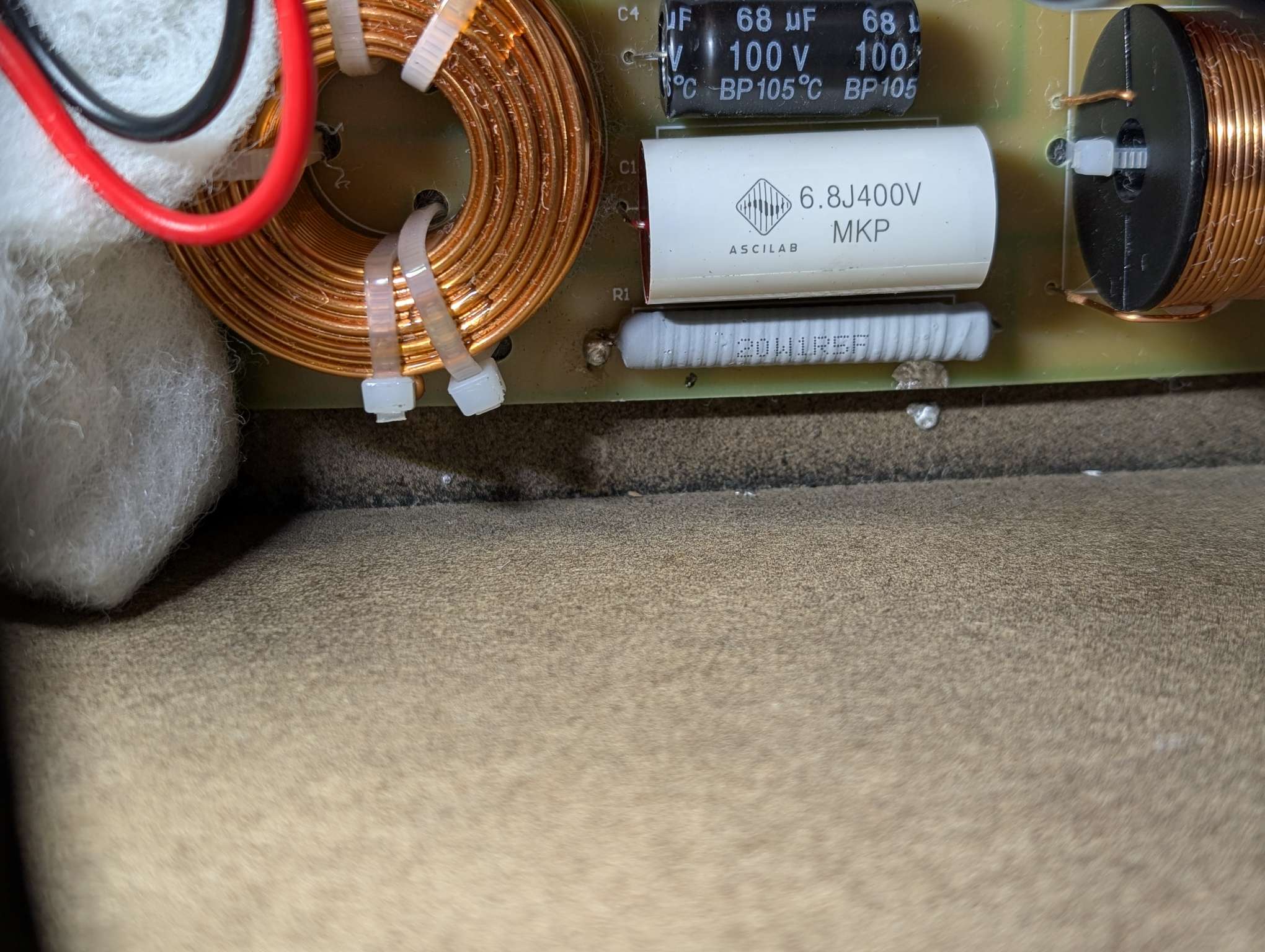

The pic shows that the holes in the circuit board are not filled with solder (to be expected on inexpensive single sided circuit boards (without plated through holes), or that the leads did not fully wet; indicating a solder wave or flux issue; or operator inattention during manufacture; there is a fair to good chance that you will, eventually, have to remove the crossover circuit board and re-flux and re-solder each connection on the circuit/solder side, for long term reliability...

Enjoy!



[Matt34]

The pic shows that the holes in the circuit board are not filled with solder (to be expected on inexpensive single sided circuit boards (without plated through holes), or that the leads did not fully wet; indicating a solder wave or flux issue; or operator inattention during manufacture; there is a fair to good chance that you will, eventually, have to remove the crossover circuit board and re-flux and re-solder each connection on the circuit/solder side, for long term reliability...

Enjoy!

Hard to say not being able to see the underside of the board. I would give them the benefit of the doubt they know how to assemble an xover. I blame fed ex's subpar handling of the package if anything



[zimtheinvader]

The pic shows that the holes in the circuit board are not filled with solder (to be expected on inexpensive single sided circuit boards (without plated through holes), or that the leads did not fully wet; indicating a solder wave or flux issue; or operator inattention during manufacture; there is a fair to good chance that you will, eventually, have to remove the crossover circuit board and re-flux and re-solder each connection on the circuit/solder side, for long term reliability...

Enjoy!

I'm a bit suspicious of the original solder connection too. I can't imagine the dropping force that would be required for the weight of the resistor to break a solid solder connection. I can't tell for sure but it looks a bit like the lead was cut short, so not enough was poking through for a good connection, or when the extra length of lead was cut after soldering they also cut through the solder (I've done that).

Even then, from the resistor coating left on the circuit board it appears that it was also glued in place. Which again begs the question of how could the box be impacted hard enough to jar that loose without other things inside breaking? I just wouldn't think that the resistor would have enough mass to turn an impact into the force needed for breaking the solder connection and the glue to the board.

It would almost seem like it was damaged during assembly, possibly pushed back into place after and then jiggled free when jolted in transit.



[Tankini]

Hard to say not being able to see the underside of the board. I would give them the benefit of the doubt they know how to assemble an xover. I blame fed ex's subpar handling of the package if anything

Oh yeah, definitely thrown around during shipment. But with that said, could be a blessing in disguise. May have had intermittent dropouts. The kind that drives one crazy trying to locate, isolate.

Funny you posted this up, photo. I always pull XO out, to do a look see on new speakers I received. For the reason you found on yours. I also look at the speaker connector's to each driver, make sure they're properly secure and the right connector sizes.



[JTongret]

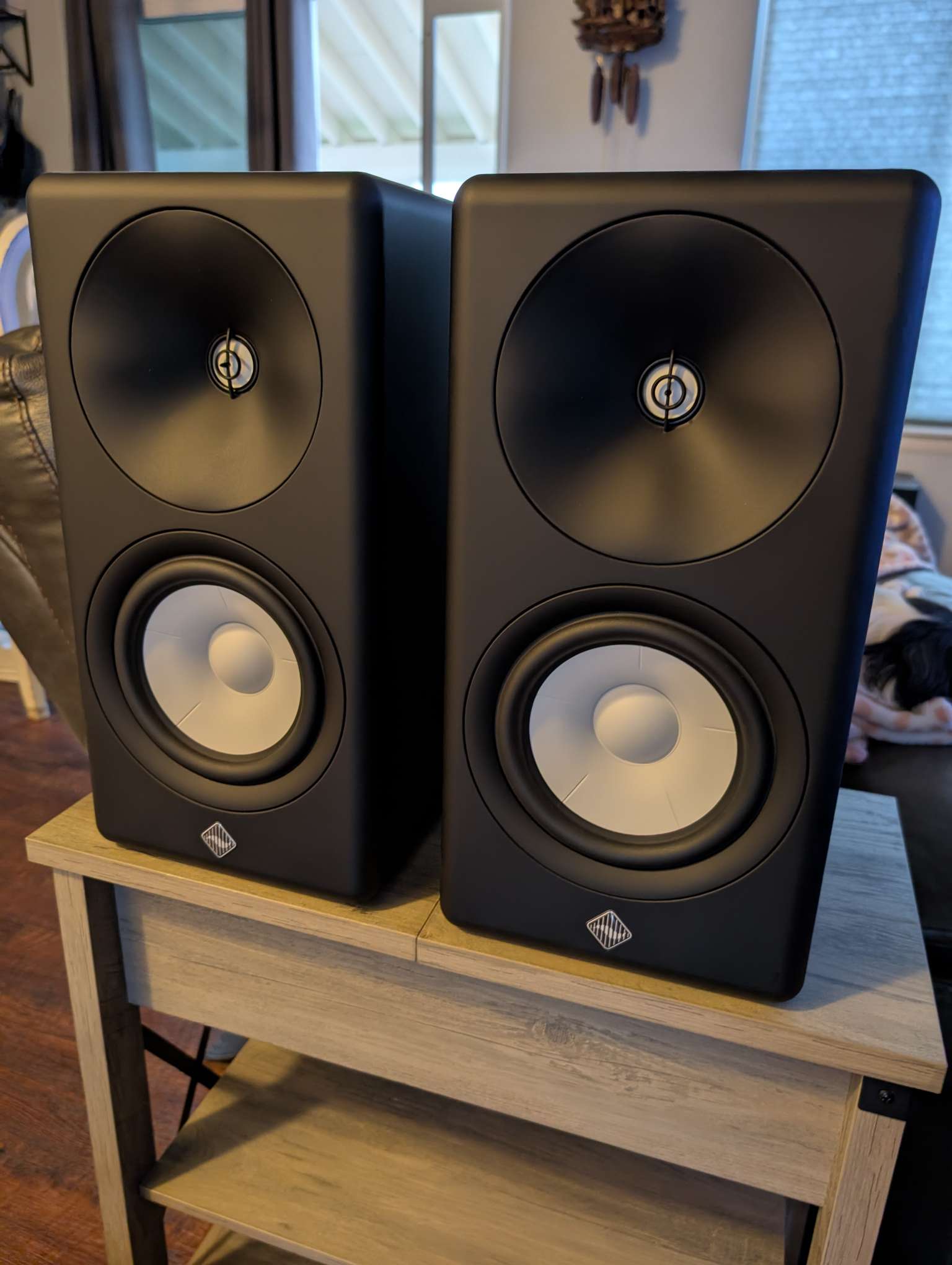

They arrived! 5 days to get from SK to Colorado, not bad.
View attachment 73691

May I ask what the customs experience was like for you? 5 days is super fast so I'm guessing the package wasn't held up. Did they submit a bill to you for tariff tax, and if so how much did it cost you? Thanks in advance for any insight.



[isolar8001]

Very favorable review from Amir...they must be really good speakers !
Slightly different model though...C6B has a better woofer apparently, but if you are using a sub as most do it shouldn't matter....835 a pair includes shipping.

[AsciLab] F6B Passive (Pair) - Ascilab

Pre order now

ascilab.cafe24.com

AsciLab F6B Bookshelf Speaker Review

This is a review, listening tests and detailed measurements of the AsciLab F6B stand mount speaker. It was sent to me by the company and costs US $835 for a pair (shipping included). In black, the F6B seems formal with a very clean design. It feels solid with sense of precision. Compared to...

www.audiosciencereview.com



[Matt34]

May I ask what the customs experience was like for you? 5 days is super fast so I'm guessing the package wasn't held up. Did they submit a bill to you for tariff tax, and if so how much did it cost you? Thanks in advance for any insight.

No additional fees or charges. $200 shipping which they have now included to the listed price on their website.



[Matt34]

Very favorable review from Amir also...they must be really good speakers !
Slightly different model though...C6B has a better woofer apparently

AsciLab F6B Bookshelf Speaker Review

This is a review, listening tests and detailed measurements of the AsciLab F6B stand mount speaker. It was sent to me by the company and costs US $835 for a pair (shipping included). In black, the F6B seems formal with a very clean design. It feels solid with sense of precision. Compared to...

www.audiosciencereview.com

C6b woofer, tweeter and crossover are different from the F6b.



[isolar8001]

C6b woofer, tweeter and crossover are different from the F6b.

Thanks...I see now on the ASR thread more clearly what the differences are....

How to Speak AsciLAB :-

S= Signature model, using all Purifi drivers.

A= Purifi Aluminium woofer and ceramic-aluminium tweeter.

C= Ceramic Aluminium woofer and a ceramic-aluminium tweeter

F= Fibre woofer and an aluminium tweeter.

B=Bookshelf

C=Cardioid

The middle number represents the diameter of the main driver in inches.

The final letter denotes the type of enclosure.

BX8C and BX10C are the Sub bass cardioid extension modules.



[zimtheinvader]

No additional fees or charges. $200 shipping which they have now included to the listed price on their website.

I've seen a few people that got a bill in the mail later.

I'm curious what the process is for various carriers and if they are consistent. It must stink to now be in the collections business trying to get money to cover tariffs they've already paid.



[ski2xblack]

@Matt34 Now that you've patched them up, what are your listening impressions?



[Matt34]

I have the Revel F36 on hand so I can kinda reference it off those. I find the C6B overall a superior speaker to the F36, in my room, in every aspect except in overall SPL and dynamics.

I currently have the C6B off the front wall 11" and 12 ft for MLP, toed in 15-20 degrees and the imaging is some of the best I've had in this room.

There is no dip in the mid range for vocals that is so prevalent in most speakers. it takes your ears a bit to get used to it. Definitely picking up details in familiar music that I missed of forgot about. I think it also helps for lower leveling listening despite it being a high impedance/low efficiency speaker.

If I do keep them long term, I'm going to mess with a higher crossover to my Rythmik subs (100-125hz) as I feel mid bass is lacking for my tastes in movies and some music, but I think that is to be expected with most inefficient 6.5" bookshelves. I also think most situations beyond near-field you will need an external amp for these.

I have some Super Lintons showing up this week so it will be interesting to compare those as well.
