Yamaha RX-V565

[WetWorks]

Hello:

My vintage receiver has sadly bit the dust. Last seen being parted out by a friend.

In its place I have a Yamaha RX-V565.

My problem is that I can't figure out how to run the red/white wires from the receiver so that I can connect my CD player and Cassette Deck.

If anyone can offer me some guidance, it would be appreciated.

Regards,


Gord



[lovinthehd]

Use any but phono rca inputs....



[Trebdp83]

Use the AUDIO 1/2 analog inputs.



[fmw]

If you select the input and sound emits from your speakers, I would say you plugged things in properly.



[WetWorks]

If you select the input and sound emits from your speakers, I would say you plugged things in properly.



[WetWorks]

Use the AUDIO 1/2 analog inputs.

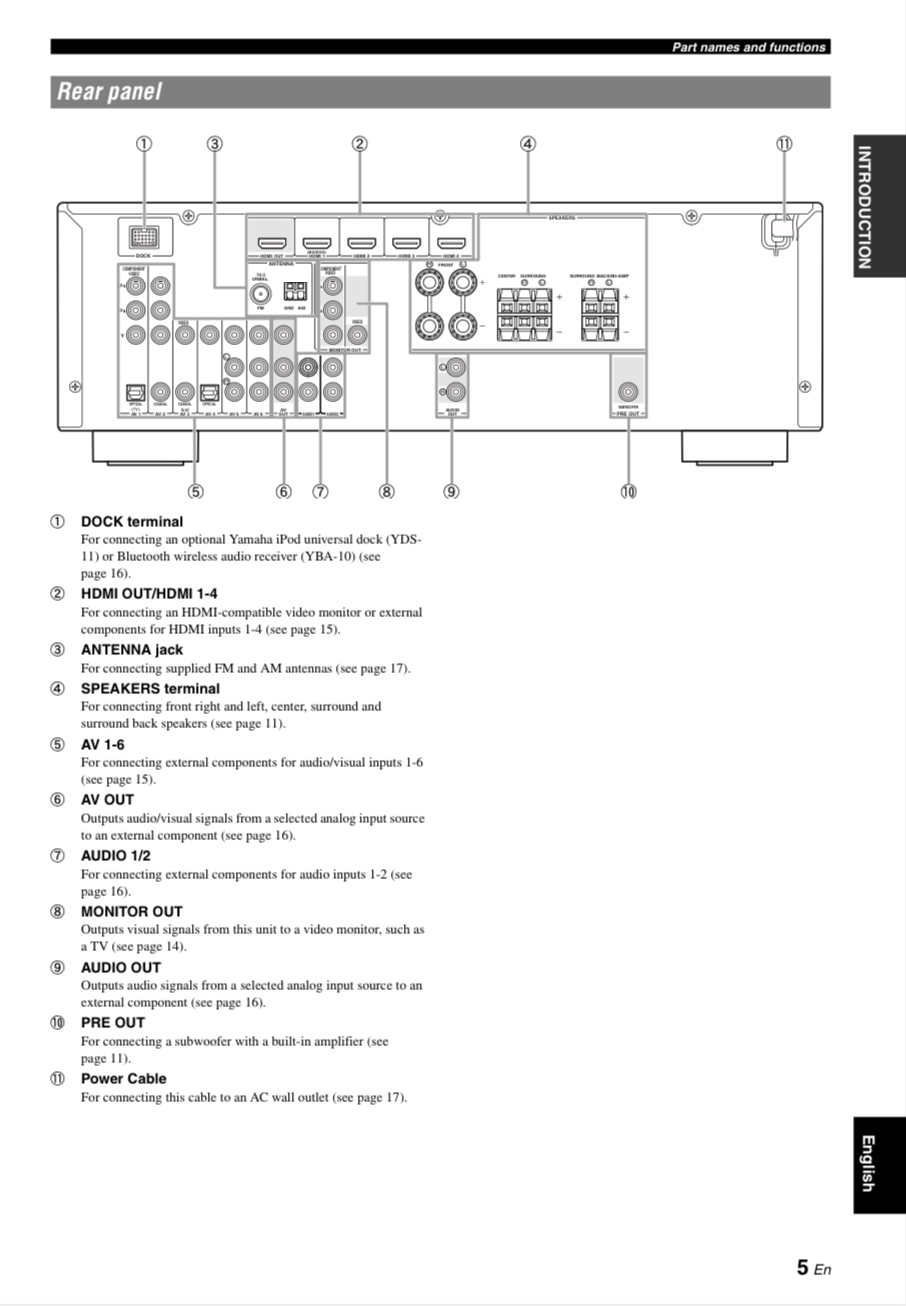

View attachment 54440



[WetWorks]

Use the AUDIO 1/2 analog inputs.

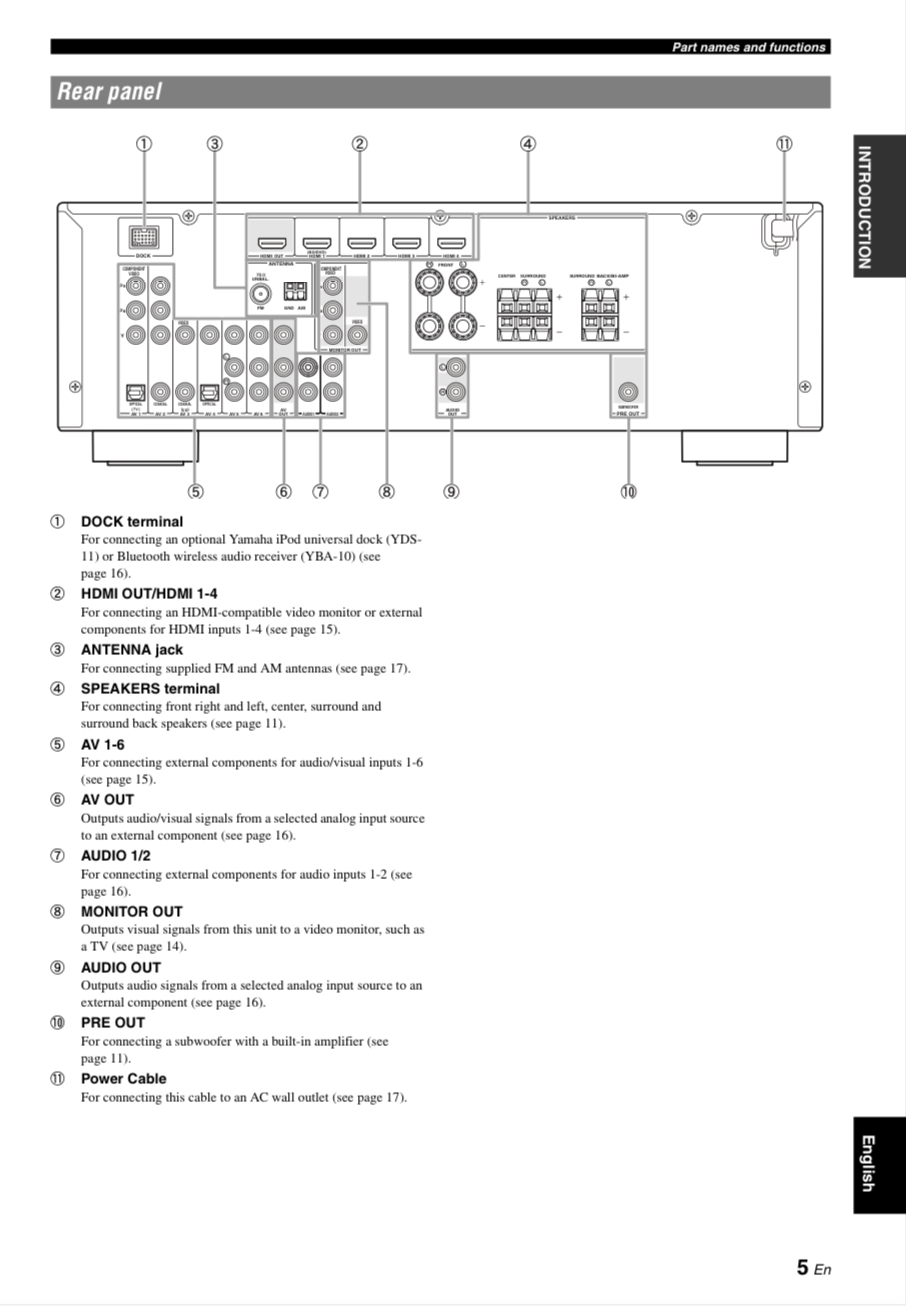

View attachment 54440

Yup, #7 seems to work to get the CD and CASSETE to work.



[WetWorks]

Thanks to all for the advice.
I do have one more problem. The speakers cut out after the receiver is turned on. Tuner, CD and CASSETTE all work. I have tried setting the speaker impedance to both settings, but no luck. Should I try a RESET to factory settings?



[Trebdp83]

Check all of the wiring to the speakers at both ends. Anything wrong there?



[WetWorks]

Check all of the wiring to the speakers at both ends. Anything wrong there?

Thank you. You are right. I'm going to say that I got a little ahead if myself.
