Overnight Sensations build

[j_garcia]

Friend of mine had built these some time back and I was pretty impressed with them.



[slipperybidness]

Alright. They're pretty much done with the exception of deciding on a finish.

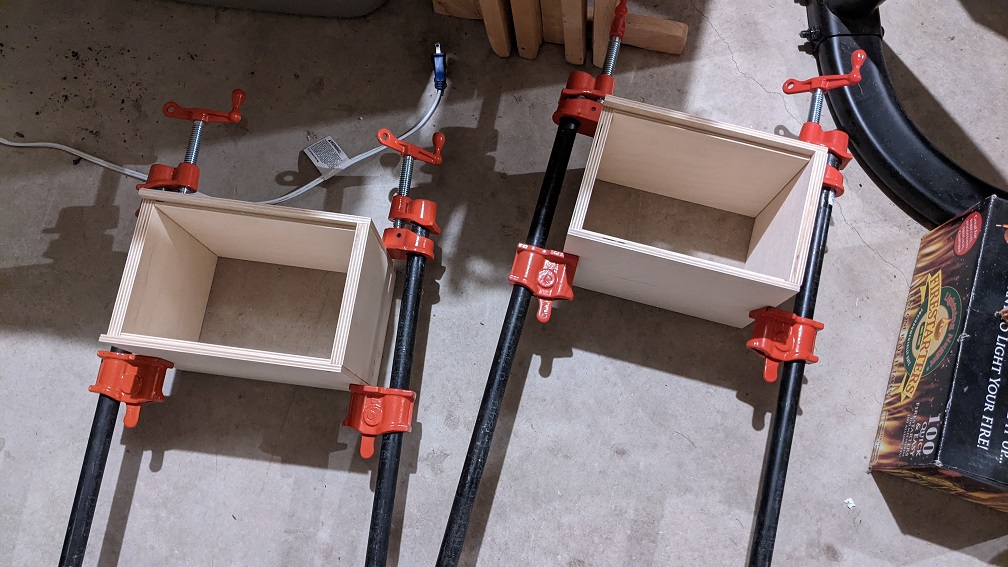

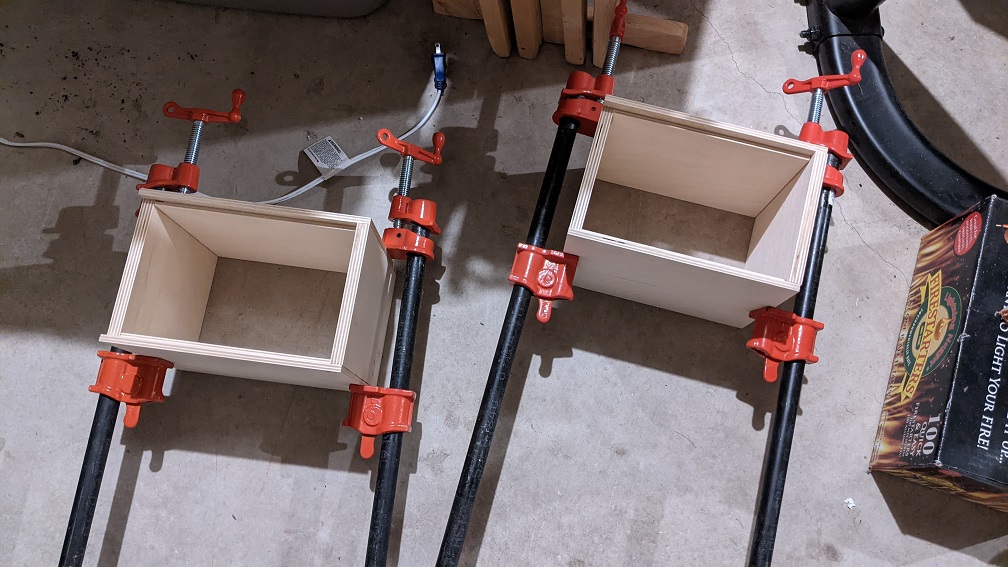

So I went ahead and glued up the sides, top and bottom. A bit tricky, but I got it done with my helpers. The kids got a kick out of this project.

View attachment 45456

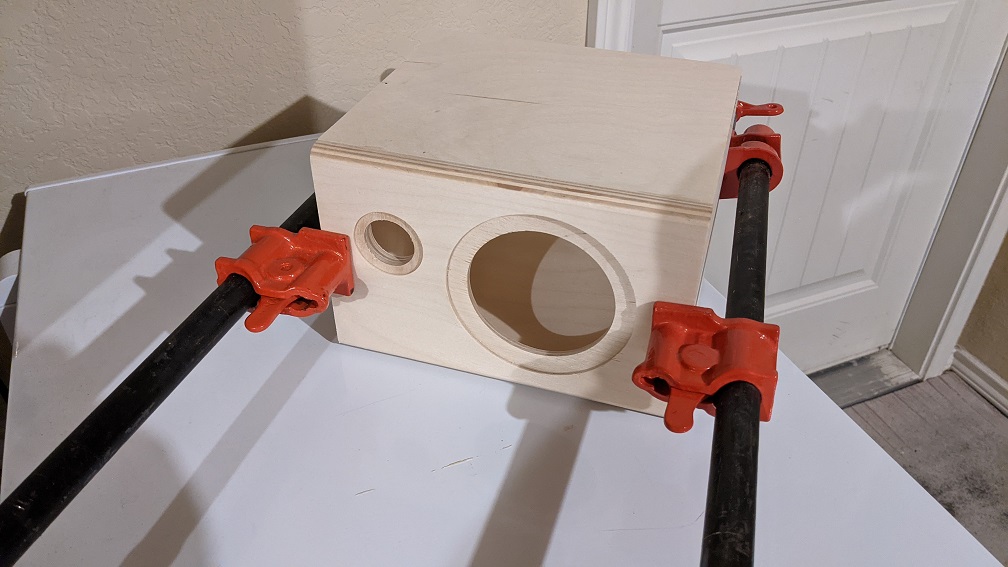

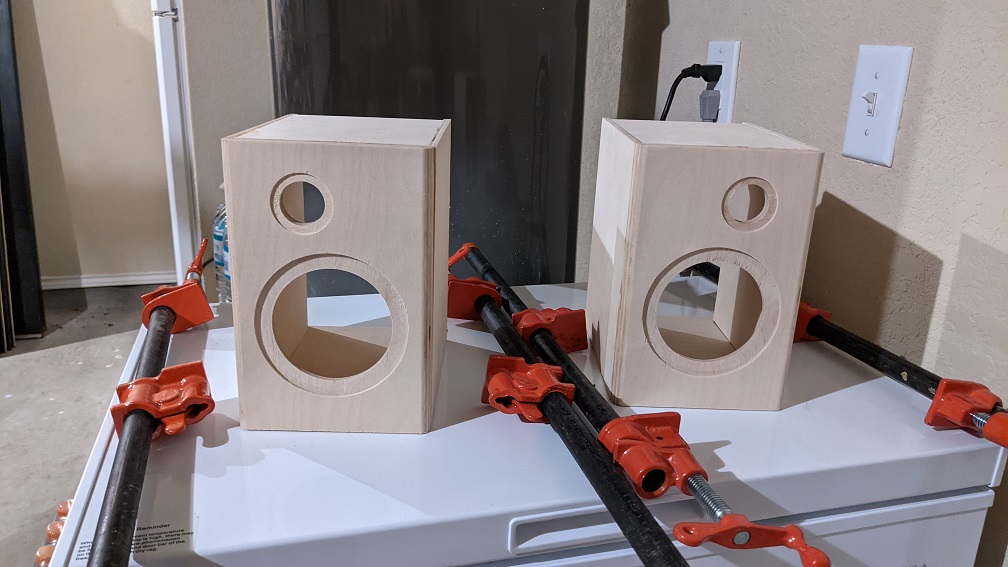

Once that was done, I got the baffles on.

View attachment 45457

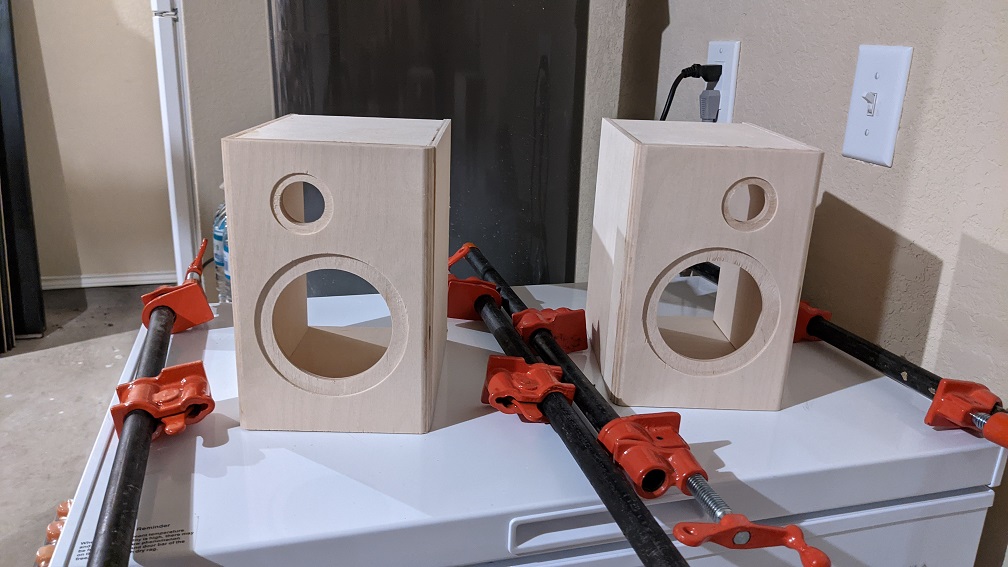

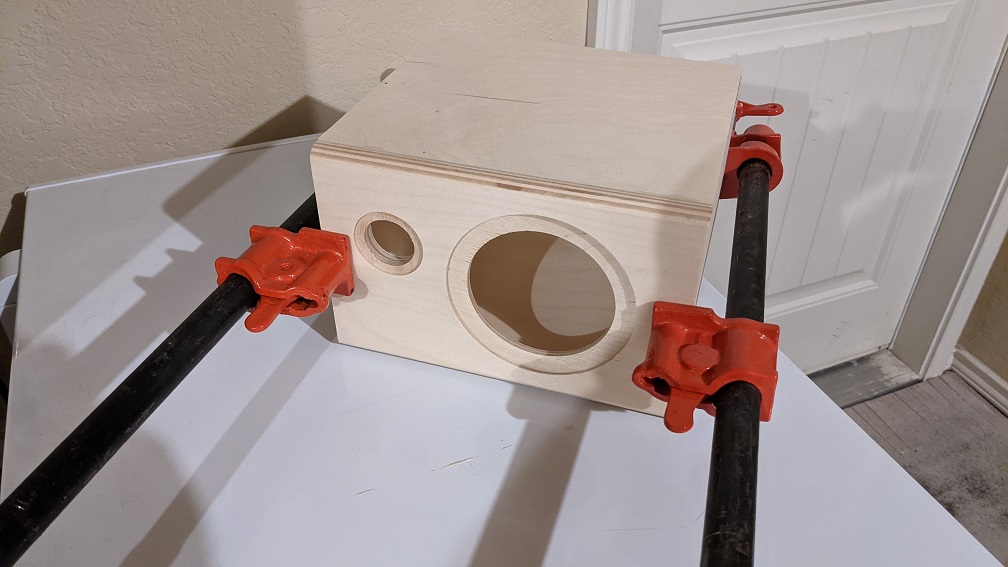

These are pretty small speakers so I was able to build both at once.

View attachment 45458

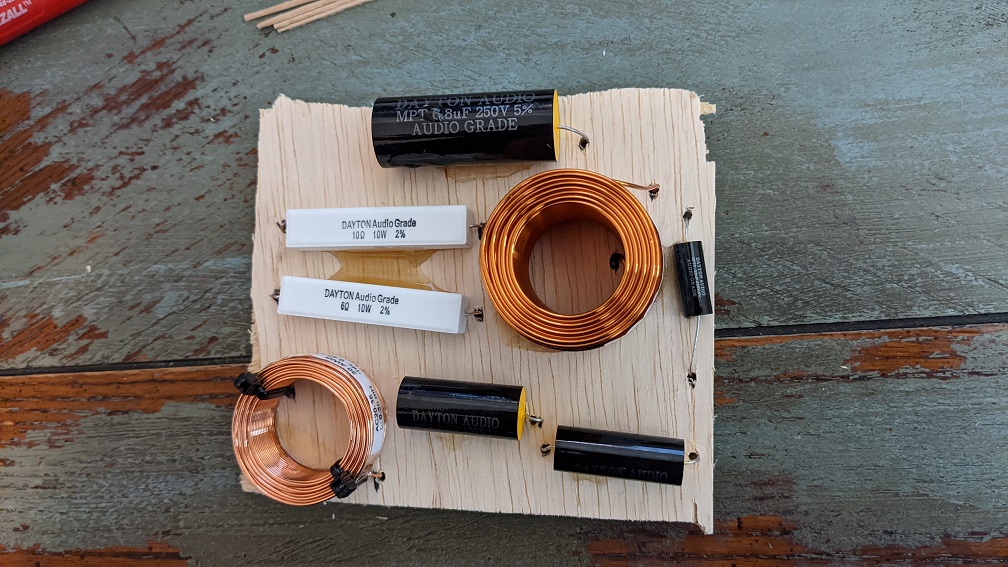

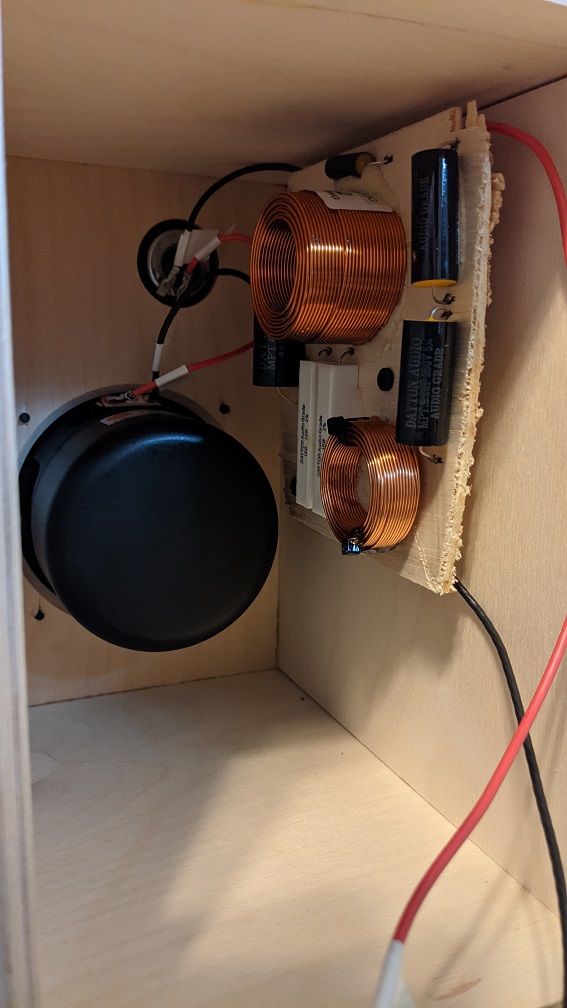

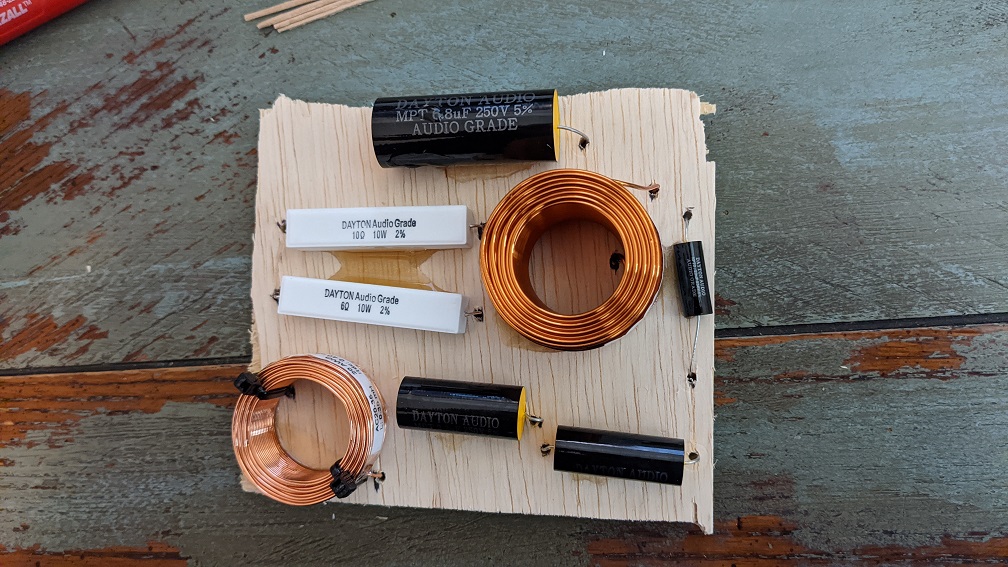

That was the easy part, now for the crossover. I found out I still suck at soldering and that I'm not a fan of building crossovers with my current tools. If I do this again, I'm going to have to do something better. My 1/8" ply worked well though. Scrap wood always comes in handy.

View attachment 45459

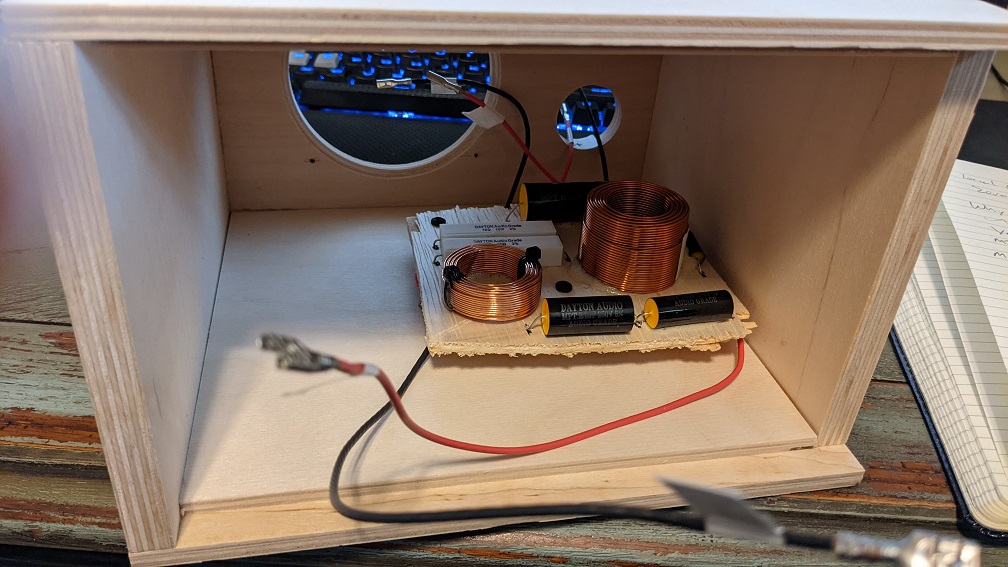

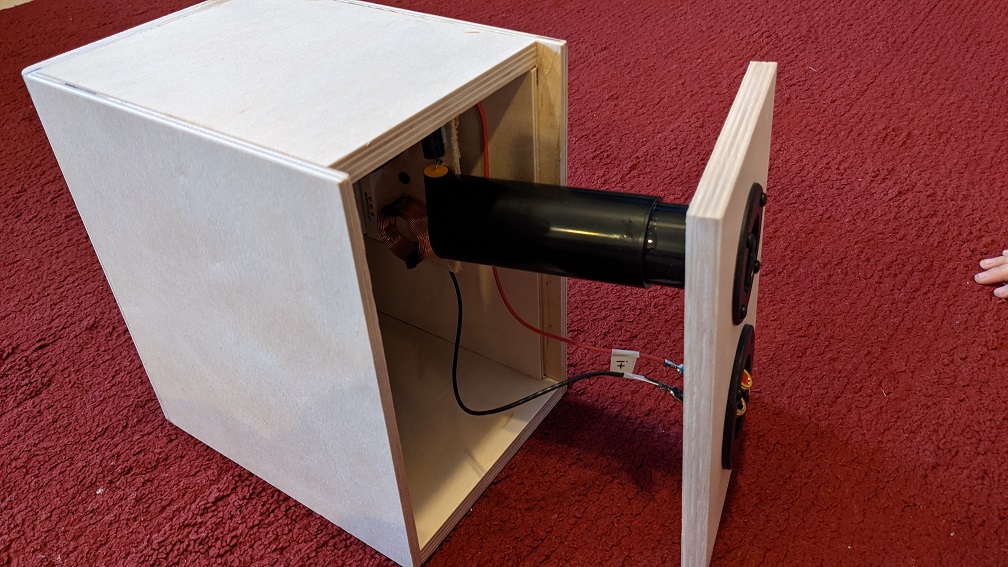

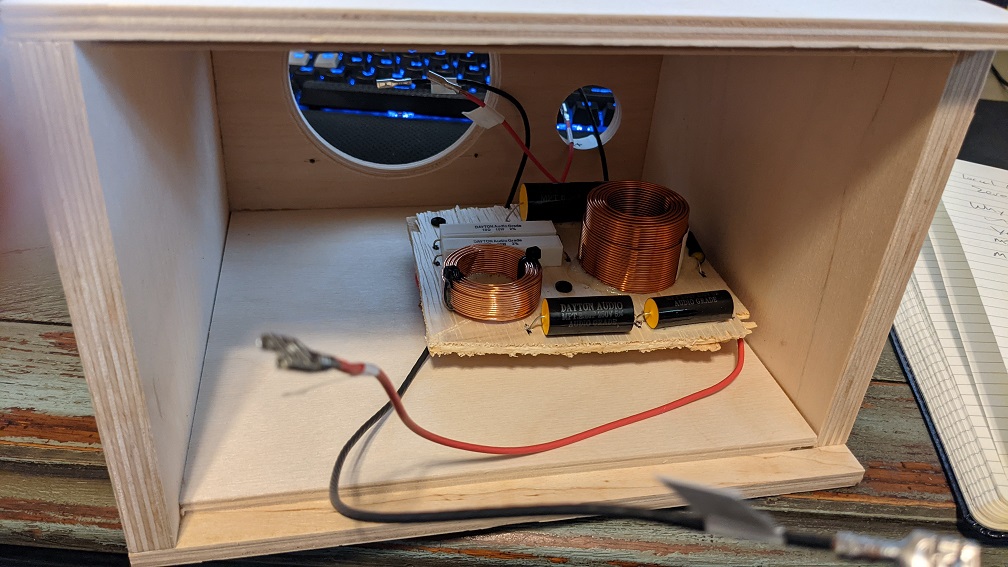

Fit well and screwed down. I did have to adjust a bit since the port came into contact with the crossover.

View attachment 45461

Glad I had some crimp on connectors. Didn't think of that. Glad I had a lot of things on hand. That speaker wire did well, but it is stiff stuff. Next time I'll use more flexible wire.

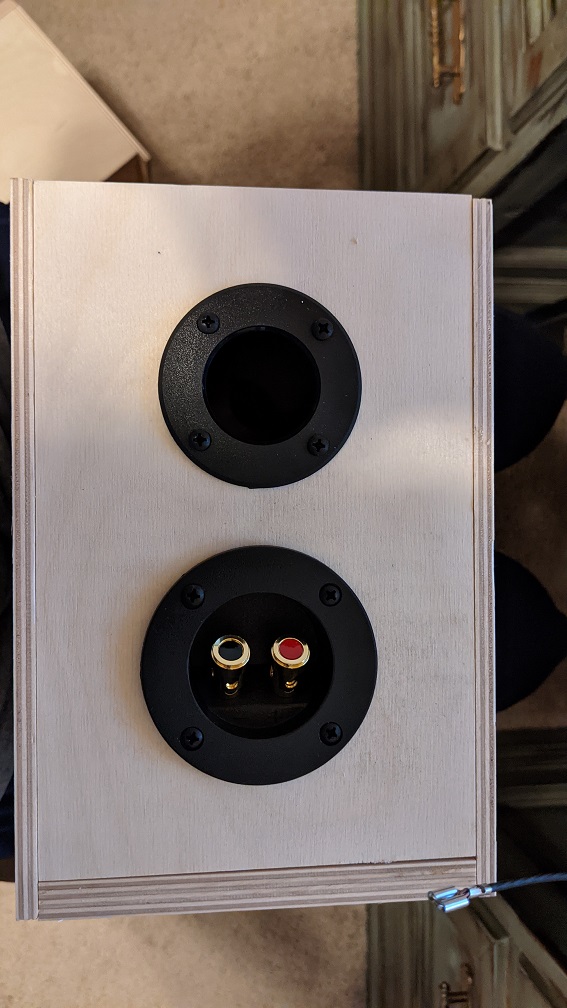

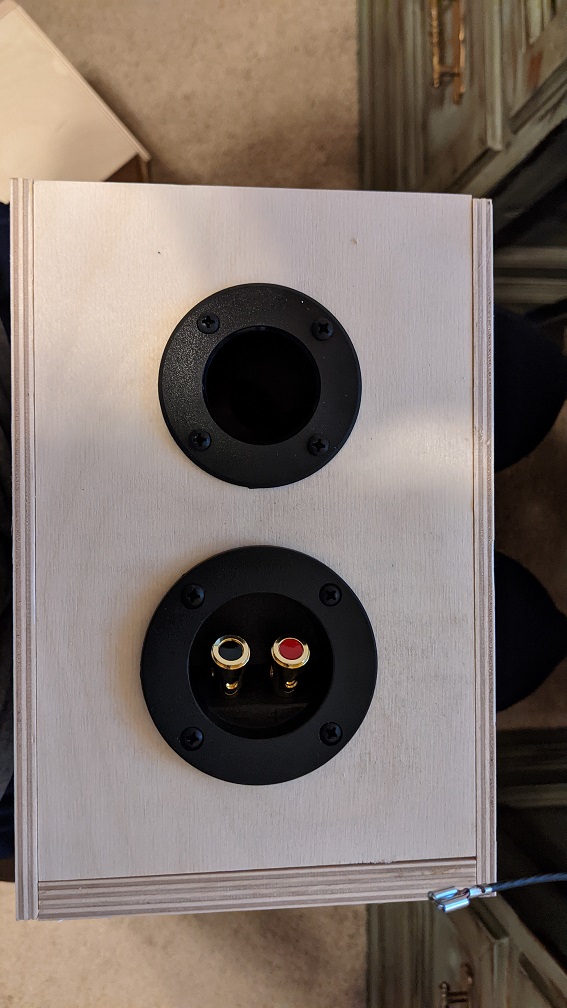

Back is done.

View attachment 45462

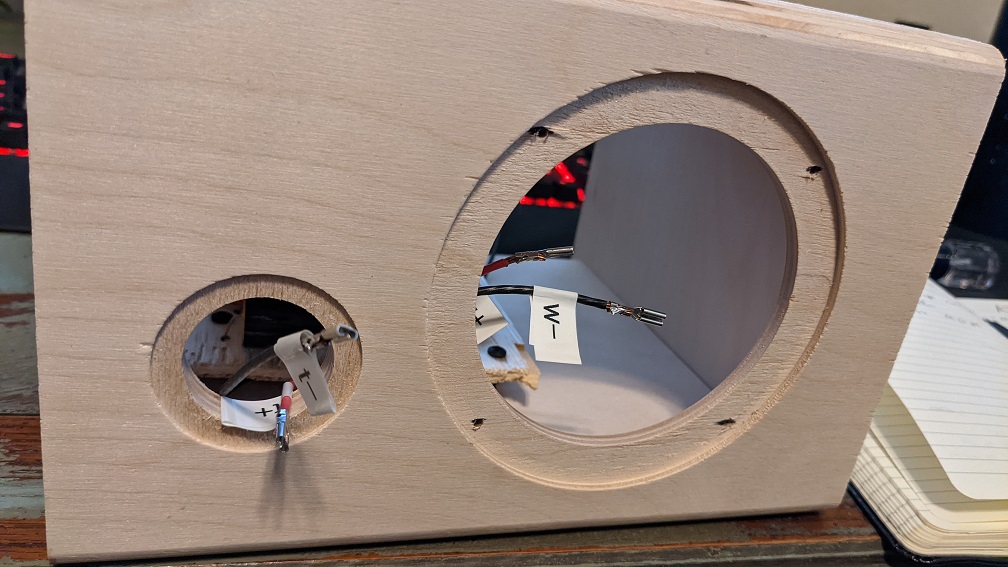

Getting ready to put the drivers in. The tweeter was a PITA in one of them, but I got it in. Not looking forward to removing it when I stain them.

View attachment 45463

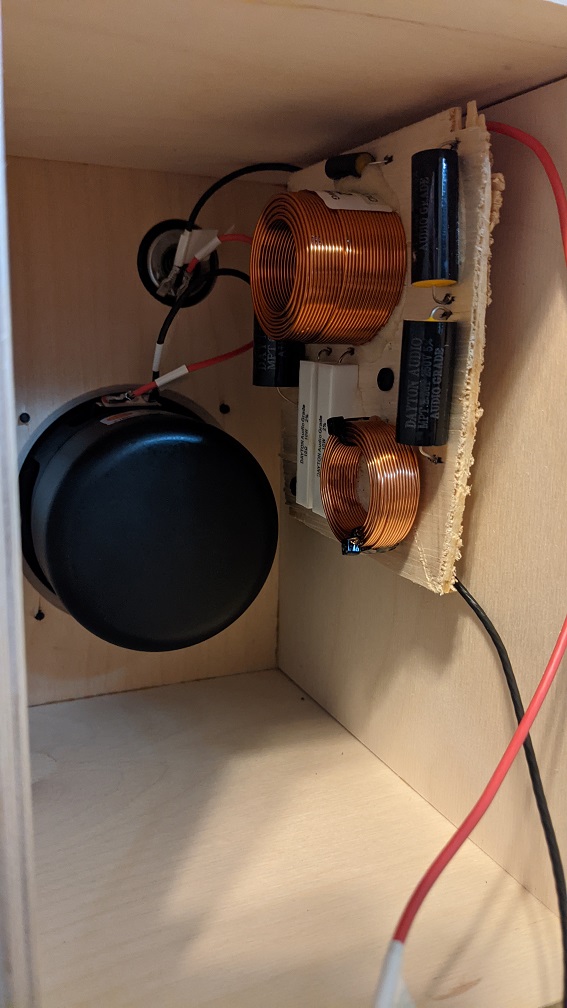

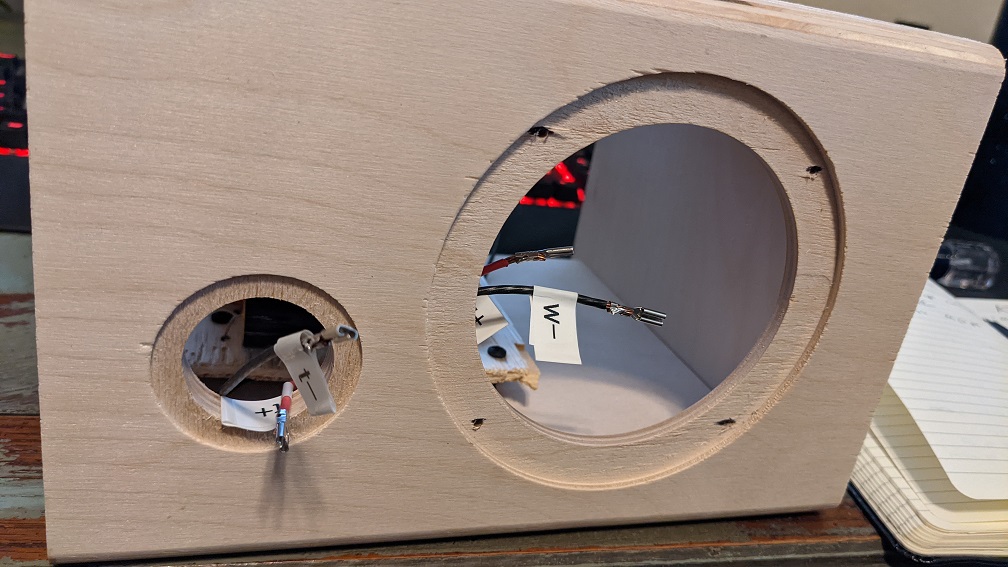

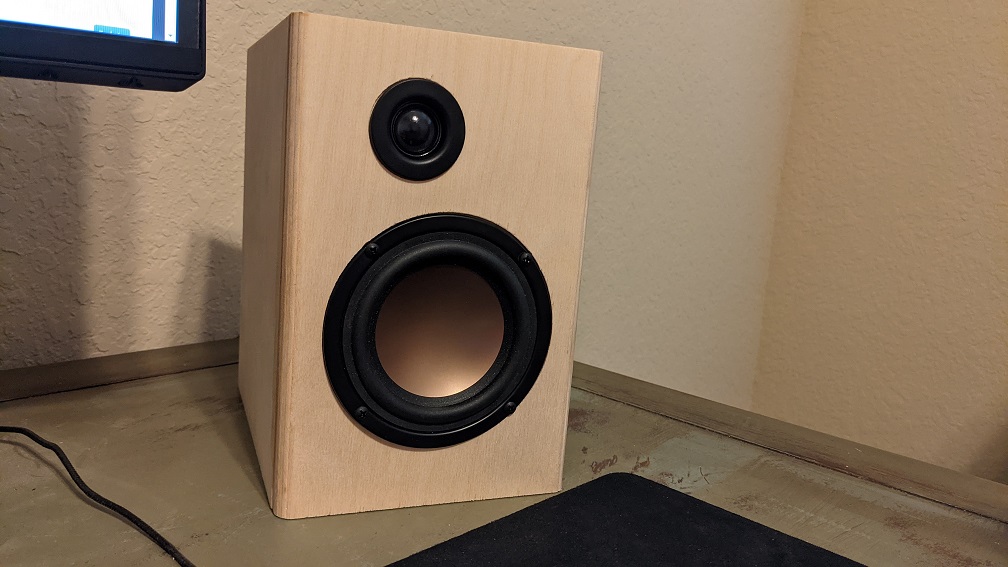

The labels were helpful. Drivers are in.

View attachment 45464

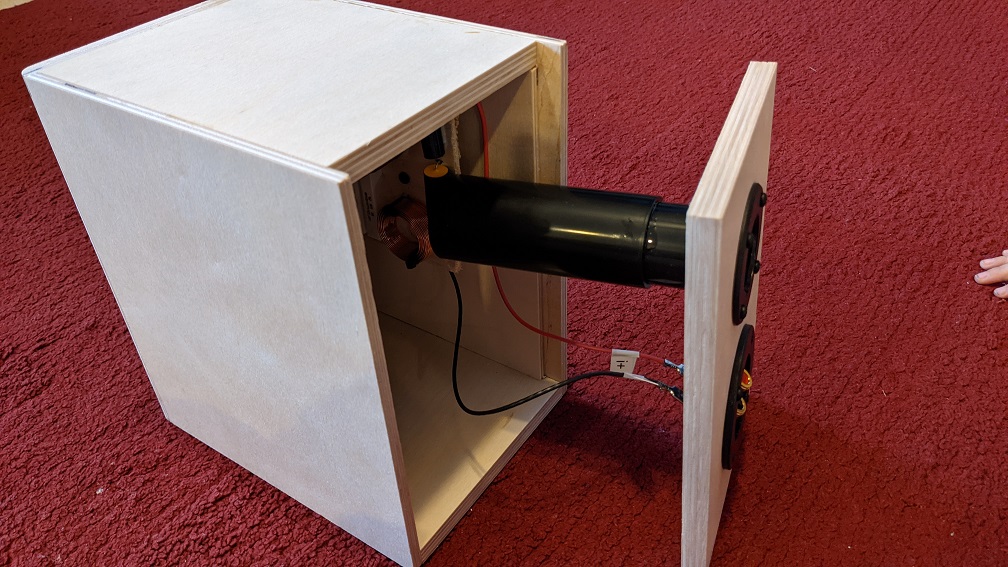

Tested and ready for final assembly.

View attachment 45465

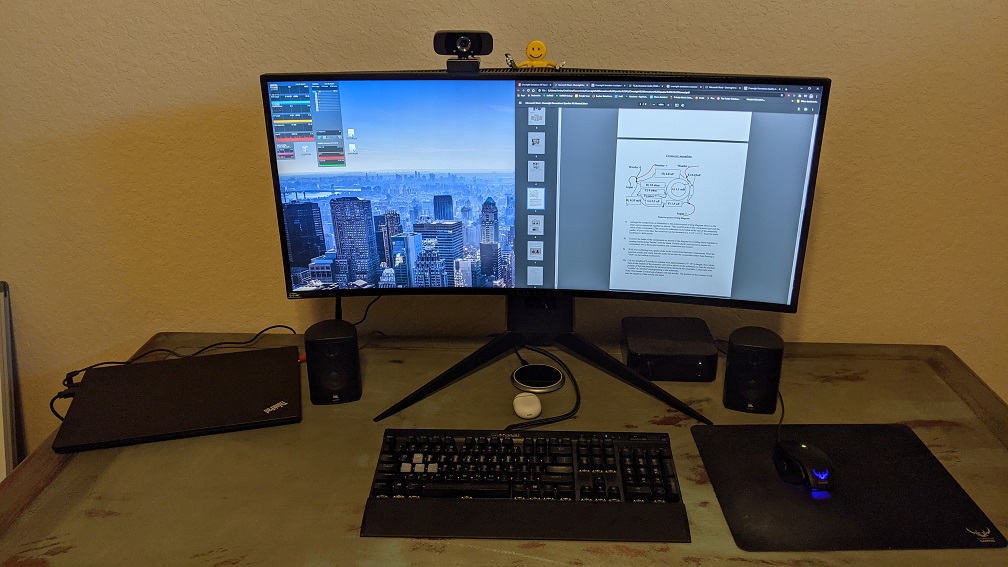

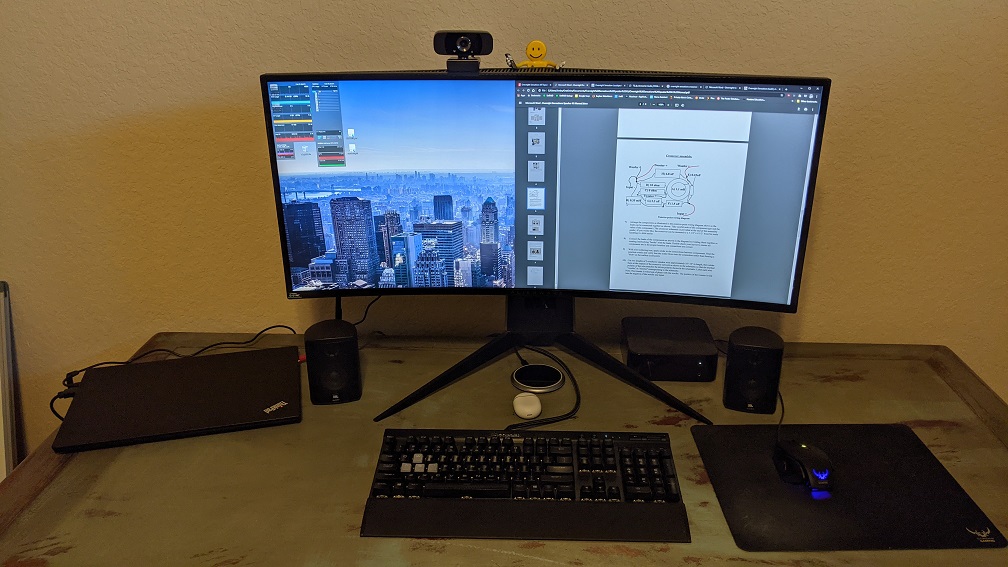

Old setup. Doing this gave me an excuse to finally get my work laptop off my desk. I don't open it so there's no point to it sitting there.

View attachment 45466

Dang, that's one ugly XO

Haha, good thing nobody ever sees it anyway. Looking good!



[slipperybidness]

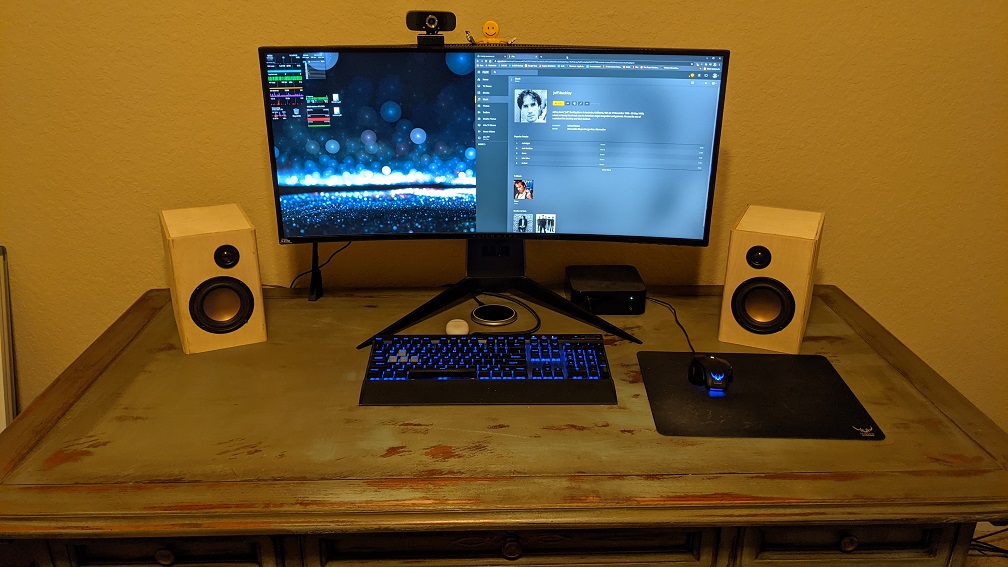

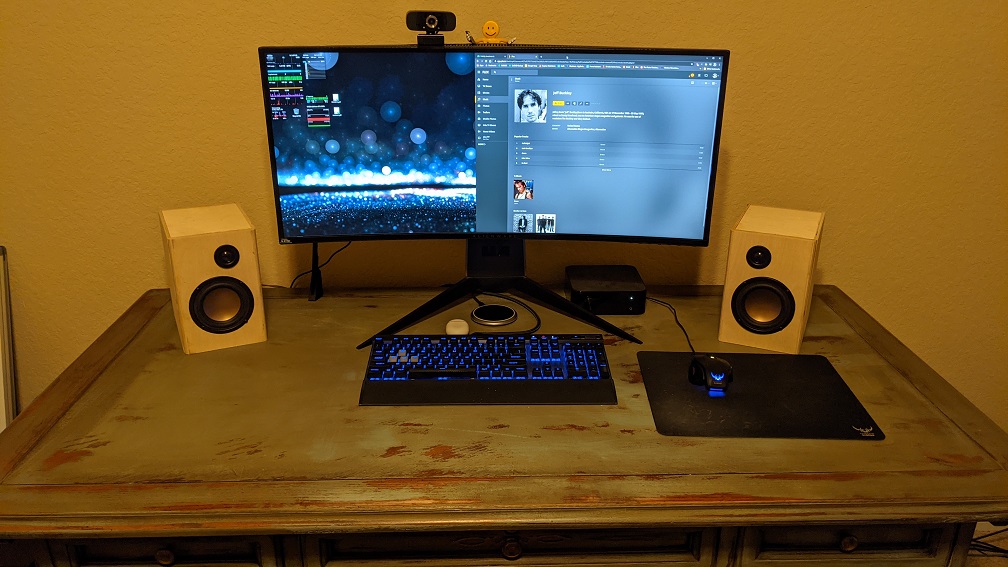

New setup. Much better. Room lighting did some funky stuff with my phone's camera, but they look pretty good.

View attachment 45467

I like the raw look, but I'm going to do a Minwax Gel Stain. Red Elm is what wifey picked.

https://www.minwax.com/wood-products/stains/minwax-gel-stain#colors

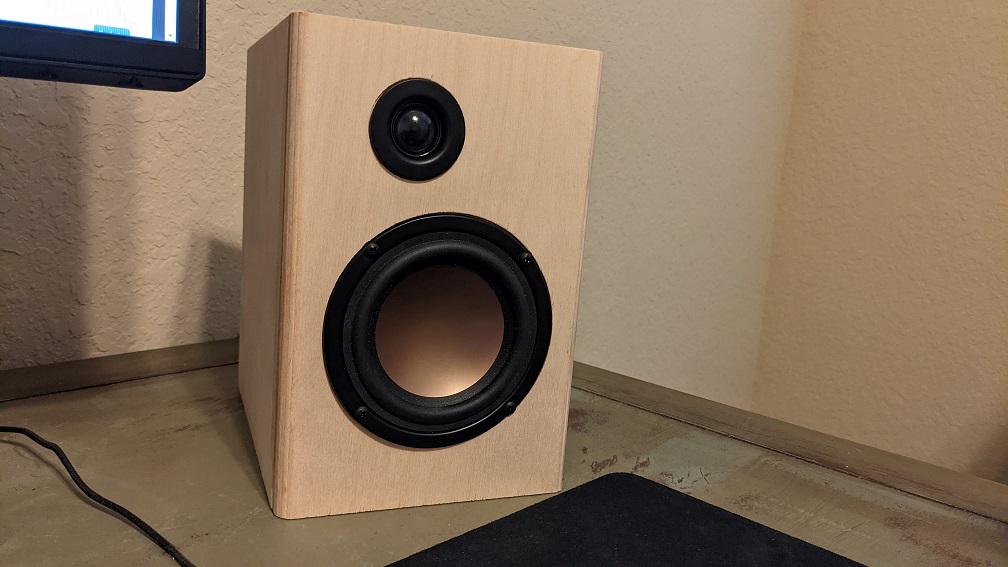

View attachment 45468

These little speakers really have no business sounding as good as they do. I had the sub crossover set at 80hz and that seemed a bit too low. They put out decent bass on their own though. ~95hz seems to be better in my room.

I went through a lot of music yesterday and the main thing I keep hearing is how well they are able to put up a phantom center image. Better than anything else I have at the moment. I either placed these perfectly on the first try, or they're just that good. Tweeter is a bit laid back, but not in a bad way. It actually sounds excellent for how little it costs.

That's really the theme for this whole kit. Shockingly good for how cheap it is. For around $160 I have a speaker that sounds better than others costing MUCH more.

Thanks to everyone for pointing me down this path. I now hate you all since I'll be needing to build quite a few more speakers since results are this good with a cheap starter kit.

Like I mentioned, I ended up getting these for ~$108 a while back, much too good a price to pass up! I certainly had a PE coupon, and they were on sale at the time too. I have had my eye on them for a long time, and that was the cheapest I ever recall seeing them.

Yeah, those tweeters were a tight fit! I tend to run my tweets on the outside, you seem to have chosen inside......I never know which way it is "supposed to be".

I'm just running mine full range.

I am much more skilled on the electronics and have much more patience for the electronics work than on the woodworking and cabinet finishing side.



[panteragstk]

Like I mentioned, I ended up getting these for ~$108 a while back, much too good a price to pass up! I certainly had a PE coupon, and they were on sale at the time too. I have had my eye on them for a long time, and that was the cheapest I ever recall seeing them.

Yeah, those tweeters were a tight fit! I tend to run my tweets on the outside, you seem to have chosen inside......I never know which way it is "supposed to be".

I'm just running mine full range.

I am much more skilled on the electronics and have much more patience for the electronics work than on the woodworking and cabinet finishing side.

I did it how the picture they included in the write up did it so the placement seems right? It sounds good though so I may not change it till they get stained.

I can build the crossovers and stuff, but I didn't have what I needed so it was more frustrating than it should have been. Now I know for next time.

I was going to get out my nicer saw and make the crossover board pretty, but it's going inside and will never be seen. For this build, that won't drive me crazy, but if I ever do anything like the BMR or something else higher end, I'll probably go with something better. Or let Meniscus build it for me. BMR kit with a few upgrades and having them assemble the crossover comes to around $1K.

I like building the cabinets, but I need to do more before I'd consider myself to be decent at it. I cheated on this one with the flat pack and I like the quality of the box, but I want to do something higher end in the future. I've got some walnut veneer given to me by a friend many years ago that needs to be used for something.



[slipperybidness]

I did it how the picture they included in the write up did it so the placement seems right? It sounds good though so I may not change it till they get stained.

I can build the crossovers and stuff, but I didn't have what I needed so it was more frustrating than it should have been. Now I know for next time.

I was going to get out my nicer saw and make the crossover board pretty, but it's going inside and will never be seen. For this build, that won't drive me crazy, but if I ever do anything like the BMR or something else higher end, I'll probably go with something better. Or let Meniscus build it for me. BMR kit with a few upgrades and having them assemble the crossover comes to around $1K.

I like building the cabinets, but I need to do more before I'd consider myself to be decent at it. I cheated on this one with the flat pack and I like the quality of the box, but I want to do something higher end in the future. I've got some walnut veneer given to me by a friend many years ago that needs to be used for something.

Yup, "now I know for next time" is the entire point of DIY! You will almost certainly make little mistakes and/or find the flaws that nobody else will ever notice. I leave such flaws as a "reminder for next time".

I don't really have the tools for the fancy woodworking either, so I'm pretty much looking at flat packs only.



[panteragstk]

Yup, "now I know for next time" is the entire point of DIY! You will almost certainly make little mistakes and/or find the flaws that nobody else will ever notice. I leave such flaws as a "reminder for next time".

I don't really have the tools for the fancy woodworking either, so I'm pretty much looking at flat packs only.

Funny thing is I have the tools (most of them) for woodworking, but not the crossover. My soldering iron is over 25 years old and is a cheap 30w rad shack model. That alone made it frustrating as the tip of that soldering iron is shot big time.
