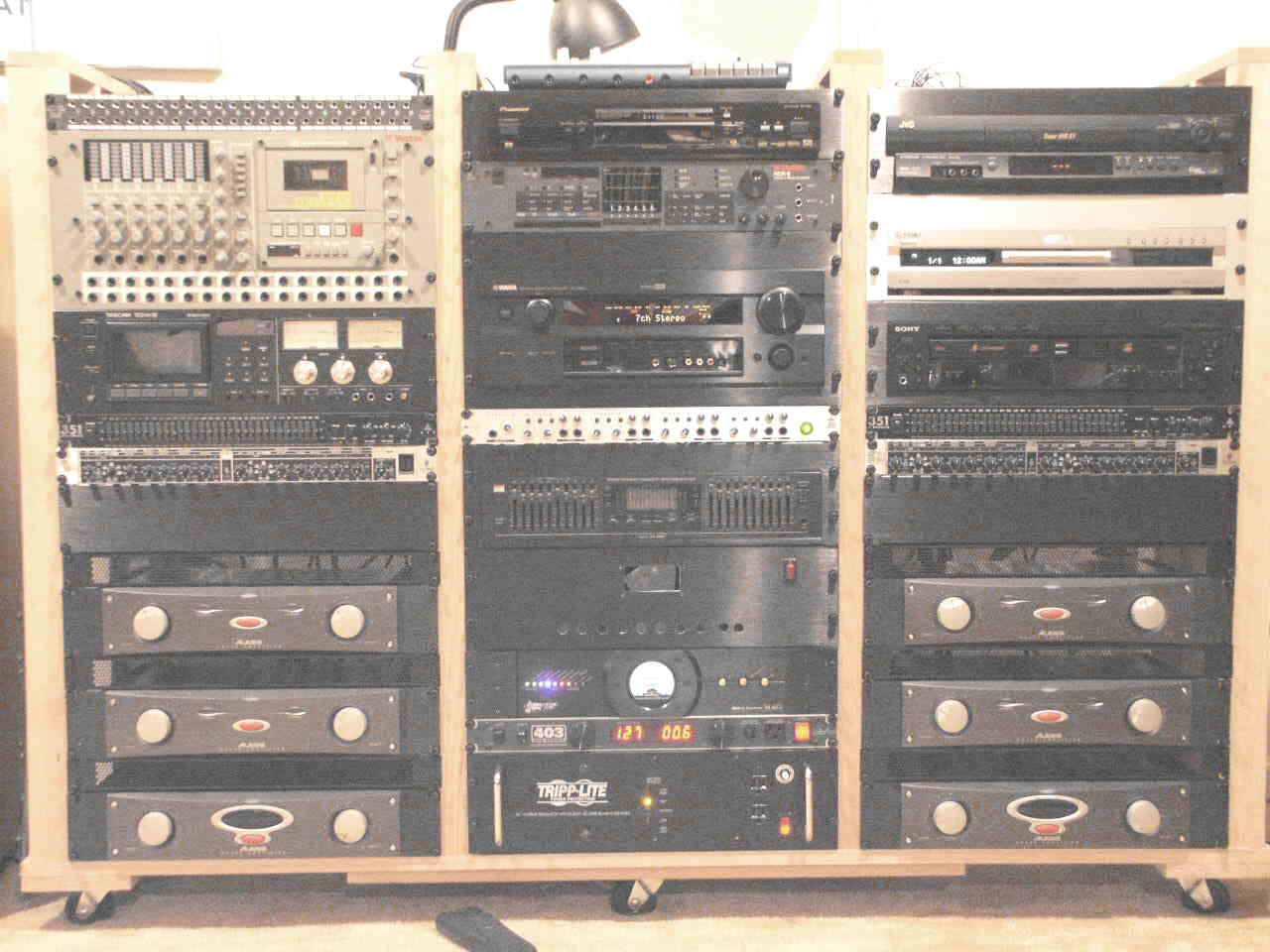

This is my system. I only just completed installing everything in a homemade rack. The TV which in not shown is a Zenith 37" Tube. The speakers, also not shown consist of Sapphire SBs (Front R&L), Mirage Omni 7s (front R&L), Mirage Omni Center, Yamaha NS-10MMT (surrounds, surround backs, and presence), Two Yamaha YST-SW315 subs. Thirteen Speakers in all, powered by a Yamaha RX-V1400 and 6 amps.

Left Column from the top to bottom
1 - Hosa Patch Bay
2 - Vestax MR66 6 track cassette recorder/mixer
3 - Tascam 122 Mk III Cassette Deck
4 - ART 351 31 band 1/3 Octave Graphic Equalizer
5 - Behringer CX3400 Active Crossover (Not doing anything at the moment)
6 - Signal Meter, homemade LED meter to observe the output from two of the Alesis RA150 AMPS
7 - Fan Unit, it is homemade and powered from the Power Supply. There are 6 of these in the rack
8 - Alesis RA150 AMP
9 - Fan Unit
10 - Alesis RA150 AMP
11 - Fan Unit
12 - Alesis RA300 AMP

Center Column from the top to bottom
13 - Tascam 414 4 track cassette recorder/mixer
14 - Pioneer Elite DV45A DVD Player, SACD and DVD-Audio too.
15 - Vestax HDR 6, digital 6 track recorder/mixer
16 - Yamaha RX-V1400
17 - Alto 4 channel Headphone Amp
18 - BSR EQ3000 10 Band Graphic Equalizer and Spectrum Analyzer
19 - Power Supply, Regulated 12 Volt DC, 5 amp DIY for the fans, meters, and Tascam mixer.
20 - Monster HTS5100 Power conditioner
21 - ART 403 Power Conditioner with volt and amp meters. Everything runs through this so that I know how much current I'm drawing.
22 - Tripplite LCR-2400 Line conditioner. Keeps everything running smooth even during Brown outs.

Right Column from the top to bottom
23 - JVC VCR
24 - SONY DVD player/recorder
25 - SONY CD player/recorder
26 - ART 351 31 band 1/3 Octave Graphic Equalizer
27 - Behringer CX3400 Active Crossover(Not doing anything at the moment)
28 - Signal Meter
29 - Fan Unit
30 - Alesis RA150 AMP
31 - Fan Unit
32 - Alesis RA150 AMP
33 - Fan Unit
34 - Alesis RA300 AMP
