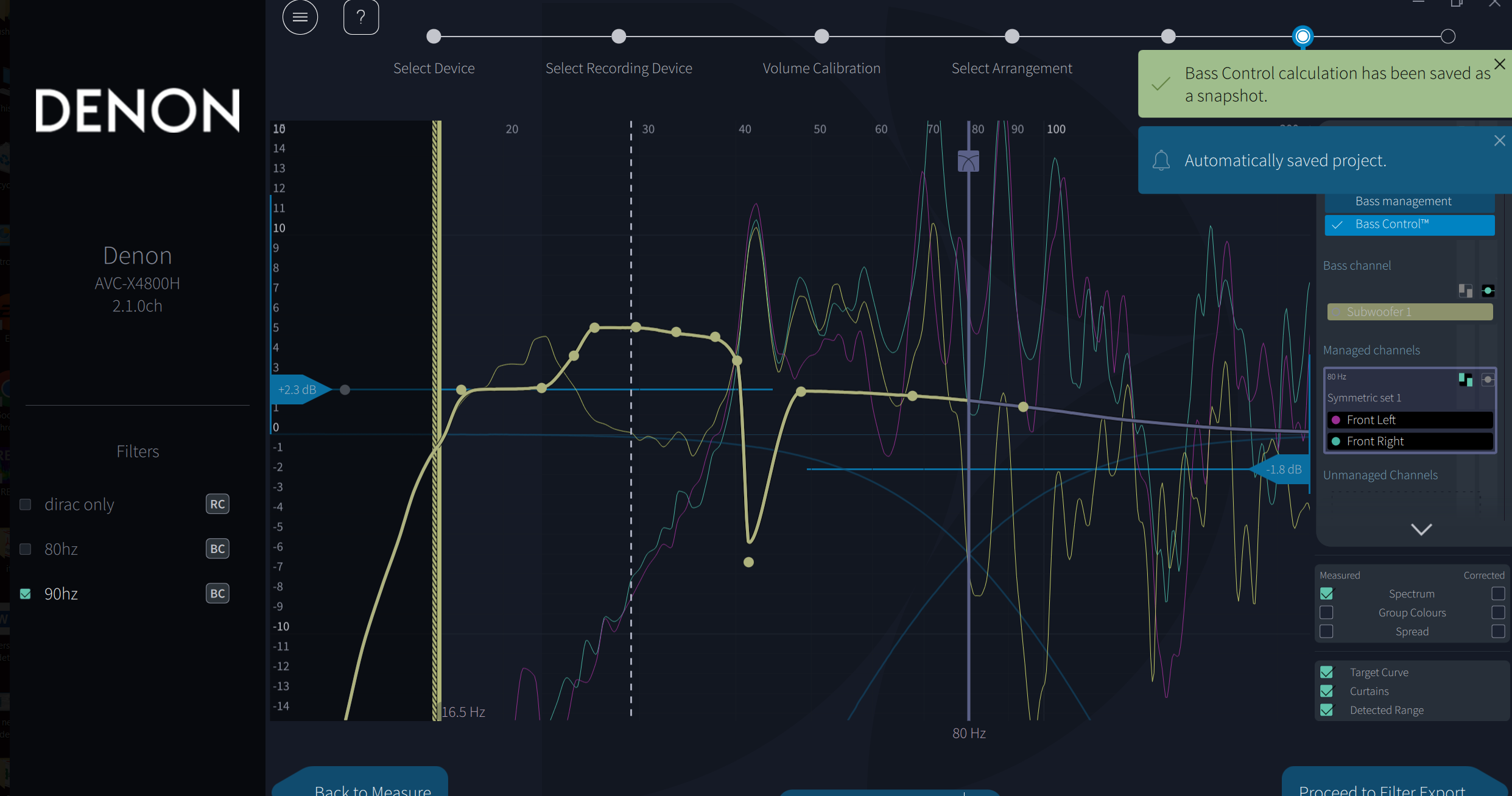

Dirac bass control not fixing peaks and nulls

[hardcore_gamer99]

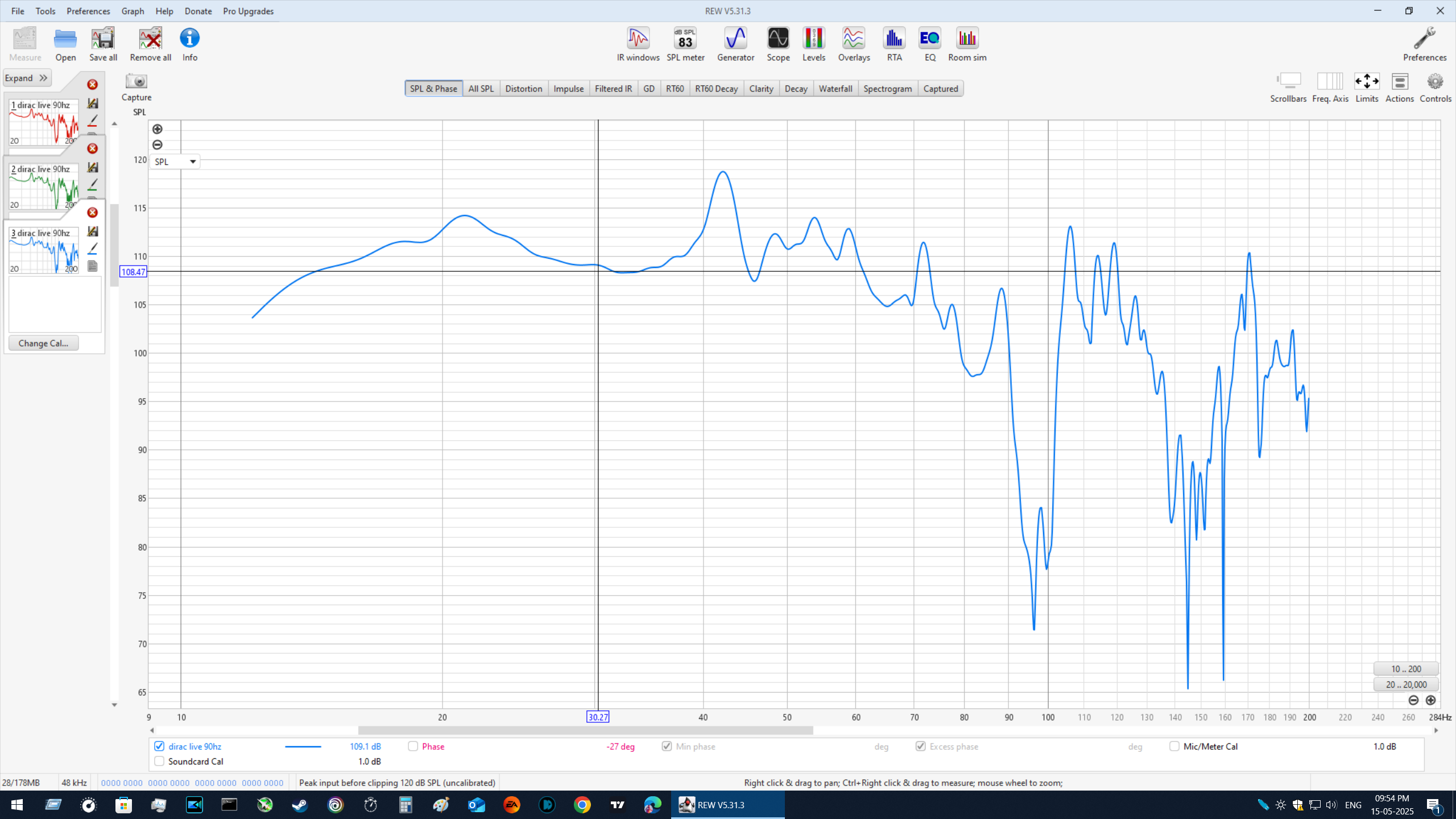

I also tried to bump up frequency range 20 to 36hz by 6db and decreased peak at 42hz by 6db then saved filter but still REW shows same curve exact though i can hear now more SPL in low end. But rew showing up same curve. with dip and peak



[Trell]

Bumping up bass frequencies dips is an iffy proposition and very often does not bring anything to the table. For my HT (two subs) I did try to bump up the sides of the nulls to make them more narrow but kindof meh for me in my setup in my room.

Like you I did measure, but also listen.



[j_garcia]

That is a pretty big dip. Seems you have a room or placement issue. I'd start with adjusting the location of the speakers.

Cutting a peak is usually not so bad, but I agree, increasing in an attempt to smooth a big dip usually does not work. I had a crazy null like that when I had a square room. I ended up moving the listening position to mitigate it, but you could walk around the room and easily hear the spots where the nulls were.



[Verdinut]

Several years ago, I had built an 8 cf enclosure for a 15 inch subwoofer. It was placed in the center of the living room and used as a coffee table as well. I still remember its smooth low frequency response. Of course, it was well designed but this smooth response was also not affected by room gain.

IMO, the center area of a room location is the best spot when you can do it, especially for an audio system using only one subwoofer. It's worth a try!



[hardcore_gamer99]

Bumping up bass frequencies dips is an iffy proposition and very often does not bring anything to the table. For my HT (two subs) I did try to bump up the sides of the nulls to make them more narrow but kindof meh for me in my setup in my room.

Like you I did measure, but also listen.

i can hear more spl with ears but rew shows exact same curve



[hardcore_gamer99]

That is a pretty big dip. Seems you have a room or placement issue. I'd start with adjusting the location of the speakers.

Cutting a peak is usually not so bad, but I agree, increasing in an attempt to smooth a big dip usually does not work. I had a crazy null like that when I had a square room. I ended up moving the listening position to mitigate it, but you could walk around the room and easily hear the spots where the nulls were.

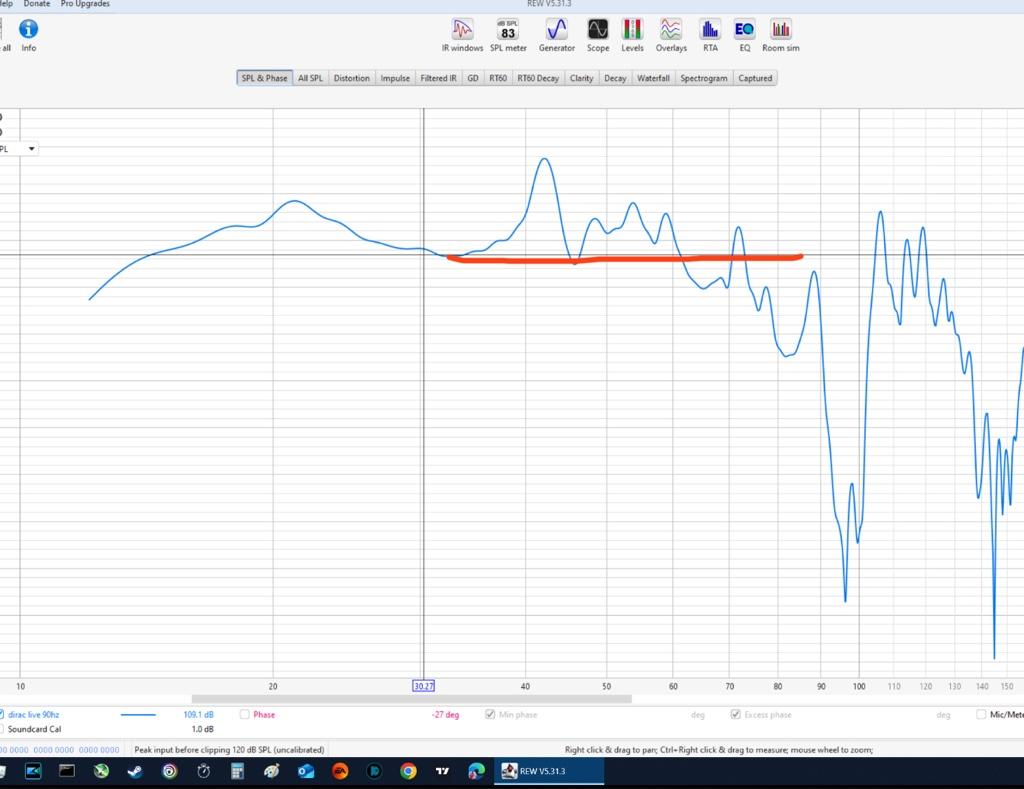

i dont have space so can put in front only but i am worried about 23 to 36hz area a bit of dip i wish could smoothen it



[hardcore_gamer99]

Several years ago, I had built an 8 cf enclosure for a 15 inch subwoofer. It was placed in the center of the living room and used as a coffee table as well. I still remember its smooth low frequency response. Of course, it was well designed but this smooth response was also not affected by room gain.

IMO, the center area of a room location is the best spot when you can do it, especially for an audio system using only one subwoofer. It's worth a try!

i have square room



[j_garcia]

Square room is tough. You might need some treatments, basic bass traps for the corners if possible.
