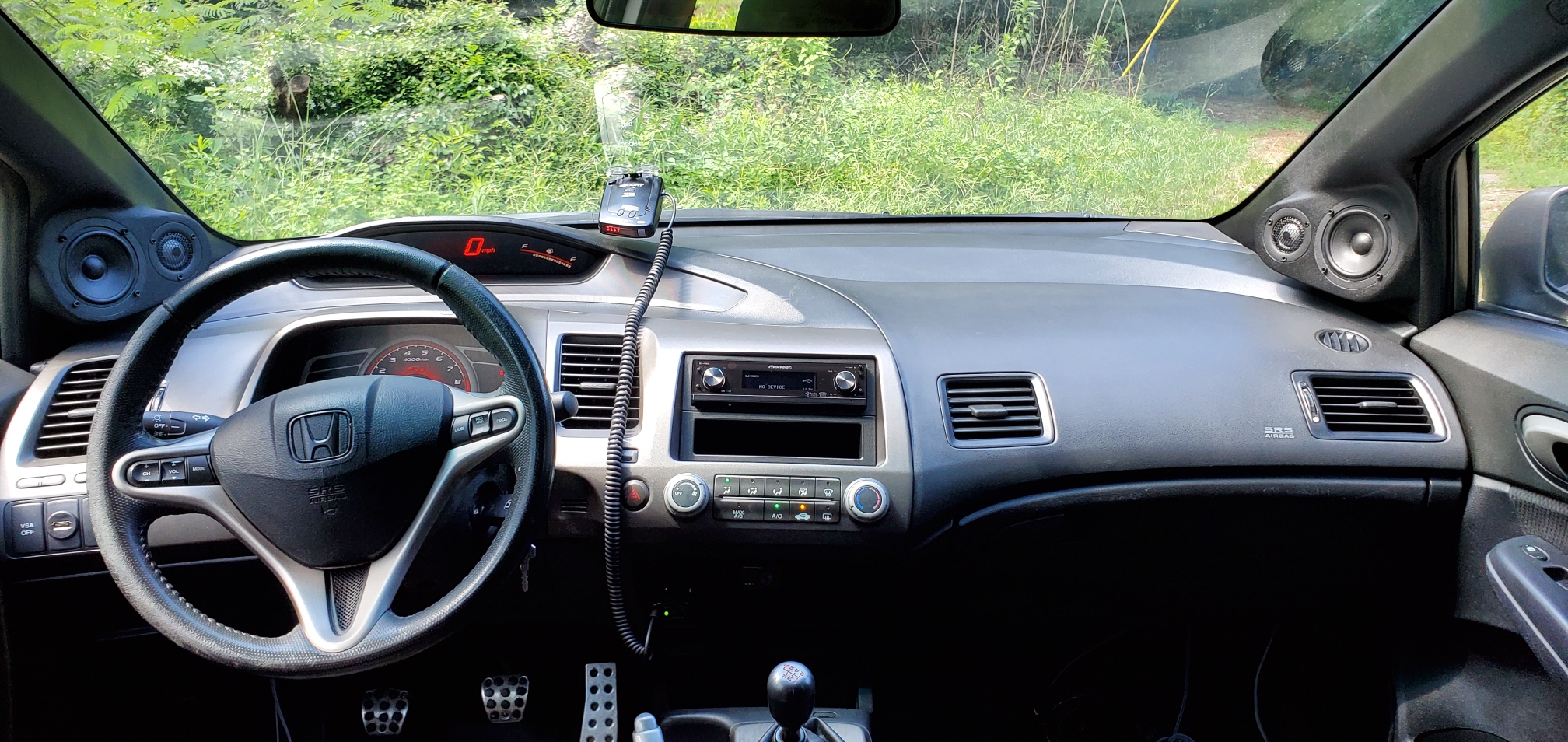

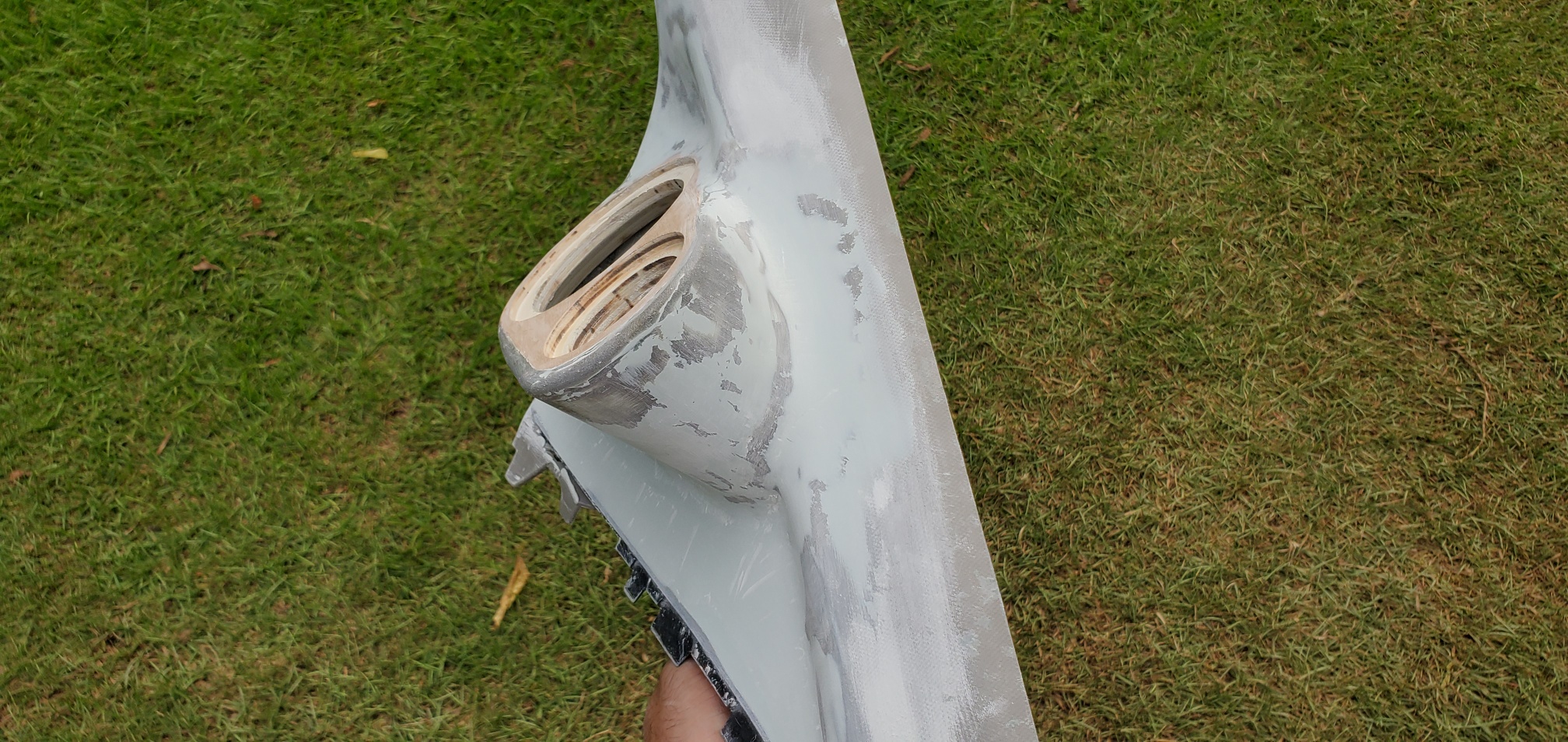

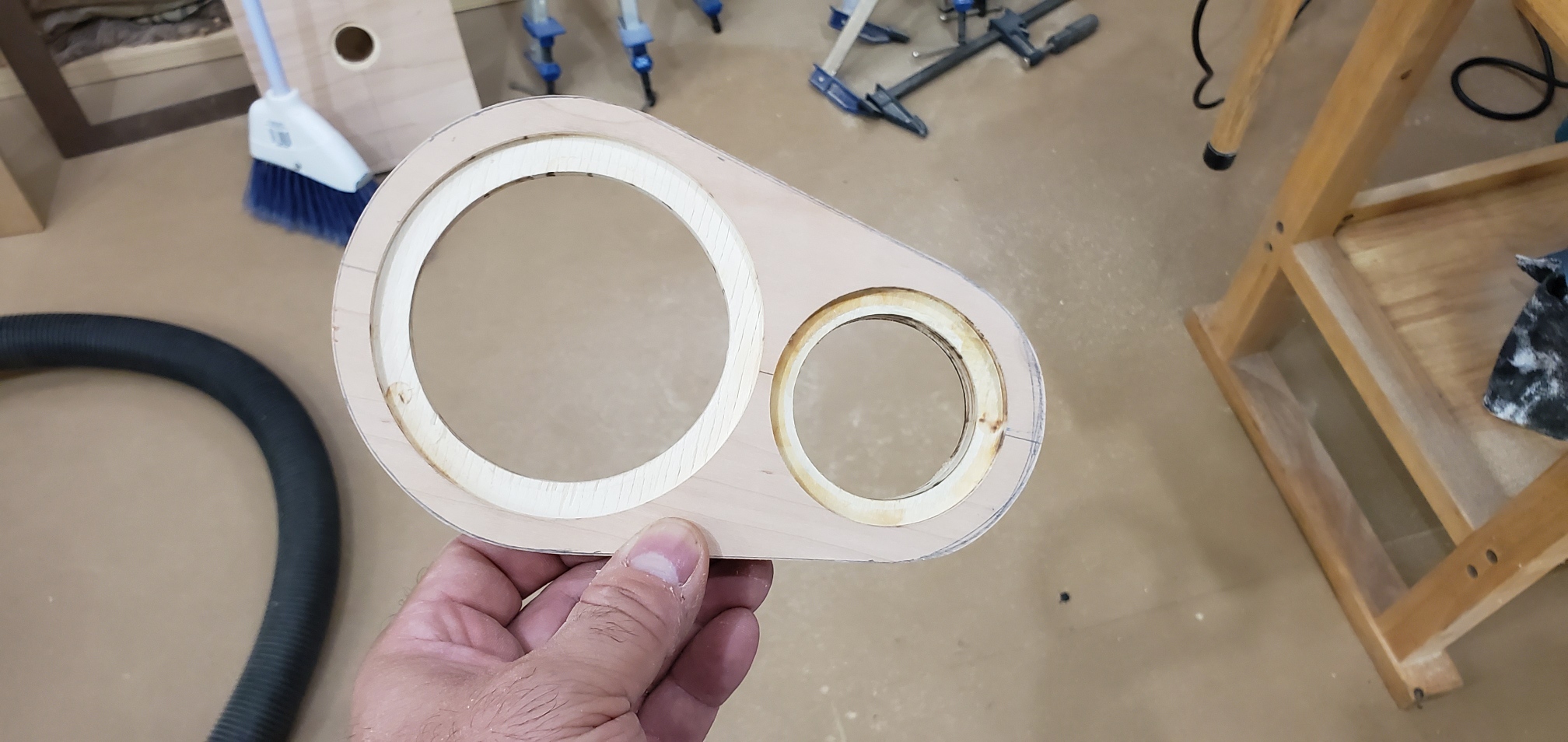

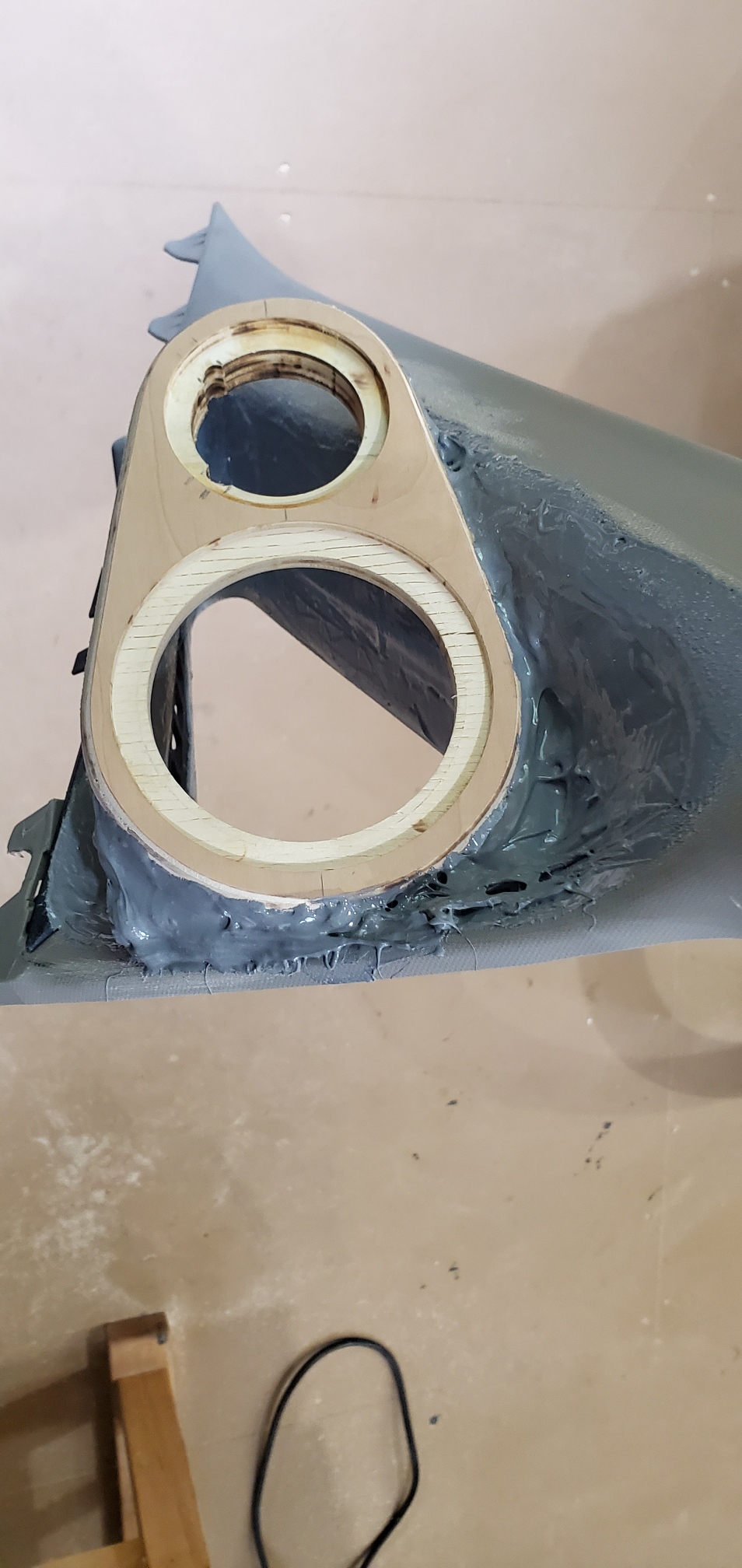

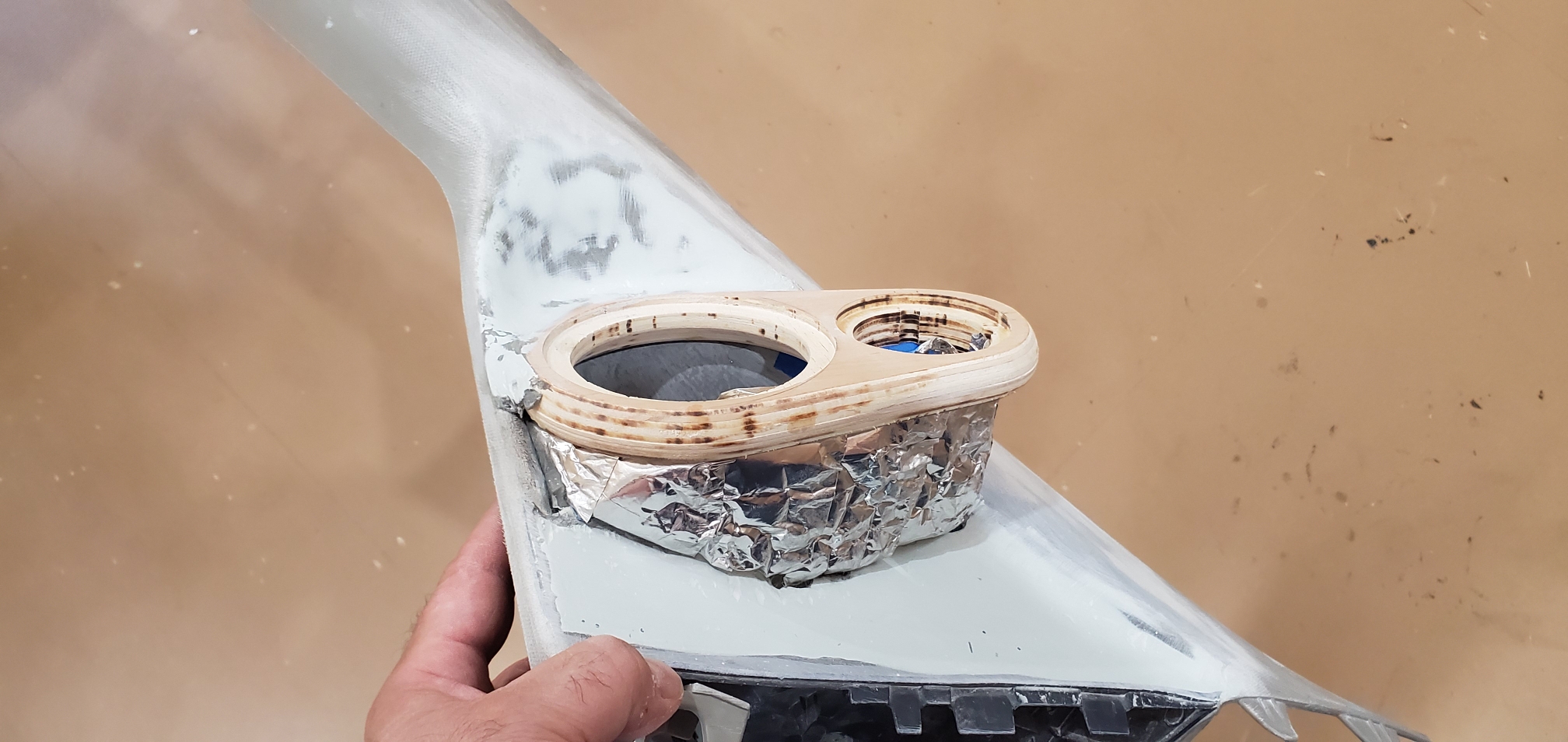

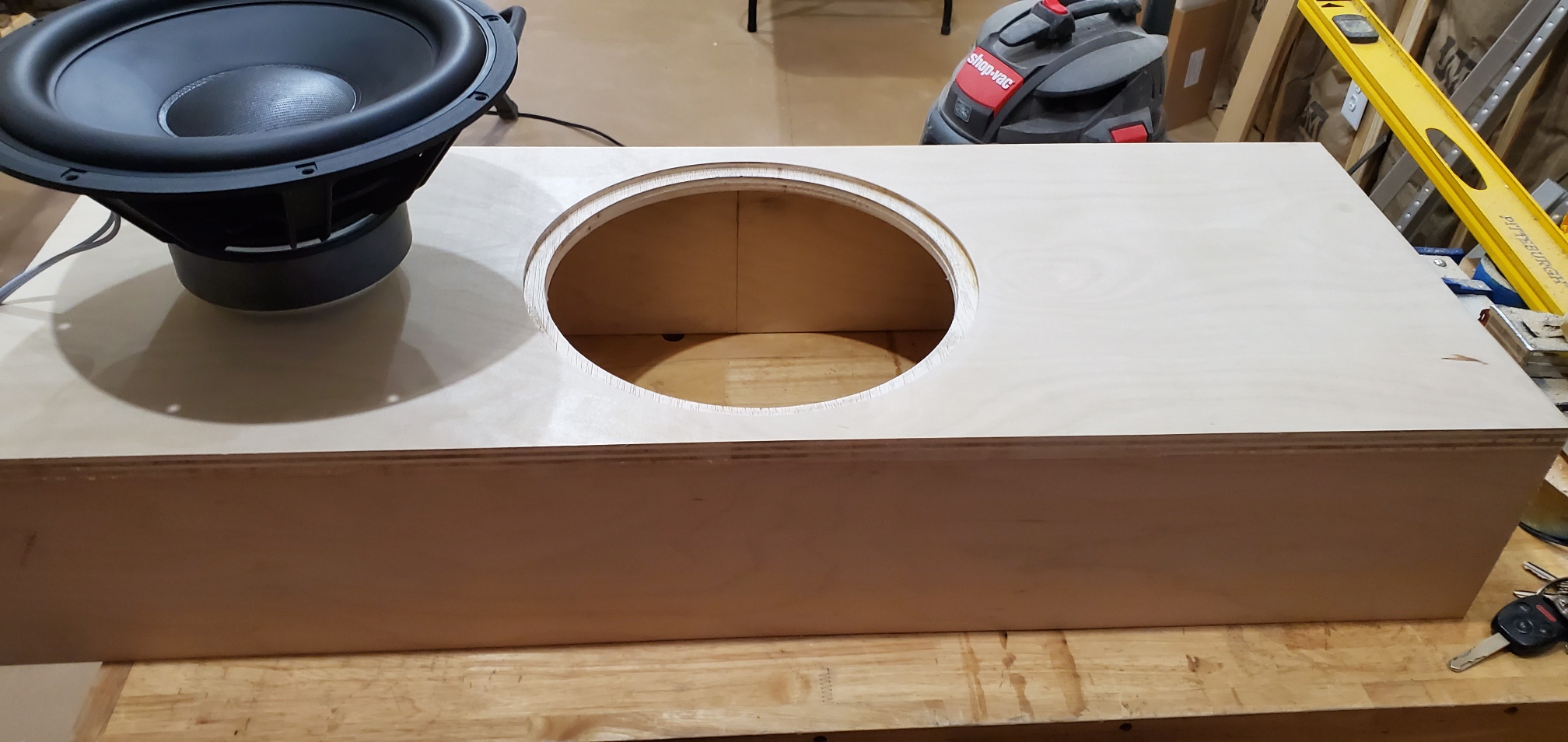

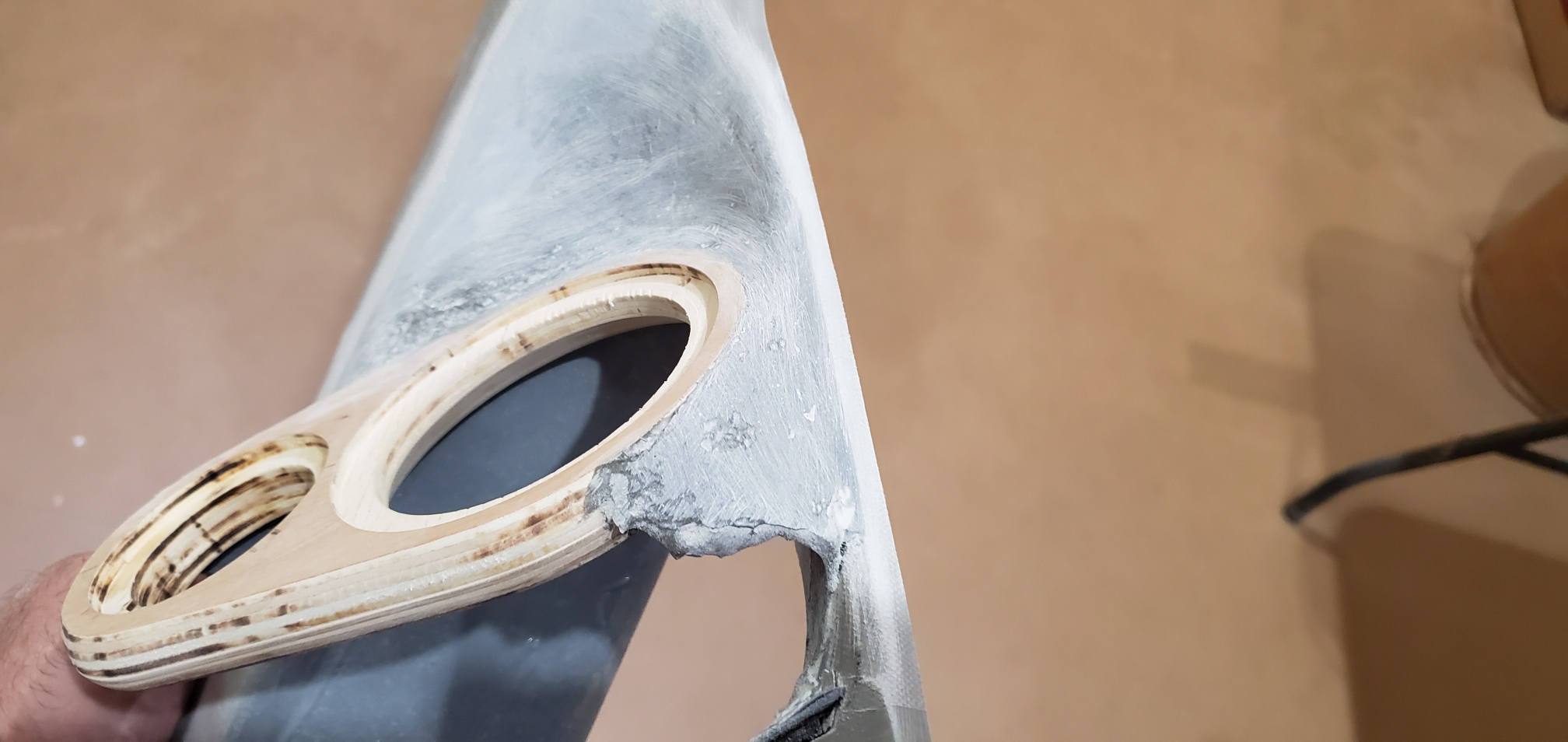

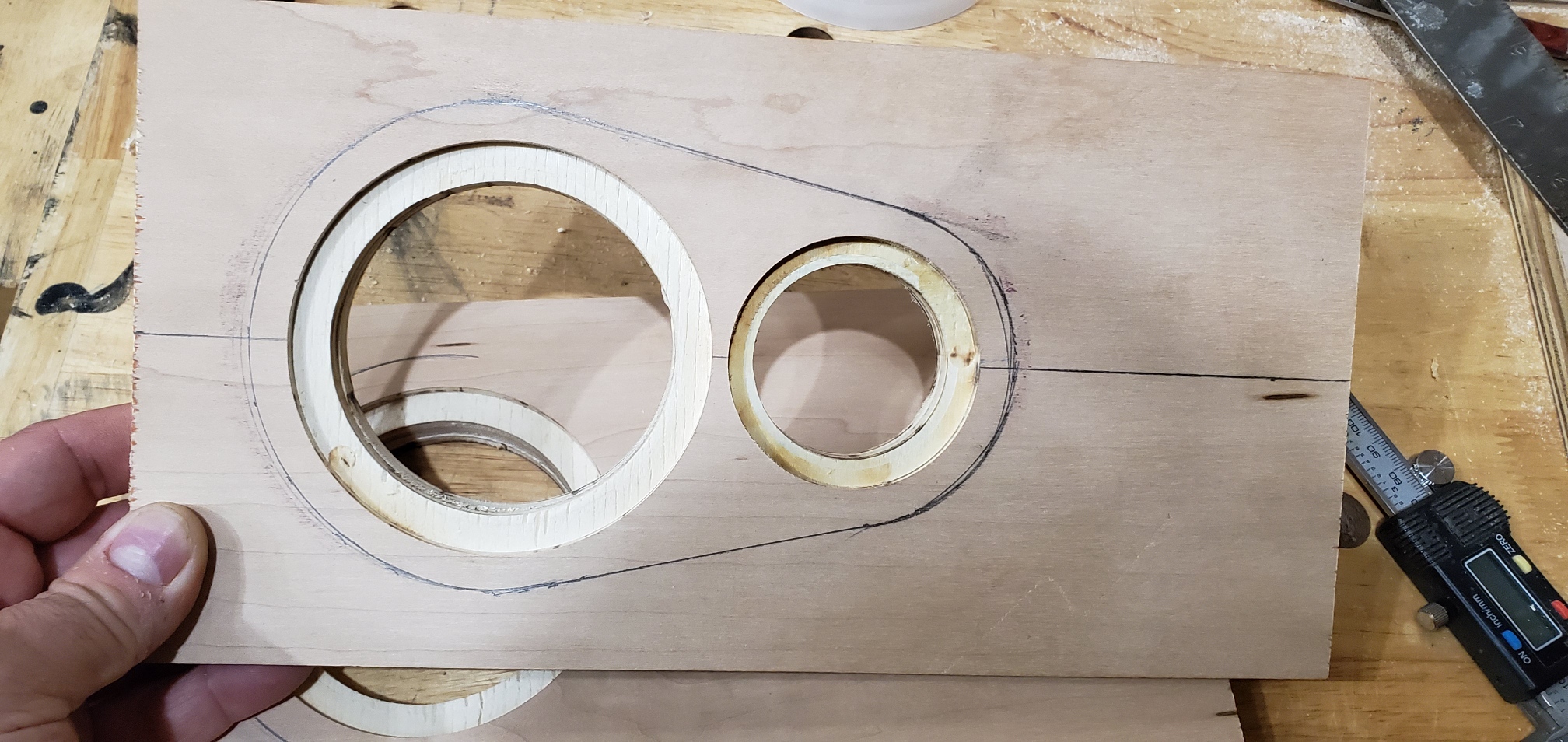

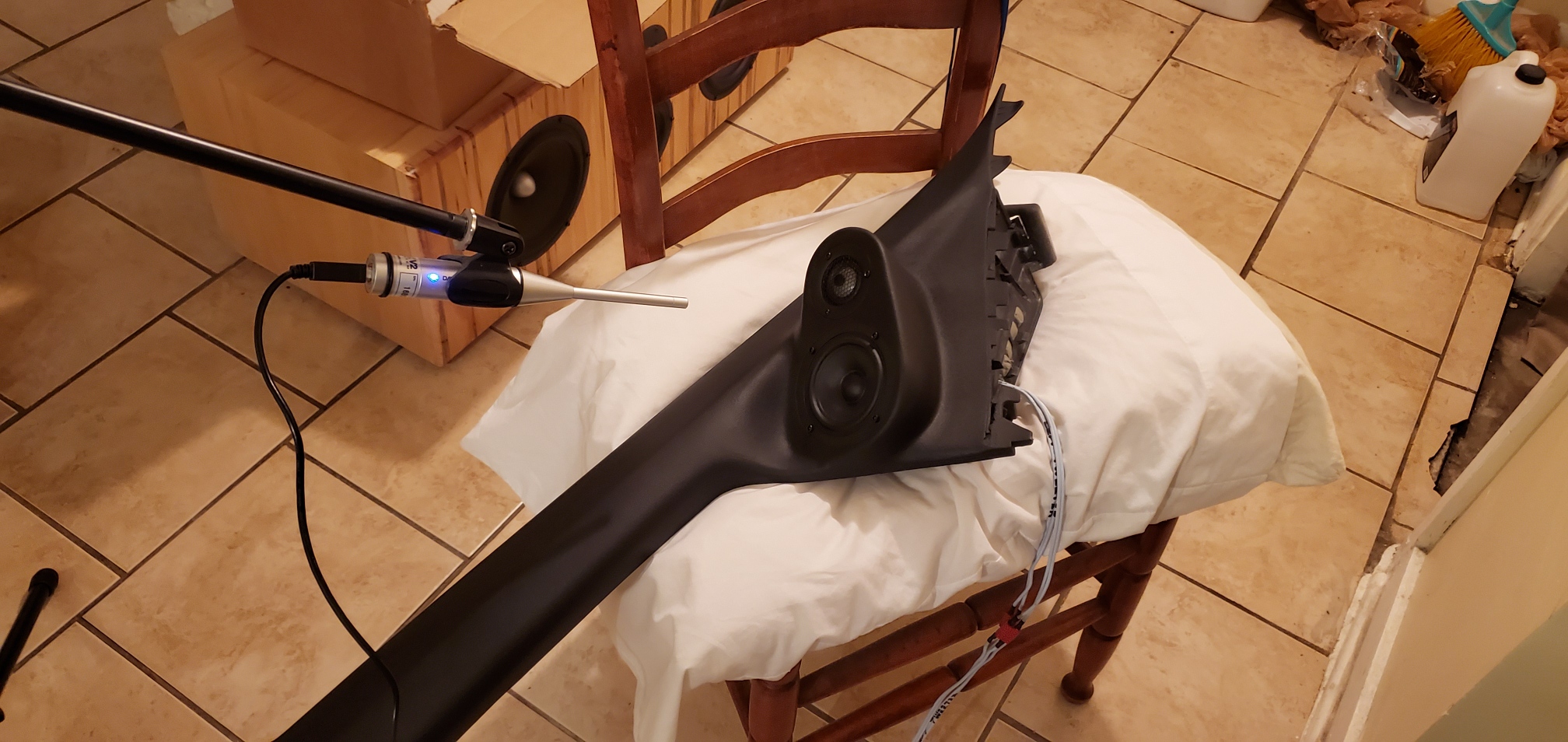

Hello gentlemen! Yes I know the forum is generally for home A/V but I thought you might like to see my madness which also carries over onto four wheels. I get bored from time to time and tell myself "it's possible to get things to sound good in the car" and before I know it a project is set in place. I've been involved with fabrication voodoo for twenty years now. The pillars are constructed by all manner of demonic alchemy including epoxies, fiberglass/ reinforced filler, expanding urethane foam, glazing putty, texture spray, spray paint, and a little wood for good measure. Enjoy the build pics!


Attachments

  • 20190719_195406.jpg
    639.7 KB · Views: 799
  • 20190719_214306.jpg
    820 KB · Views: 1,047
  • 20190720_134116.jpg
    571 KB · Views: 781
  • 20190723_150947.jpg
    618.9 KB · Views: 891
  • 20190723_181009.jpg
    983.6 KB · Views: 775
  • 20190725_180523.jpg
    919.4 KB · Views: 682
  • 20190725_190517.jpg
    676 KB · Views: 678
  • 20190725_204912.jpg
    653.5 KB · Views: 972
  • 20190727_125227.jpg
    954.4 KB · Views: 775
  • 20190728_163722.jpg
    850.5 KB · Views: 698
Part two


Attachments

  • 20190813_175020.jpg
    949.2 KB · Views: 876
  • 20190813_175133.jpg
    701.3 KB · Views: 915
  • 20190824_213717.jpg
    692.3 KB · Views: 728
  • 20190828_111621.jpg
    849.7 KB · Views: 1,388
  • 20190828_111750.jpg
    938 KB · Views: 1,378
  • 20190712_190347.jpg
    617.4 KB · Views: 755
  • 20190712_190433.jpg
    565.7 KB · Views: 693
  • 20190713_132421.jpg
    613.8 KB · Views: 658
  • 20190713_191536.jpg
    850.9 KB · Views: 626
  • 20190715_170312.jpg
    854.8 KB · Views: 712
Last part..


Attachments

  • 20190801_203120.jpg
    688.7 KB · Views: 567
  • 20190810_151525.jpg
    722.4 KB · Views: 579
  • 20190901_115024.jpg
    741.2 KB · Views: 590
  • 20190901_143921.jpg
    819.9 KB · Views: 602

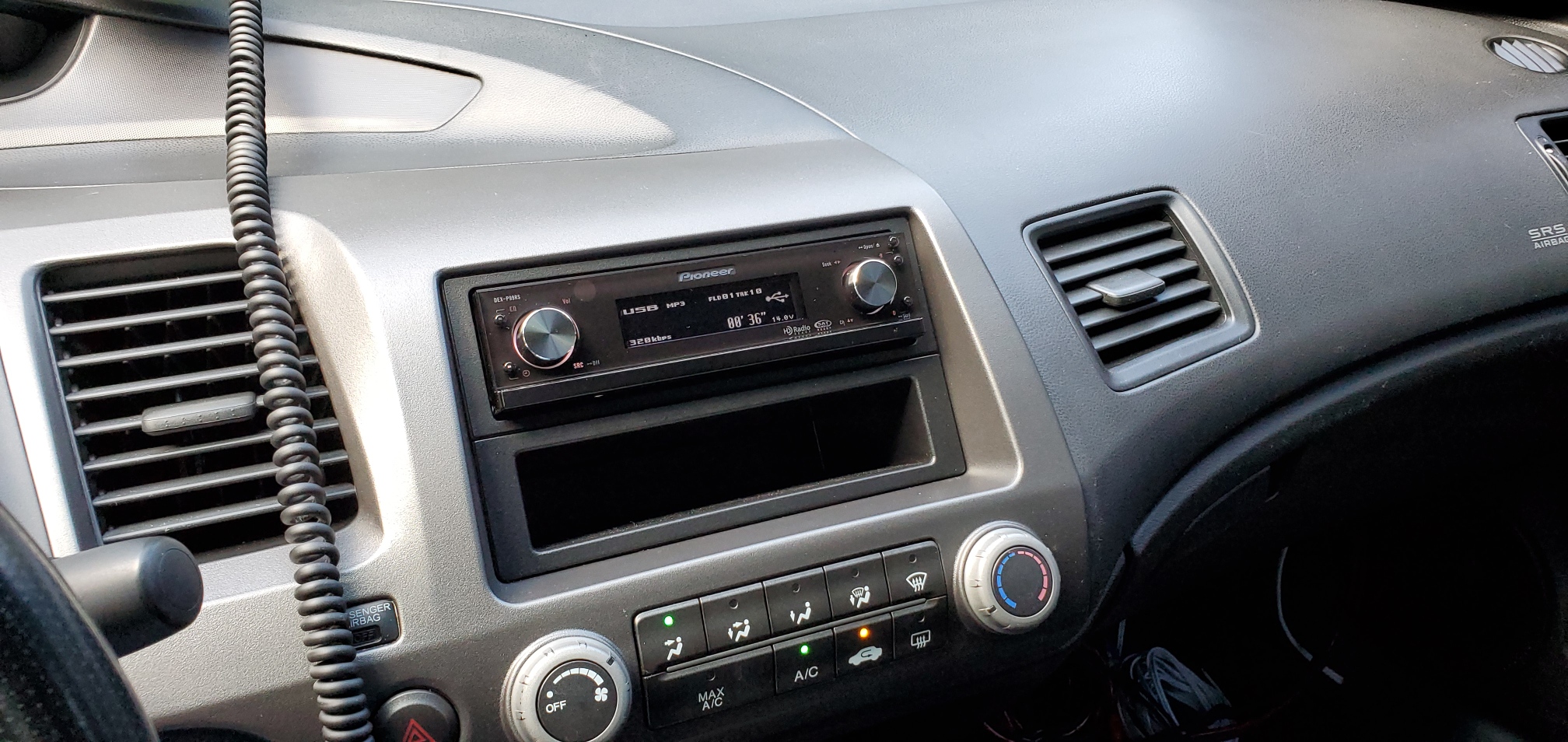

  • 20190828_111628.jpg
    833.5 KB · Views: 559

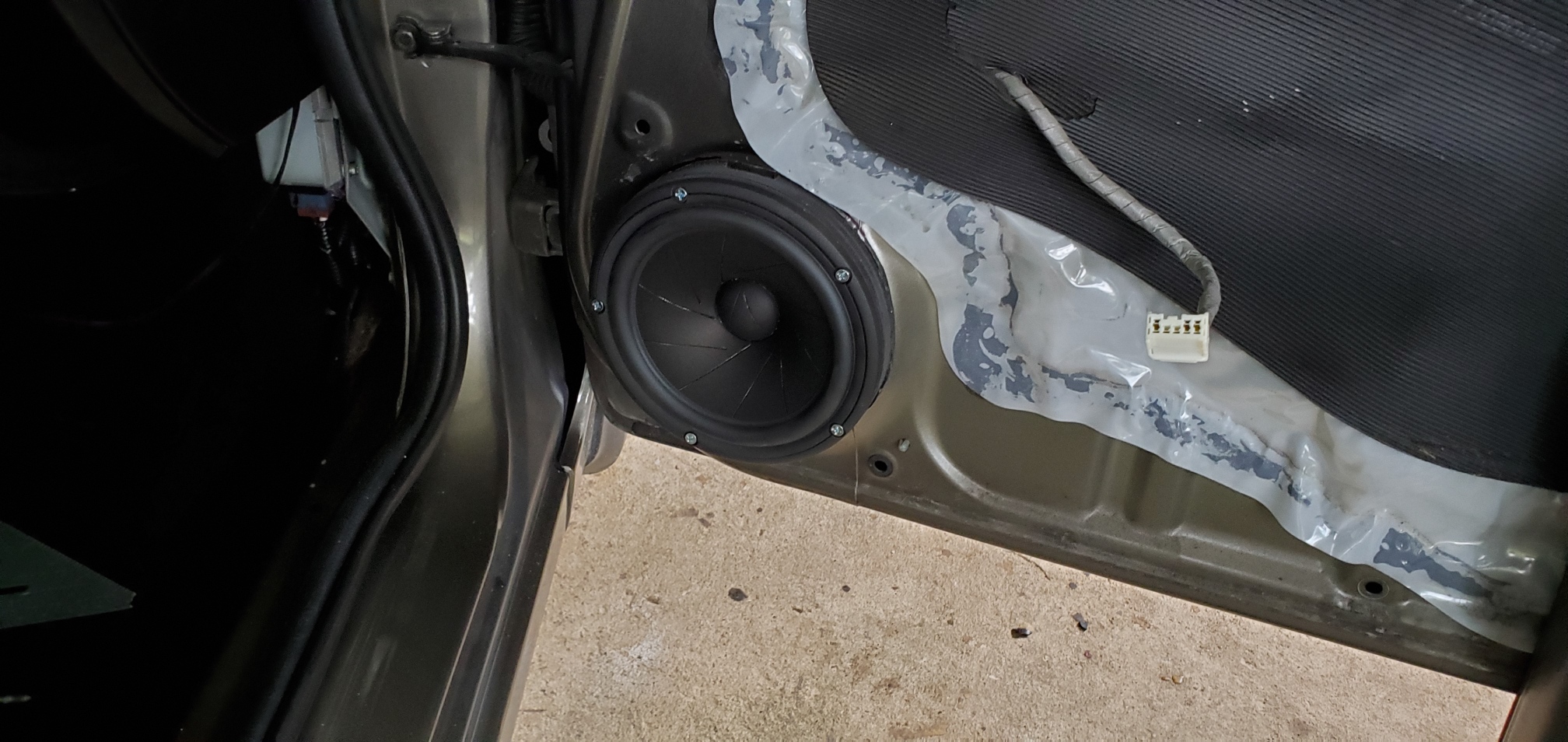

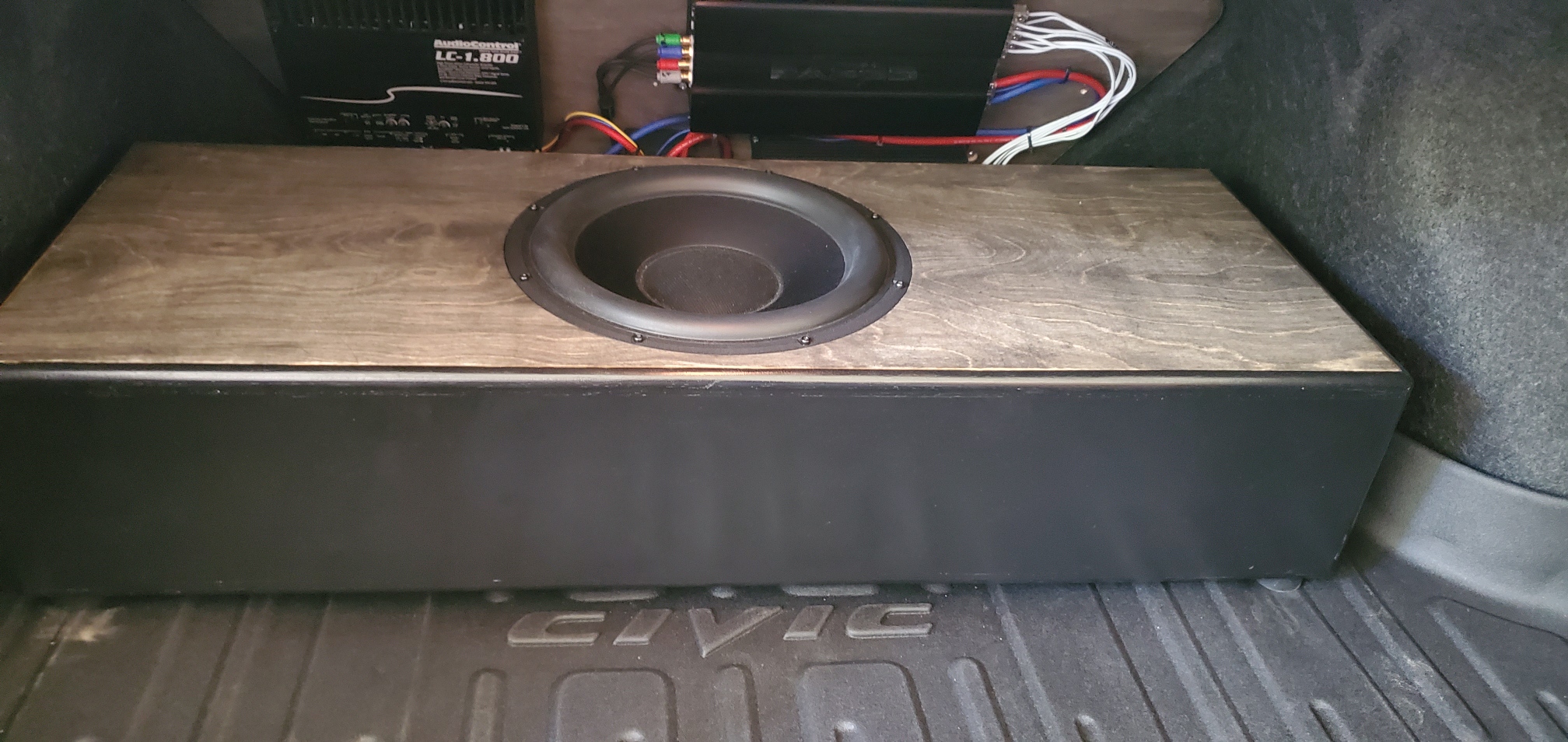

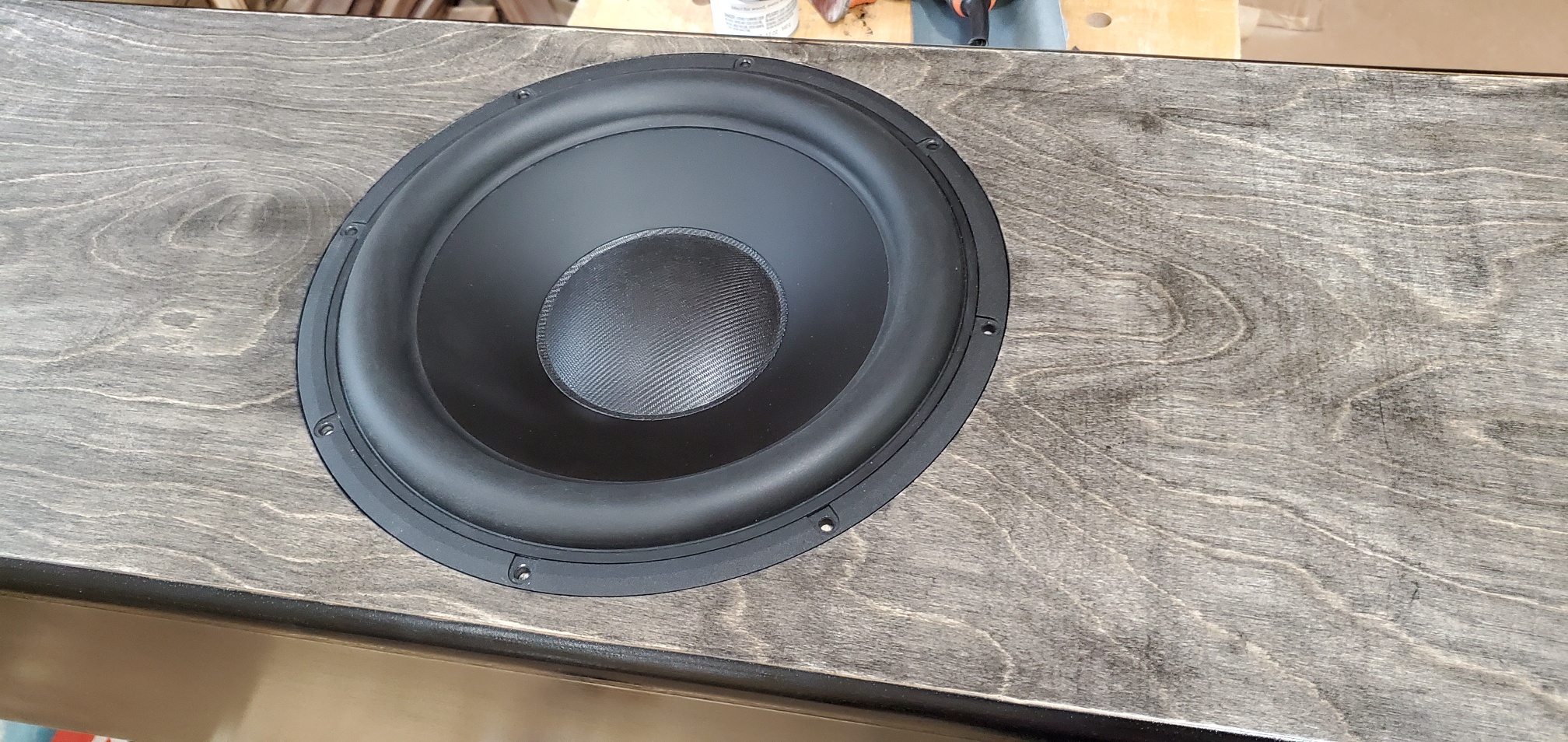

It is all actively filtered. All drivers are Scanspeak. Tweeters are the small format illuminator beryllium domes, midrange is the 3 inch 10f, doors are the revelator 7 inch, and the subwoofer is the Discovery 12 inch. The crossover points are all 24 Db @ 3kh HP for tweeters, mids are high passed @ 315 HZ / low passed to 3 kh, doors are low passed to 315 HZ / high passed to 65 HZ, and subwoofer is low passed @ 65 HZ 24db as well.

Sounds pretty good...Not a super loud setup but I never was going for that. I wanted to keep the setup lightweight hence the use of so much plywood rather than MDF( not really bonkers for the stuff anyway). Roughly 65 watts allocated to each of the tweeters/mids, 200 watts per door, and roughly 550 watts for the subwoofer....

Here is a little sample of the setup with some electronic music on youtube...Bass is a little heavy but its car audio and for this type of music its fun... Mids and highs are pretty impressive and even from this little clip with the phone mic you can get a sense of what kind of quality they have.
