Amp Assign

[GregKeyesPe]

Hey Audioholics,

I have a 4.2 system fronts and rears. What amp assign would you recommend?



I may have wired poop wrong

I have the same speaker in rear as the front.
I have the front L+R and Surround L+R. Should I put the rear speakers in the Surround Back?



[lovinthehd]

Might help to know the make/model of the gear in question....



[GregKeyesPe]

Marantz 5013

BW AM 1front and rear



[lovinthehd]

Okay, sounds like you're fine. You don't get rear surrounds until you go 7ch. Call them surrounds rather than "rears" until you have rear surrounds in a 7ch setup....



[GregKeyesPe]

Ok Thanks! I don’t even see a 5.1.
Just
zone 2
BI AMP
FRONT B
SURROUND DOLBY
SURROUND BACK

Kinda weird I don’t see a 5.1



[Trebdp83]



[GregKeyesPe]

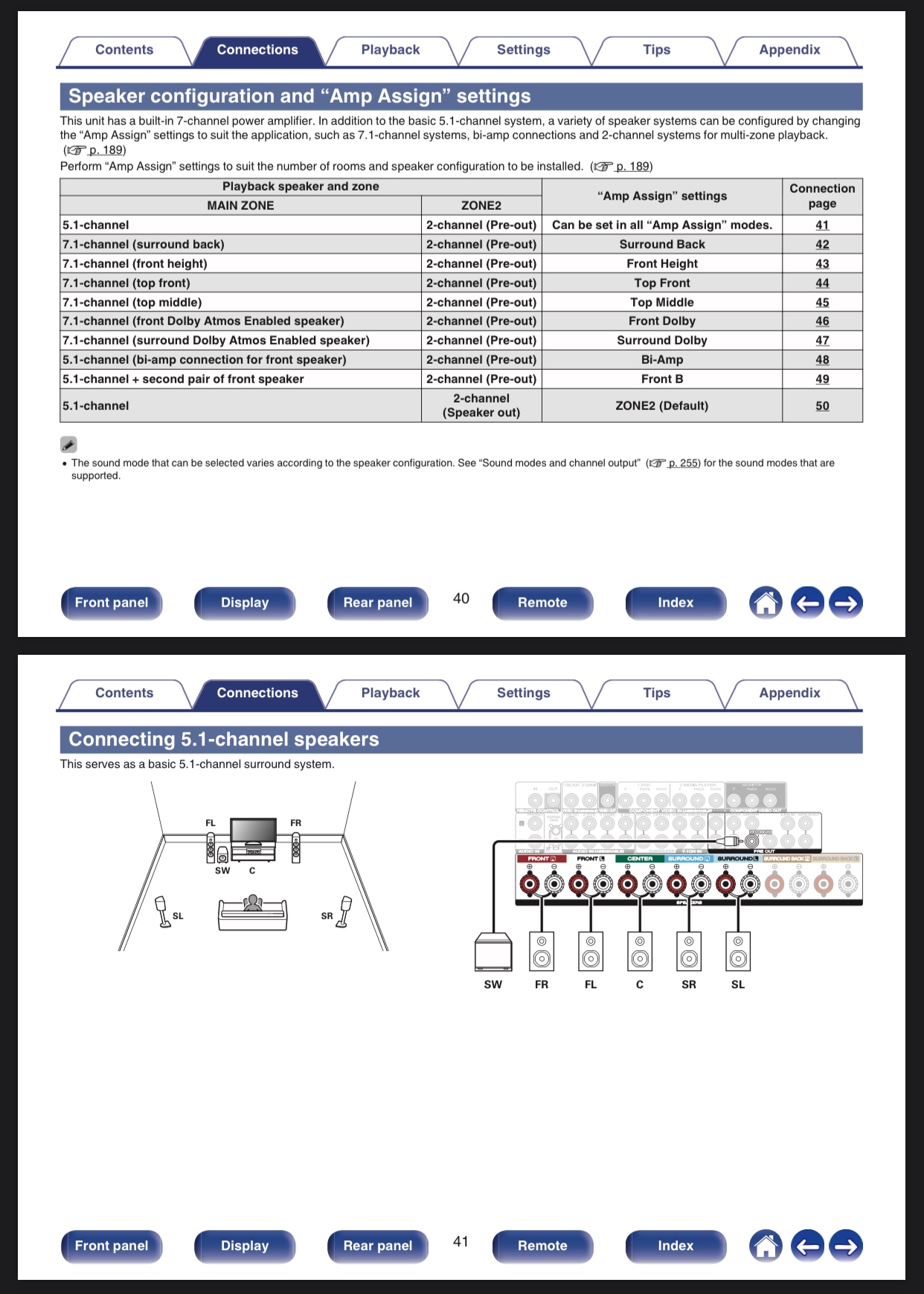

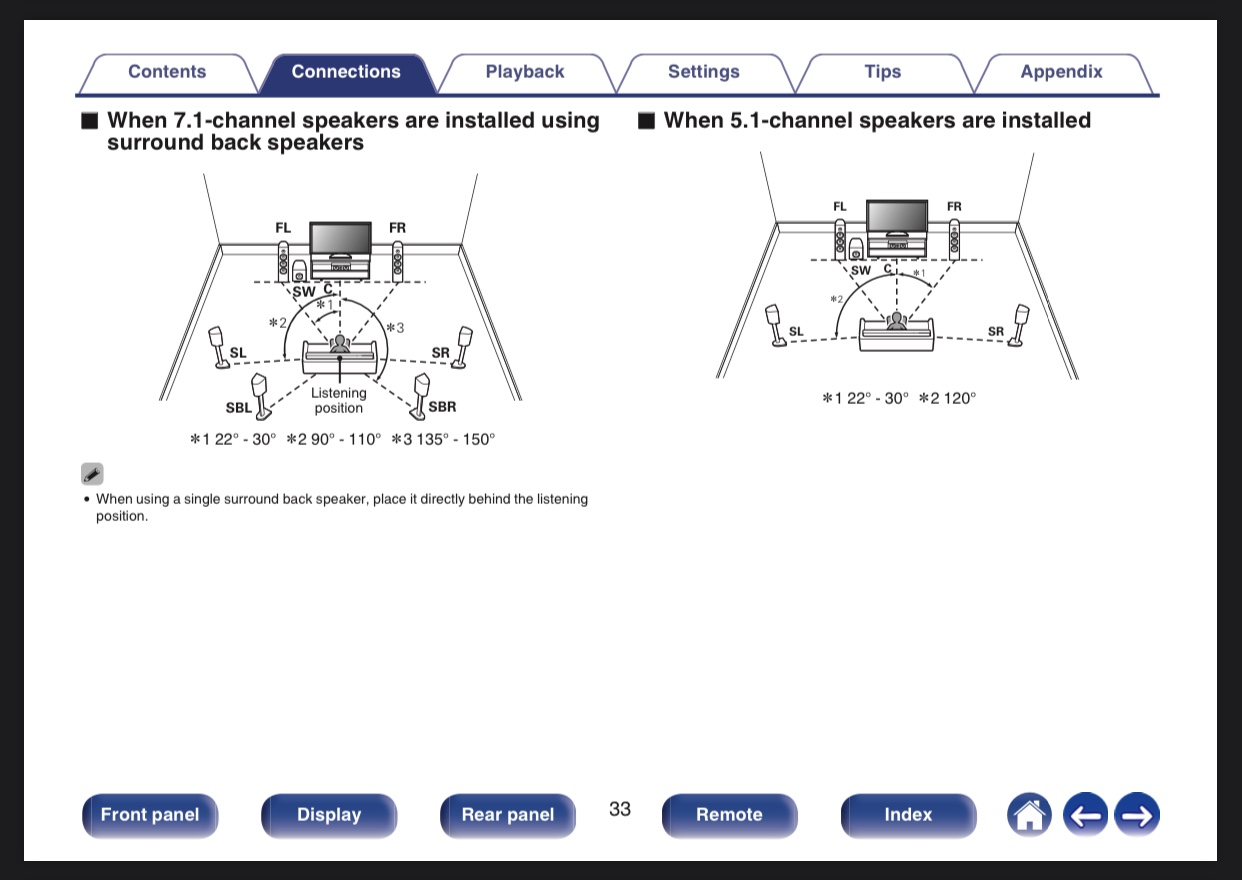

View attachment 45901View attachment 45902

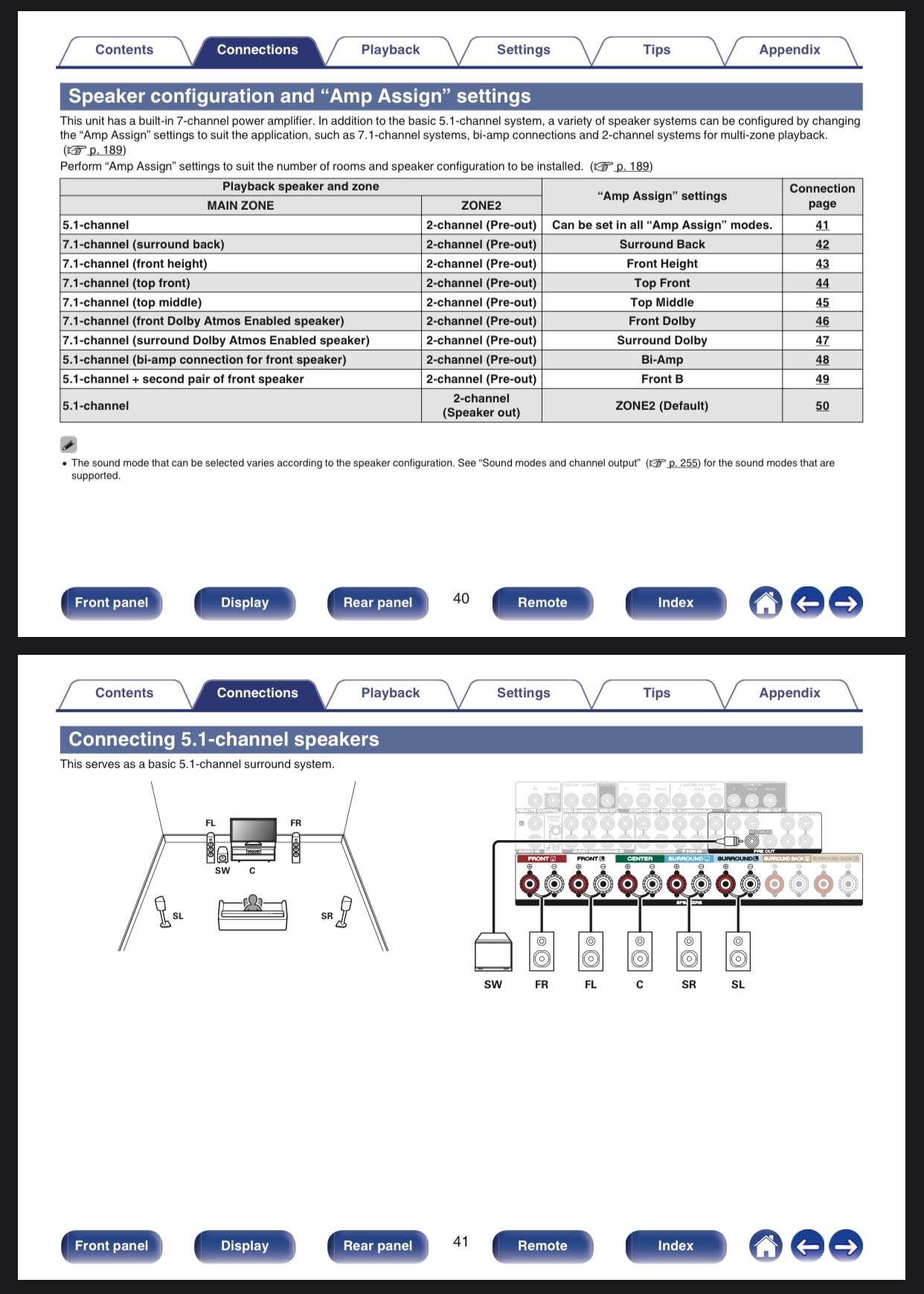

Hey! Thanks man much appreciate it. I went to page 49. I have the same front speakers as the rears. Would I need to change my speaker wire for the Surround Back R+L?

much help man thanks



[Trebdp83]

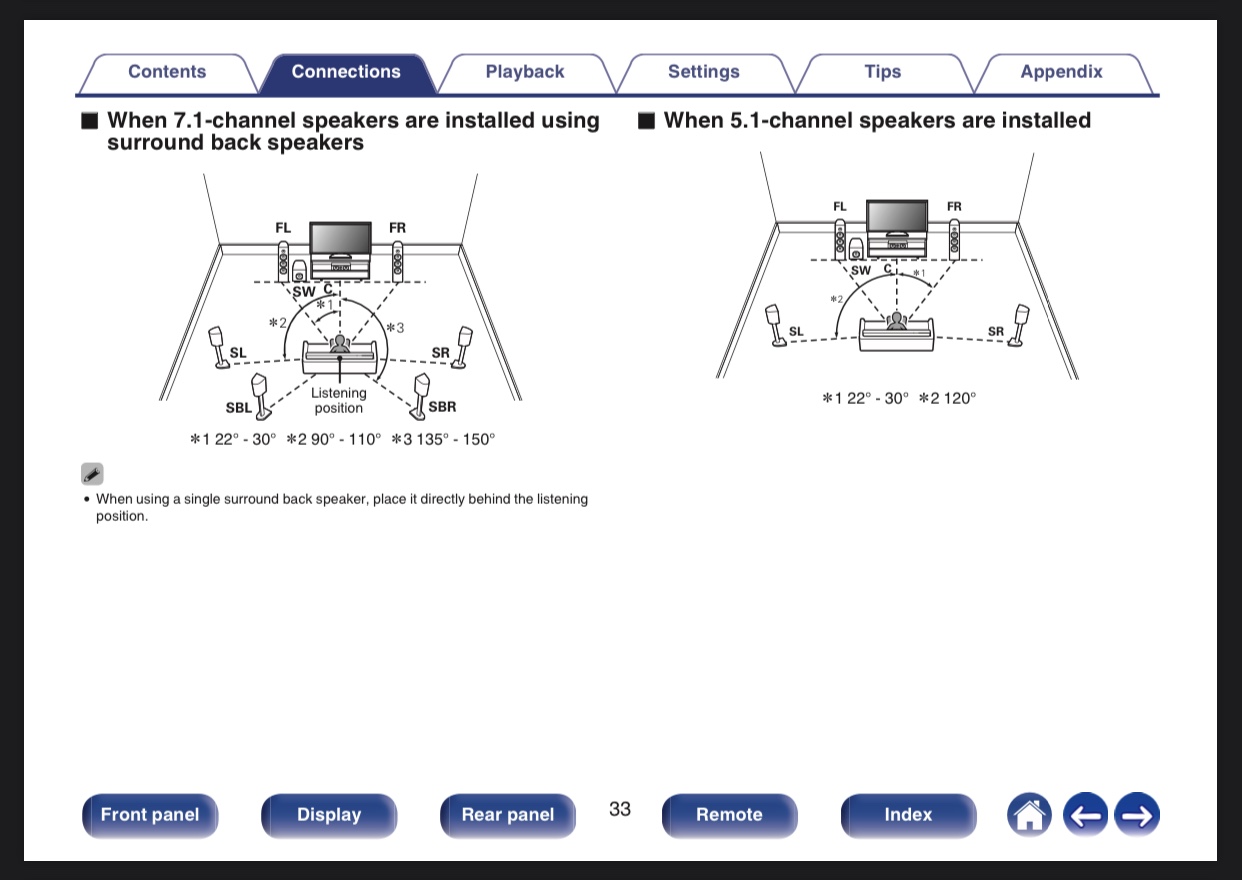

No, when using 5.1, or 4.1 as you are, surround back assignment and terminals are not used. They are for a second pair of surround speakers placed in back in a 7.1 setup. Your surround speakers should be placed as those in the 5.1 illustration.



[GregKeyesPe]

No, when using 5.1, or 4.1 as you are, surround back assignment and terminals are not used. They are for a second pair of surround speakers placed in back in a 7.1 setup. Your surround speakers should be placed as those in the 5.1 illustration.

OK THANKS! I will mess with it in the AM
