Help! Prewire setup for 7.2. Is this good?

[Dmg]

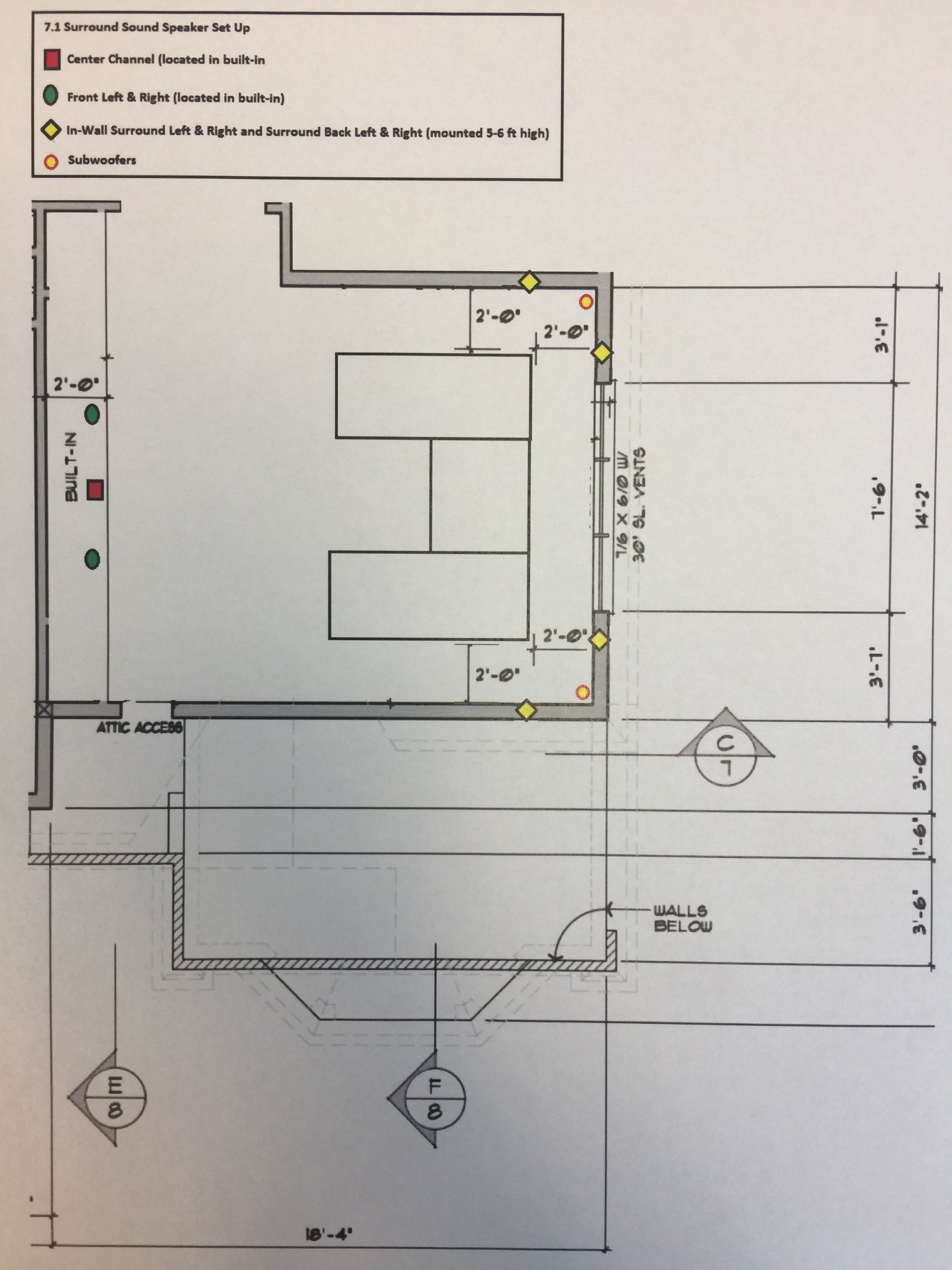

I'm having my media room prewired and want to ensure I'm not missing anything (see attached). We plan to have a large "u" shaped couch in the room. Any suggestions/comments? I've read a lot online and this is what I've created. They originally just wired a 5.1 in ceiling which I know would be terrible.



[WaynePflughaupt]

Doesn’t look bad. I’d think the back-wall speakers should be closer together, but it looks like you have structural limitations. I’d recommend putting all the back speakers 6-7 ft. high. If they’re too low they’re too easy to localize, and that’s distracting.

How big is the screen? Depending on its size, you might need to move the seating closer to it.

Regards,
Wayne A. Pflughaupt
