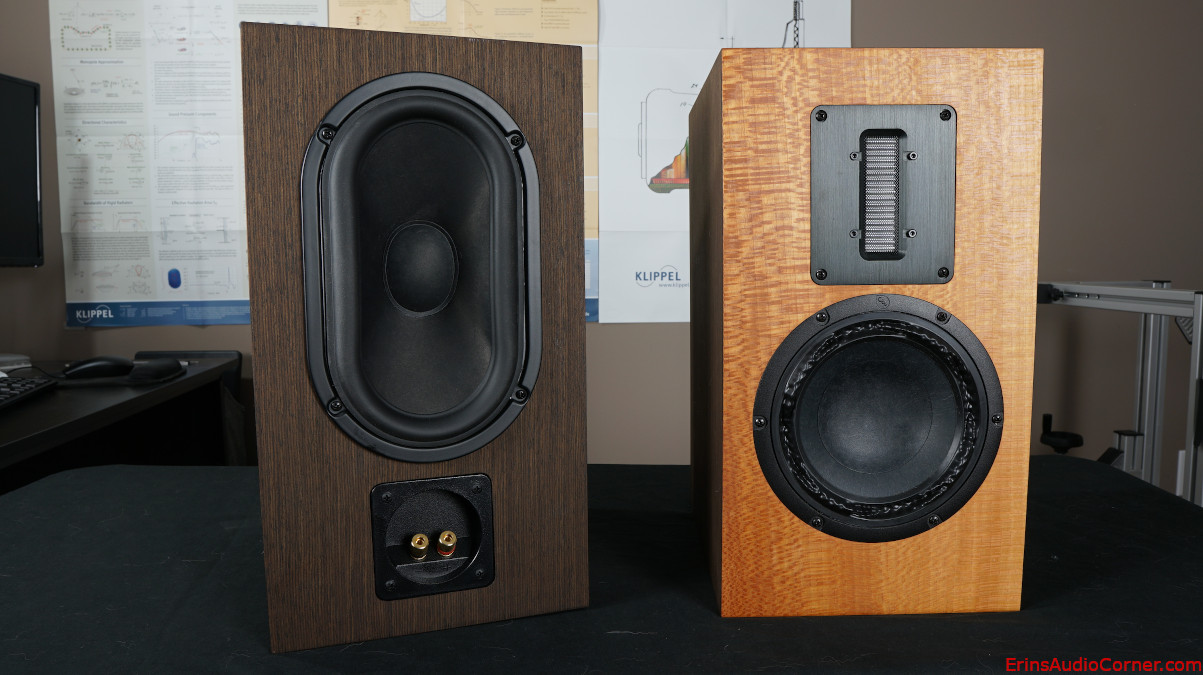

As always, I am copy\/pasting my review from my site below. Therefore, some text\/tables\/images may not transfer easily here so I am also providing the link to the full written review here:\nhttps:\/\/www.erinsaudiocorner.com\/loudspeakers\/selah_audio_purezza\/\n\n\n\n\nSelah Audio Purezza Bookshelf Speaker Review\n\nSunday, Sep 6, 2020\n\n\n\n\n\n\nIntro\nThis speaker comes to us from the mind of fellow DIY’r and speaker builder, Rick Craig of Selah Audio. You can find the manufacturer’s information here but I have provided some snippets below:\n\nDesign: 6.5” 2-way\nDrivers: Purifi woofer and BZ Labs CQ76B ribbon\/planar tweeter.\nFrequency Response: (+1\/-3dB) 40hz-20K\nBass Extension: -10dB @ 33hz\nImpedance: 5 ohms\/nominal, 4.2 ohms\/minimum\nSensitivity: 84.5dB \/1W\/1M\nSuggested Power: 30-100 watts\/channel RMS\nDimensions: 15.5”(H) x 8.5”(W) x 11”(D)\nWeight: 25 lbs.\nStandard Finishes: Walnut,Cherry,Maple, and Oak (other veneers available for quote upon request)\nPricing: $2,895\/pair (includes free shipping to the mainland USA)\n\nRick emailed me some additional information he wanted to note:\n\nThere are no grills but the front does have embedded magnets for them. I always supply fabric grills so you can mention that in your review. I omitted them with this pair since I mainly built them to be reviewed and for local demos. The grills of course could be added later on if I sell them.\nThis pair has an oil finish that’s very matte and more in vogue these days with the modern rustic interiors. The surface isn’t ultra smooth but can be buffed out more if needed - again, more in part to the rustic look. The front baffle is Sycamore veneer and sides reconstituted Wenge veneer. The cost for this pair is $2,895 and this includes shipping to the mainland USA. The cost range is $2,695 - $2,895 depending on the veneer used. We can also finish them with a medium gloss conversion varnish if someone wants more sheen than this pair exhibits.\nThe design axis is the center of the tweeter. A typical stand height is 24”-28”.\n\nAs an aside, I have also tested the Purifi Drive Unit from this speaker. You can find that full review here: https:\/\/www.erinsaudiocorner.com\/driveunits\/purifi_ptt65w04\/.\nObjective Data\nUnless otherwise noted, all the data below was captured using Klippel Distortion Analyzer 2 and Klippel modules (TRF, DIS, LPM, ISC to name a few). Most of the data was exported to a text file and then graphed using my own MATLAB scripts in order to present the data in a specific way I prefer. However, some is given using Klippel’s graphing.\nForeword: Subjective Analysis vs Objective Data (click for more)\n\n\n\n\nImpedance Phase and Magnitude:\nImpedance measurements are provided both at 0.10 volts RMS and 2.83 volts RMS. The low-level voltage version is standard because it ensures the speaker\/driver is in linear operating range. The higher voltage is to see what happens when the output voltage is increased to the 2.83vRMS speaker sensitivity test.\n\n\n\n\nFrom the above data we can see the following:\n\nThe tuning frequency of the enclosure is approximately 35Hz.\nThe minimum impedance dips to about 4.7 Ohms around 1.4kHz with a nominal impedance at 5 Ohms. A separate amplifier from the typical AVR would be needed to drive this speaker to typical playback volumes.\nThere are no signs of resonance (typically visible as bumps\/wiggles in the impedance that deviate from the curve).\n\n\n\nFrequency Response:\n\nNotes about measurements (click for info)\nThe measurement below provides the frequency response at the reference measurement axis - also known as the 0-degree axis or “on axis” plane - in this measurement condition was situated at the ribbon.\n\n\nThe mean SPL, approximately 85dB at 2.83v\/1m, is calculated over the frequency range of 300Hz to 3,000Hz.\nThe blue shaded area represents the ±3dB response window from my calculated mean SPL value. As you can see in the blue window above, the Selah Audio Purezza has a ±3dB response from 65Hz - 20kHz. Even better, a tighter window of linearity is provided in gray as ±1.5dB from the mean SPL and this speaker stays within this window from about 200Hz all the way to 20kHz (ignoring the 0.5dB around 3.7kHz). That is impressive!\nThe speaker’s F3 point (the frequency at which the response has fallen 3dB relative to the mean SPL) is 65Hz and the F10 (the frequency at which the response has fallen by 10dB relative to the mean SPL) is 34Hz. This speaker has nice low frequency extension.\nYou will most likely be drawn the low-frequency trim below ~300Hz, showing about 2.5dB drop from 300Hz to 100Hz. I asked Rick about this and this was his reply:\nThe amount of baffle step compensation was determined from how I thought most users would place the speaker (in close proximity to the rear wall). I could easily change the BSC if someone places it far out into the room and \/ or wants it voiced differently. There’s always the tradeoff of output capability \/ sensitivity in the midband and I wanted to keep the sensitivity more reasonable. The tuning is also slightly overdamped which contributes to what you measured as well.\nSo, Rick can adjust this amount of trim or you can use a DSP shelf-filter to boost this back up. Personally, in my initial listening tests I actually really, really liked the bass. I will discuss this more in the subjective evaluation below and give some of my thoughts on this.\nBelow are both the horizontal and vertical response over a limited window (90° horizontal, ±40° vertical). I have provided a “normalized” set of data as well. The normalization simply means that I took the difference of the on-axis response and compared the other axes’ measurements to the on-axis response which gives the viewer a good idea of the speaker performance, relative to the on-axis response, as you move off-axis.\n\n\n\n\n\n\n\n\nAs I said above, the provided frequency response graphs were given with a limited set of data. I measured the response of the speaker’s vertical and horizontal axis in 10-degree steps over 360-degrees. Nearly 70 measurements in total are represented in my data. As you can imagine, providing all those data points in a single FR-type graphic below is a bit overwhelming and confusing for the viewer. A spectrogram is an alternate way to view this full set of data. This takes a 360-degree set of data and “collapses” it down to a rectangular representation of the various angles’ SPL. I have provided two sets of data: one set for horizontal and one for vertical. Each set consists of 2 graphics:\n\nFull response (20Hz - 20kHz with the angles from 0° to ±180°) with absolute SPL values\nFull, “normalized” response (20Hz - 20kHz with the angles from 0° to ±180°) with SPL values relative to the 0-degree axis\n\nNormalized plots make it easier to compare how the speaker’s off-axis response behaves relative to the on-axis response curve.\n\n\n\n\n\n\n\n\n\n\nThe above spectrograms are the standard way of providing directivity graphics by most reviewers. Some prefer not to normalize the data. Some prefer to normalize the data. Either way, it’s a useful visual to get an idea of the directivity characteristics of a speaker or driver.\nHowever, these “collapsed” representations of the sound field are not very intuitively viewed. At least not to me. So, I came up with a different way to view the speaker’s horizontal and vertical sound field by providing it across a 360° range in a globe plot below. I have provided both an absolute SPL version as well as a normalized version of both the horizontal and vertical sound fields.\nNote the legend provided in the top left of each image which helps you understand speaker orientation provided in my global plots below.\n\n\n\n\n\n\n\n\n\n\nCEA-2034 (aka: Spinorama):\nThe following set of data is populated via 360-degree, 10° stepped, “spins” from vertical and horizontal planes resulting in 70 unique measurements. Thus, this is sometimes referred to as “Spinorama” data. Audioholics has a great writeup on what these data mean (link here) and there is no sense in me trying to re-invent the wheel so I will reference you to them for further discussion. However, I will explain these curves lightly and provide my own spin on what they mean (pun totally intended). Sausalito Audio also has a good write-up on these curves here. Furthermore, you can find discussion in Dr. Floyd Toole’s book “Sound Reproduction”. Here’s my Amazon affiliate link if you want to purchase it and help me earn about 2% of the price. And, finally, here is a great video of Dr. Toole discussing the use of measurements to quantify in-room performance.\nIn short, the CEA-2034 graphic below takes all the response measurements (horizontal and vertical) and applies weighting and averaging to sub-sets and can help provide an (accurate) prediction of the response in a typical room. If there is a single set of data to use in your purchase decision, this is probably it.\nAlternatively, click this arrow, if you want my quick take on what these curves mean without going to another site.\n\nBelow is a breakout of the typical room’s Early Reflections contributors (floor bounce, ceiling, rear wall, front wall and side wall reflections). From this you can determine how much absorption you need and where to place it to help remedy strong dips from the reflection(s). Again, as a pointer to the wide horizontal envelope, notice how the Rear Wall Bounces Curve is relatively high in amplitude (for a front-facing tweeter, at least) until about 10kHz.\n\n\nAnd below is the Predicted In-Room response compared to a general Target curve equaling -1dB\/octave.\n\n\nThe placement of the target curve’s starting point at 200Hz (which is my standard) combined with the previously discussed low-frequency trim of 2.5dB, makes the difference between the target curve and predicted in-room response more apparent than I suspect would actually be. So, I have also provided another version of this image below, using 300Hz as the starting point.\n\n\nYou may ask just how useful the above prediction is. Well, I’d be remiss for not delving in to that a little bit here. Please see my Analysis section below for discussion on this. :)\n\n\nHarmonic Distortion:\nMeasurements were completed in the nearfield (approximately 0.30 meters with room correction applied via Klippel’s ISC module) using Klippel’s TRF module. Multiple output levels were tested to provide the trend of distortion component profiles and to provide a comparison against other drive units I have tested. The SPL provided is relative to 1 meter distance, averaged in the noted bandpass region.\n\n\n\n\n\n\nMaximum Long Term SPL:\nThe below data provides the metrics for how Maximum Long Term SPL is determined. This measurement follows the IEC 60268-21 Long Term SPL protocol, per Klippel’s template, as such:\n\nRated maximum sound pressure according IEC 60268-21 §18.4\nUsing broadband multi-tone stimulus according §8.4\nStimulus time = 60 s Excitation time + Preloops according §18.4.1\n\nEach voltage test is 1 minute long (hence, the “Long Term” nomenclature).\nThe thresholds to determine the maximum SPL are:\n\n-20dB Distortion relative to the fundamental\n-3dB compression relative to the reference (1V) measurement\n\nWhen the speaker has reached either or both of the above thresholds, the test is terminated and the SPL of the last test is the maximum SPL. In the below results I provide the summarized table as well as the data showing how\/why this SPL was deemed to be the maximum.\nThis measurement is conducted twice:\n\nFirst with a 20Hz to 20kHz multitone signal\nSecond with a limited 80Hz to 20kHz signal\n\nThe reason for the two measurements is because it is unfair to expect a small bookshelf speaker to extend low in frequency. Applying both will provide a good idea of the limitations if you were to want to run a speaker full range vs using one with a typical 80Hz HPF. And you will have a way to compare various speakers’ SPL limitations with each other. However, note: the 80Hz signal is a “brick wall” and does not emulate a typical 80Hz HPF slope of 24dB\/octave. But… it’s close enough.\nYou can watch a demonstration of this testing via my YouTube channel: \nTest 1: 20Hz to 20kHz\nMultitone compression testing. The red line shows the final measurement where either distortion and\/or compression failed. The voltage just before this is used to help determine the maximum SPL.\n\n\nMultitone distortion testing. The dashed blue line represents the -20dB (10% distortion) threshold for failure. The dashed red line is for reference and shows the 1% distortion mark (but has no bearing on pass\/fail). The green line shows the final measurement where either distortion and\/or compression failed. The voltage just before this is used to help determine the maximum SPL.\n\n\nTest 2: 80Hz to 20kHz\nMultitone compression testing. The red line shows the final measurement where either distortion and\/or compression failed. The voltage just before this is used to help determine the maximum SPL.\n\n\nMultitone distortion testing. The dashed blue line represents the -20dB (10% distortion) threshold for failure. The dashed red line is for reference and shows the 1% distortion mark (but has no bearing on pass\/fail). The green line shows the final measurement where either distortion and\/or compression failed. The voltage just before this is used to help determine the maximum SPL.\n\n\nThe above data can be summed up by looking at the tables above but is provided here again:\n\nMax SPL for 20Hz to 20kHz is approximately 103dB @ 1 meter. The compression threshold was exceeded above this SPL.\nMax SPL for 80Hz to 20kHz is approximately 102dB @ 1 meter. The compression threshold was exceeded above this SPL.\n\nSurpringly, the max SPL test from 20Hz to 20kHz is higher than that of the 80Hz to 20kHz test. However, only 1dB different. A re-test yielded the same results.\n\n\nExtra Measurements:\n\n\nSimulated Response Using Low-Shelf Filter at 200Hz.\nGiven the LF trim of this speaker, I decided to see what a simple low-shelf filter would do in order to correct the response and flatten it. Think of this as a ‘tonal contour’. I applied a signle low-frequency shelf at 200Hz with a gain of 3.5dB and a Q of 0.70 to arrive at the below CEA-2034 response curve set.\n\n\nAs you can see, the response is incredibly smooth and flat wtih this single band of EQ applied. I discuss my subjective impressions of this adjustment in the subjective evaluation section below.\n\nNearfield measurements.\nMic placed about 0.50 inches - relative to the baffle - from each drive unit and port. While I tried to make these as accurate in SPL as I could, I cannot guarantee the relative levels are absolutely correct so I caution you to use this data as a guide but not representative of actual levels (measuring in the nearfield makes this hard as a couple millimeters’ difference between measurements can alter the SPL level).\nNotice how there is no resonance in the nearfield measurements. It’s not at all unusual to see port resonance or woofer resonance outside the crossover; these issues tend to creep up as distortion (linear and non-linear) in the speaker evaluation. However, there is none of that here.\n\n\n\nStep-Response.\n\n\n\n\n\n\nSubjective Evaluation:\nBefore I dive in to the subjective feedback let me first give you the layout of my room…\n\n\nIf the false wall part is odd to you, here's some background. I don't like seeing speakers when watching a movie. So, I built a false wall and used an acoustically transparent screen with speakers behind it. The wall is only 2x4's; no panels of wood or anything. Just a skeleton of a wall to give me something to attach the screen and acoustic treatment to. There is 2-inch wedge foam affixed to the 2x4 studs and between the false wall and back of the room are the front speakers (L\/C\/R & 18-inch subwoofers).\n\n\nMy demo music:\nTitle Artist Album Enjoy The SilenceDepeche ModeBest Of Depeche Mode, Vol. 1Higher LoveSteve WinwoodBack In The High Life (MFSL UDCD-611)24K MagicBruno Mars24K MagicMagicThe CarsHeartbeat City (MFSL)Everlasting LoveHoward JonesThe Best of Howard JonesKodachromePaul SimonThere Goes Rhymin’ SimonEverybody Wants To Rule The WorldTears for FearsSongs from the Big Chair (2014 Deluxe Edition - Disc 1)Know Your EnemyRage Against The MachineRage Against The Machine (Hybrid SACD)Doo Wop (That Thing)Lauryn HillThe Miseducation of Lauryn HillTell Yer MamaNorah JonesThe FallDon’t Save MeHAIMDays Are GoneHe Mele No LiloMark Keali’i Ho’omalu and Kamehameha Schools Children’s ChorusLilo And StitchWrapped Around Your FingerThe PoliceSynchronicitySledgehammerPeter GabrielSoFeel It StillPortugal. The ManWoodstockFree FallinJohn MayerWhere The Light IsWhiplashThe SwampersMuscle Shoals Has Got The Swampers\nNote: I don’t generally audition speakers with the typical “audiophile” music. I have thousands of high-quality albums ranging from pop to metal to jazz and all around. I don’t typically listen to “audiophile” music because I just don’t enjoy it. It is far more important that your evaluation music be something you are familiar with than it is to be esoteric for the sake of being esoteric. You also want to listen to music you enjoy because auditioning a stereo system shouldn’t feel like a chore. Such is the case in my evaluations. Besides, the subjective evaluation is purely to help tie to the objective data and make sense of what I am hearing to help you all get an understanding of how relevant the data is. As you will see below, my music selection did a great job at providing enough range for me to identify the issues that readily appear in the data.\n\nSubjective Analysis Setup:\n\nThe speaker was aimed on-axis with the vertical listening axis on the tweeter axis.\nI used Room EQ Wizard (REW) and my calibrated MiniDSP UMIK-1 to get the volume on my AVR relative to what the actual measured SPL was in the MLP (~11 feet from the speakers). I varied it between 85-90dB, occasionally going up to the mid 90’s to see what the output capability was. In a poll I found most listen to music in this range.\nAll speakers are provided a relatively high level of Pseudo Pink-Noise for a day or two - with breaks in between - in order to calm any “break-in” concerns.\nI demoed these speakers without a crossover. However, based on the simulations discussed previously, I demoed these both with and without EQ. The EQ applied was done so via my MiniDSP using a simple low-shelf filter with Q = 0.70, Gain = +3.5dB and Fo = 200Hz.\nComponents: Oppo BDP-103 playing music off my thumb drive feeding signal via HDMI to a Denon AVR-X4000 which then feeds in to a refurbished Adcom GFA-545 for power.\n\nI initially listened to these speakers and made my subjective notes before I started measuring objectively. I did not want my knowledge of the measurements to influence my subjective opinion. This is important because I want to try to correlate the objective data with what I hear in my listening space in order to determine the validity of the measurement process. I try to do a few listening sessions over a couple days so I can give my ears a break and come back “fresh”.\nUpon measuring and fiding the low frequency trim, I applied the EQ above and did another round of listening.\nBelow is the measured in-room response at the main listening position (MLP) in blue, across the front row of seats (red) both compared against the predicted in-room response (black). You can see the prediction follows pretty reasonably to what is measured in the seated position, aside from the major modal dip at ~125Hz and the dip between 2-3kHz.\n\nThe measurements\/prediction below do not have EQ applied.\n\n\n\n\n\n\n\n\nHere’s the rundown of my subjective notes (in quotes) and where it fits with objective: \nBefore I start, let me talk about Low Frequency Trim: As the speakers are (without low frequency adjustment) the sound is very, very neutral in the midbass region. What stood out to me the most in my initial listen is simply that the typical resonances of my room weren’t “activated” like they normally are. Which made for a pleasant listening session without a lot of overbearing ringing. I found 2000’s rock music to be more listenable as well. For example, I played Andrew W.K.‘s “Party Hard” on a whim. This song has multiple elements\/tracks in the mix thrown together and typically sounds very congested\/compressed because of the actual limited dynamic range itself… typically at higher volumes it just doesn’t sound as “fun” anymore. But with the Purezza “stock” it was enjoyable at higher output levels. I attribute this to both the low distortion but also the low frequency trim. When adding the low shelf EQ of +2.5dB @ 200Hz, bass quality improved to a more ‘expected’ fuller sound but brought out resonances in the room more easily.\nWith the above said, the below notes are a mixture of me using the speaker in “stock” form as well as with adding a low shelf.\n\nSoundstage Depth: Depth to stage (from my seated position to the front of the soundstage) is 5 feet in front of me. The stage depth itself (front to back of soundstage) is deeeeeep.\nSoundstage Width: Crazy wide.\nThe Purezzas possess the best soundstage I have heard to date. A very wide, very deep but also very symmetrical soundstage without one side lagging or the other side coming more forward or being more extended. Most people don’t seem to catch on to assymetry in soundstage but once you do, it’s hard to ignore and makes the stereo rendering seem fake (as if the illusion of stereo isn’t already, but I digress). These speakers do not have the problem.\nHigher Love - guitar playing in first verse sounds like it’s 5 feet to the left-front of me. Very deep soundstage. Timbre of midrange is so freaking pure. Shakers\/tambourines??? add layer of sound. Width is to wall 3 feet to the left.\n24k Magic - Excellent sound of ‘air’ even at moderate volumes (don’t have to turn it up to hear the details). 98dB. Even at 101dB the distortion is incredibly low but I can hear the woofers give (PR on back?). Crazy how loud these get with no hint of distortion.\nThe Cars - Magic - Shaker at R-C just comes out of stage. High Hat on L-C clear as a bell even though it’s somewhat low in the mix. Bass guitar; can hear the mechanical vibration of the string itself (in addition to the obvious amplified string).\nI wanted more ~ 120-160Hz but room mode there.\nTears For Fears - opening synth; can hear higher frequency portion I hadn’t heard before. Resonance in mix doesn’t show up as boomy in reproduction; actually helps give the acoustic space more room. Hadn’t noticed that before. Heard backup singers @ 2:00 I never noticed before.\nRATM - Know Your Enemy: Enveloping sound due to wide stage left and right\nTell Yer Mama - Great sense of space in the recording; not overly bright like sometimes ~ 0:39 + (background sound fading in and out)\nWrapped Around Your Finger - Bass line is incredible. Can hear the vibrado of it and it actually has a tangible feel as it energizes the room\n\nBottom Line\nThe Selah Audio Purezza is an incredible speaker. While the low frequency trend native to the speaker may be a problem to some, it can be resolved by Rick easily from what he says. I simply used an electornic low shelf filter to resolve this and was on my way (and, thus, my comments below are with this adjustment).\nThe soundstage is incredible. Focus is top notch. There were no gripes of mine once I made the LF trim correction (before this, the top end sounded a bit hot).\nThe distortion is at dangerously low levels. What does that even mean?… Well, most of the time distortion is an indicator that the volume is too loud. We hear distortion and we turn it down. With these speakers, I was often in the 95-100dB level (at 11 feet, no less) without having a clue it was that loud.\nI have yet to hear a speaker with this level of neutrality from a set of speakers this size. The midrange is so distortion-free that it’s like listening to your music collection with a new set of ears\/memory. I have to think that this is pushing the envelope for performance in this size class.\nI wholeheartedly recommend these if they are within your budget.\nContribute\nIf you like what you see here and want to help me keep it going, please consider donating via PayPal here. The cost to host images on the server exceeded $100 last month and are likely to only continue going up as I post more and more reviews. Therefore, any amount you can chip in to the cause would go a long way toward me keeping the grease on the cogs. \n\nYou can also join my Facebook and YouTube pages if you’d like to follow along with updates.
