With my 2.0 I will (obviously) be using a computer as a Juke.

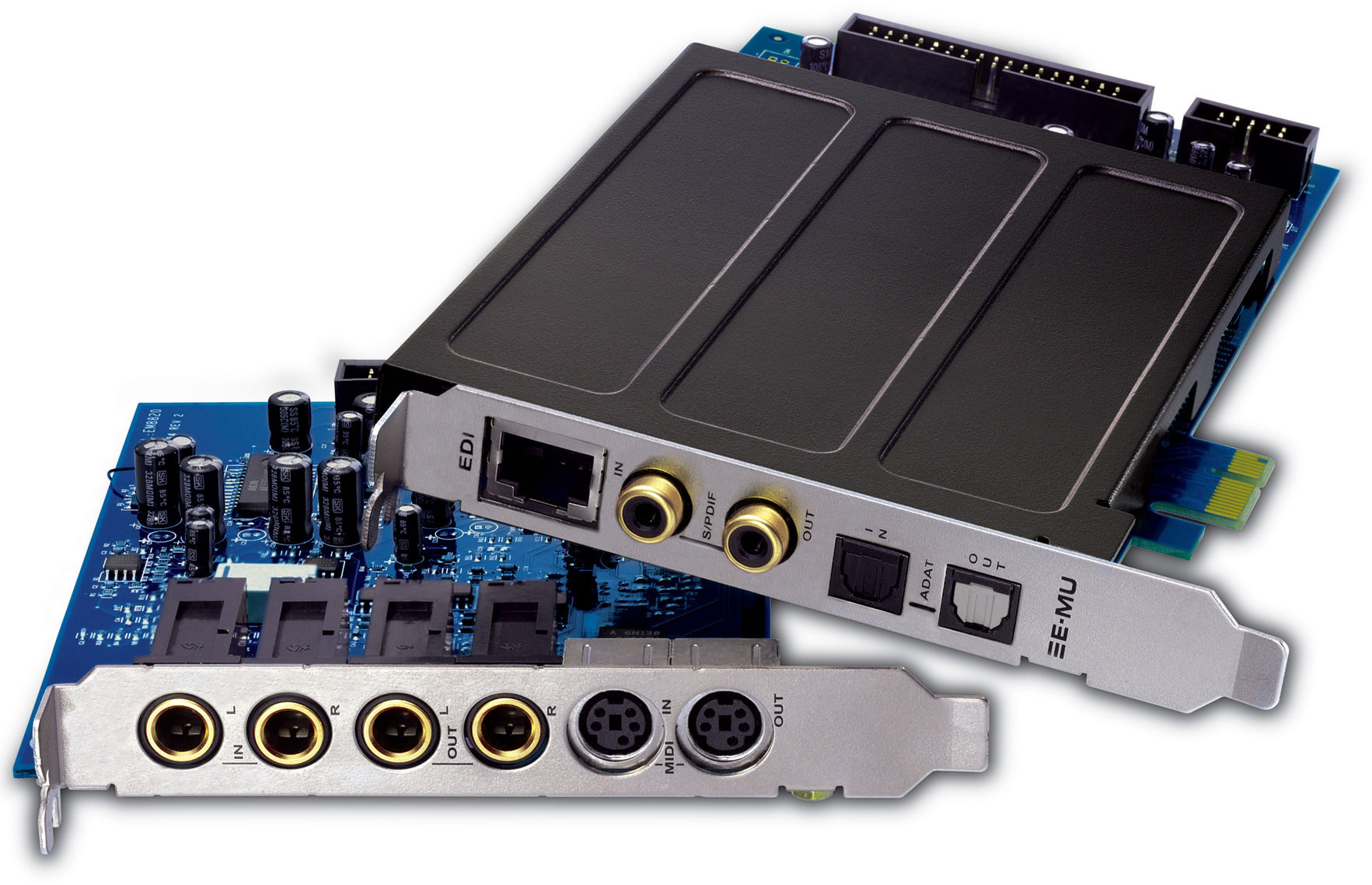

This is the sound card that I am seriously giving consideration to: E Mu 1212M PCIe.
It has both balanced/unbalanced/Optical/SPDIF/AES-EBU. So I can alsway bypass it's DAC and go external with AES-EBU. So far people have been raving about the SQ on this. All for under $160 and it give's me tons more options than a USB DAC.
Specs:
General
Sample Rates: 44.1, 48, 96, 192kHz from internal crystal or externally supplied clock (no sample rate conversion)
Bit Depths: 24-bit I/O, 32-bit processing
E-MU E-DSP™ 32-bit DSP with 67-bit accumulator (double precision w/ 3 headroom bits)
Hardware-accelerated, 32-channel mixing, and multi-effects processing
Zero-latency direct hardware monitoring w/effects
ASIO 2.0, WDM/MME/DirectSound Drivers
EDI (E-MU Digital Interface) proprietary 64-channel audio link over CAT-5 cable
Anti-Pop speaker protection minimizes noise during power on/off
Ultra-low jitter, clock subsystem: < 1 ns in PLL mode (44.1kHz, Opt. S/PDIF Sync)
Analog Line Inputs (2)
Type: servo-balanced, DC-coupled, low-noise input circuitry
A/D converter: AK5394A
Level (software selectable):
- Professional: +4dBu nominal, 20dBu max (balanced)
- Consumer: -10dBV nominal, 6dBV max (unbalanced)
Frequency Response (20Hz - 20kHz): +/- .05dB
Dynamic Range (1kHz, A-weighted): 120dB
Signal-to-Noise Ratio (A-weighted): 120dB
THD+N (1kHz at -1dBFS): -110dB (.0003%)
Stereo Crosstalk (1kHz at -1dBFS): < -115dB
Analog Line Outputs (2)
Type: Balanced, low-noise, 3-pole low-pass differential filter
D/A converter: CS4398
Level (software selectable):
- Professional: +4dBu nominal, 20dBu max (balanced)
- Consumer: -10dBV nominal, 6dBV max (unbalanced)
Frequency Response (20Hz - 20kHz): + 0.0/-.35dB,
Dynamic Range (1kHz, A-weighted): 120dB
Signal-to-Noise Ratio (A-weighted): 120dB
THD+N (1kHz at -1dBFS): -105dB (.0006%)
Stereo Crosstalk (1kHz at -1dBFS): < -115dB
Digital I/O
S/PDIF:
- 2 in/2 out coaxial (transformer coupled)
- 2 in/2 out optical (software switched at ADAT)
- AES/EBU or S/PDIF format (software selectable)
ADAT:
- 8 channels, 24-bit @ 44.1/48kHz
- 4 channels, 24-bit @ 96kHz (S-MUX compatible)
- 2 channels, 24-bit @ 192kHz
MIDI:
- 1 in, 1 out
Synchronization
Internal crystal sync at 44.1, 48, 96, 192kHz
External sample rate sync via
- ADAT (44.1 - 192kHz)
- S/PDIF (opt. or coax 44.1 - 96kHz)
