LG LHB725 SubWoofer connection

waynesmithhull

waynesmithhull

Audiophyte
Hello. Newbie here. I have an LG lhb725 home cinema system. The subwoofer just like the rest of the speakers has 2 wires. However the connector on the box has an orange plug type box.

I know I need to connect the sub wires to the plug and then plug it in the box but the player didn't come with a plug.




What's the plug called I need? I've searched Google for LG subwoofer plug etc but can't find anything that suits.

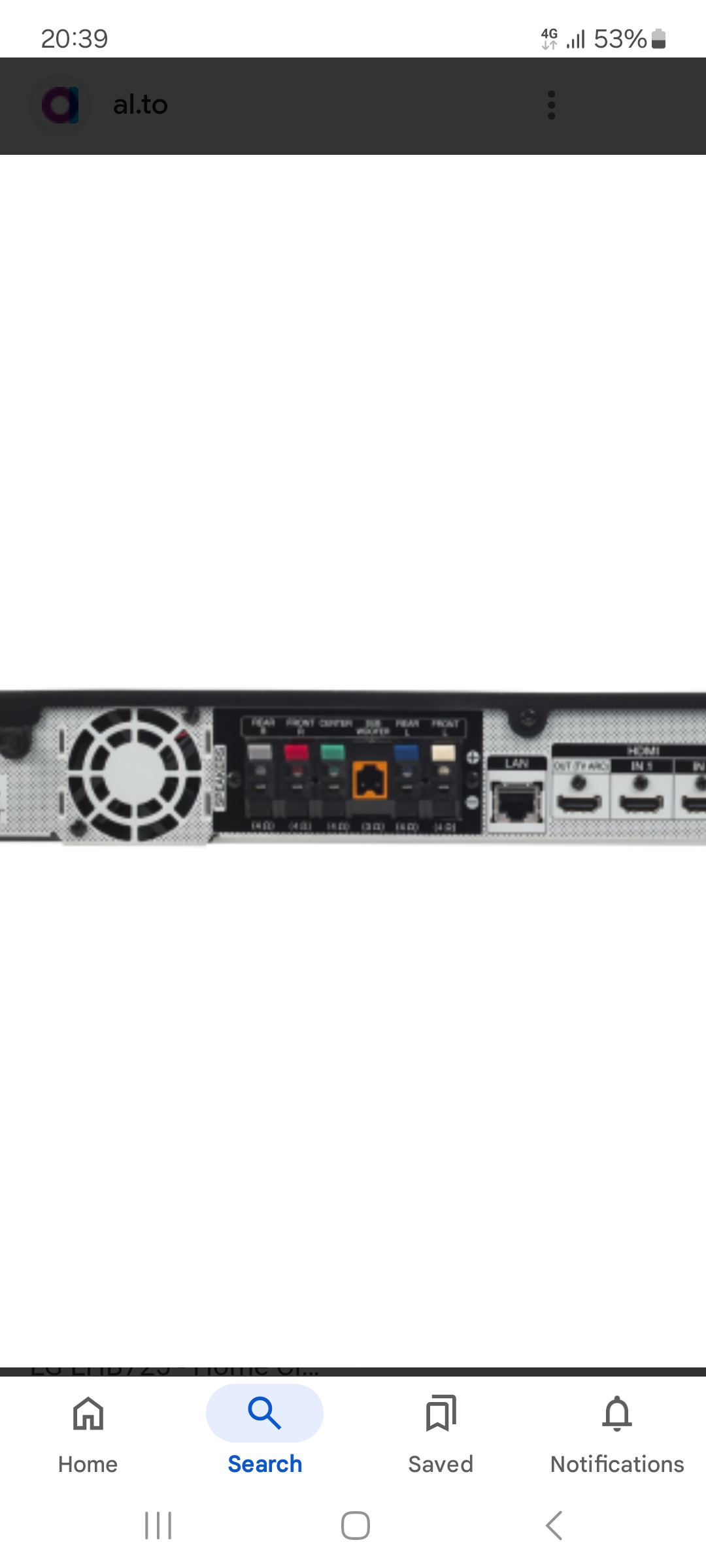

Picture attatched is rear of the box showing the orange fitting where the plug goes. Tia

WaynePflughaupt

WaynePflughaupt

Audioholic Samurai
Below is a screenshot from a Youtube video I found that shows the plug attached to the cable. Obviously proprietary - I’ve never seen anything like it. If it’s missing, that’s a real problem. You might contact LG parts dept. to see if the sell them. If not, I expect you’re flat out of luck.

LB sub plug.jpg


Regards,
Wayne A. Pflughaupt

Eppie

Eppie

Audioholic Ninja
If it is a powered subwoofer and the special cable carries audio, you could make your own cable. For line level audio you would need shielded (coaxial) cable, and solder pin connectors on the ends. Then use needle nose pliers to insert the connector over each pin on the receiver and the sub. The pin sockets are not sold separately. Parts Express only sells the pins (male end) and it looks like you need the socket (female end). You could purchase a molex socket, remove the female connectors and use them. Actually, looking at the photos, the plug comes in pieces with the sockets inserted manually, so no disassembly required. It's a bit of a kludge, but if you can't purchase the proper plug from LG then I see few other options.
https://www.parts-express.com/Molex-4-Pin-Connector-Kit-0.093-2-Sets-092-556?quantity=1
Molex 0.093 package.jpg

TLS Guy

TLS Guy

Seriously, I have no life.
Hello. Newbie here. I have an LG lhb725 home cinema system. The subwoofer just like the rest of the speakers has 2 wires. However the connector on the box has an orange plug type box.

I know I need to connect the sub wires to the plug and then plug it in the box but the player didn't come with a plug.




What's the plug called I need? I've searched Google for LG subwoofer plug etc but can't find anything that suits.

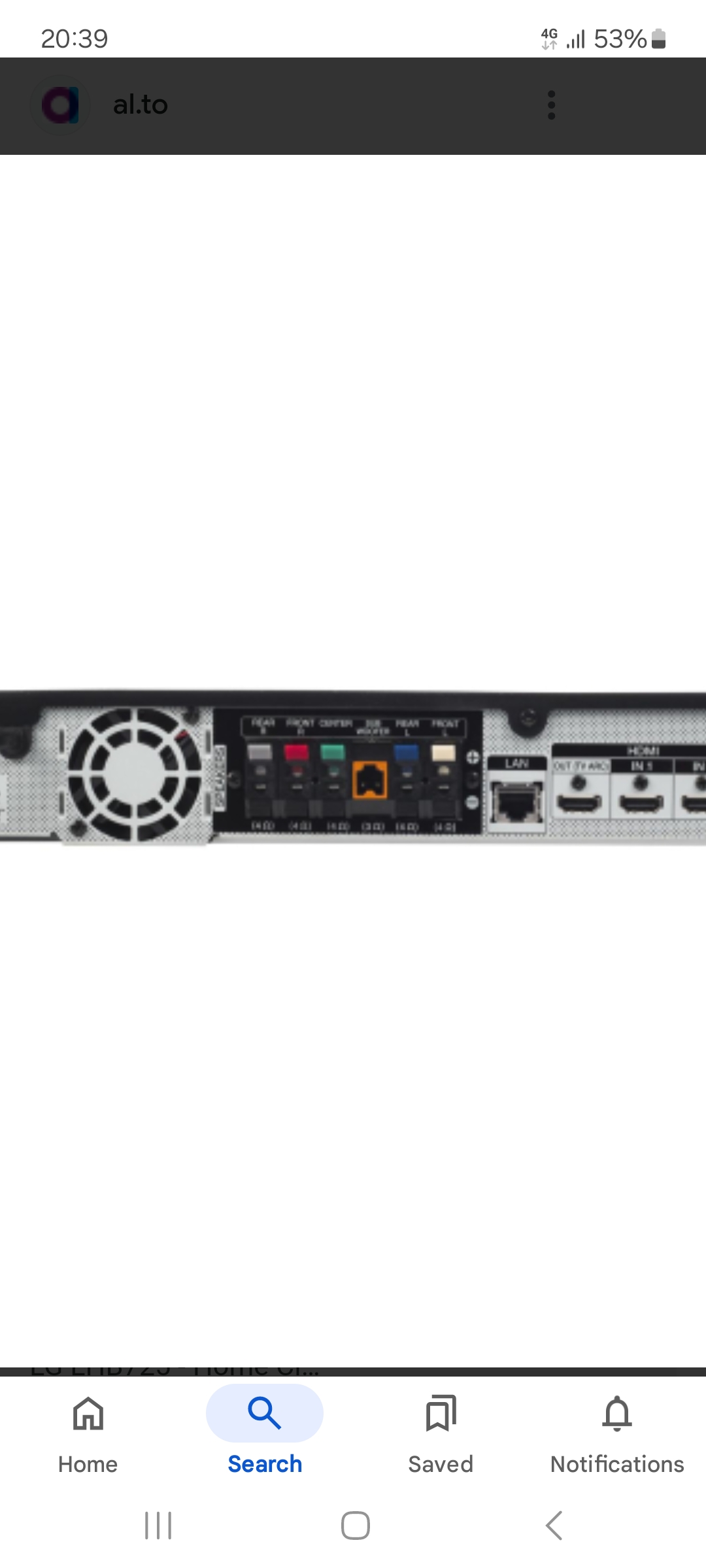

Picture attatched is rear of the box showing the orange fitting where the plug goes. Tia View attachment 70456
I have confirmed that is a proprietary cable that was made by LB. You are unlikely to find one. I can not find one listed. You have an easy solution though given that it is a passive sub.

You need to install traditional speaker terminals.


With a jigsaw cut the appropriate cut out on the back of the sub. Now locate the speaker wires and solder them to the terminals. Now screw the above terminal cup to the speaker. Problem solved.

TLS Guy

TLS Guy

Seriously, I have no life.
I have confirmed that is a proprietary cable that was made by LB. You are unlikely to find one. I can not find one listed. You have an easy solution though given that it is a passive sub.

You need to install traditional speaker terminals.


With a jigsaw cut the appropriate cut out on the back of the sub. Now locate the speaker wires and solder them to the terminals. Now screw the above terminal cup to the speaker. Problem solved. It would help if you opened the case and posted some pictures of the inside.
