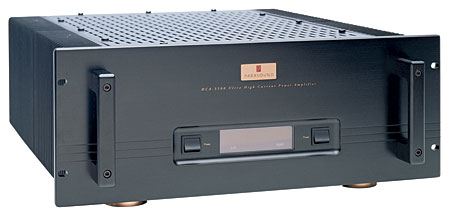

PARASOUND 500 WATT PER CHANNEL AMP
Excellent condition - faceplate has no scratches. Sounds as good as when I purchased it. It doesn't match my other amp so I'm replacing it but I'll need it until I sell it or get a matching amp. Local pickup only. I still have the paperwork but I no longer have the original box. If you need help, I will carry it to your car for you. Cash only please. I'm not sure what a good price would be for this but since I see a guy selling his on ebay for $1900, I think this would be reasonable.
FEATURES
• Independent power supplies for each channel for true dual-monaural operation
• Massive encapsulated 1.4 kVA toroid power transformer for each channel
• 97,600 uF power supply capacitance for each channel
• Multiple polystyrene film bypass capacitors in power supply
• Direct coupled design uses no inductors or capacitors in the signal path
• DC servo direct-coupled audio circuits with 0.5 Hz rolloff
• Output transistors direct-coupled to speakers without LRC networks
• Cascode Class A input stages with matched J-FET pairs
• Hand-picked complementary MOSFET transistors in high voltage driver stage
• High-bias Class A/AB operation provides 15 Watts of pure Class A operation
• 8 complementary pairs of 15 ampere 60 MHz output transistors per channel
• High-quality Neutrik XLR jacks for balanced inputs
• Two sets of gold-plated metal structure RCA input jacks for balanced operation
• Two sets of gold-plated 5-way binding posts facilitates bi-wiring
• Multiple protection circuits, temperature sensors and silver-cadmium relay protection
• Glass epoxy circuit boards, double-sided for precision
• Two hand-made audiophile-grade AC power cords-separate for each channel
SPECIFICATIONS
• Continuous Power Output - Stereo:
350 watts RMS x 2, 20 Hz - 20 kHz, 8 Ω, both channels driven;
500 watts RMS x 2, 20 Hz - 20 kHz, 4 Ω, both channels driven
650 watts RMS x 2, 20 Hz - 20 kHz, 2 Ω, both channels driven
• Current Capacity:
120 amperes peak per channel
• Slew Rate:
> 200 V/µsecond
• Power Bandwith:
2 Hz - 150 kHz, +0/-3 dB at 1 watt
• Total Harmonic Distortion:
<0.025% at full power; < 0.01% at typical levels
• IM Distortion:
<0.03%
• TIM:
unmeasureable Dynamic Headroom: > 1.5 dB
• lnterchannel Crosstalk:
> 95 dB at 1 kHz, > 80 dB at 20 kHz
• Input Sensitivity:
1 V for 28.28 V; 2 V for full output
• Input Impedance:
100 k Ω
• S/N Ratio:
> 120 dB, full power
• Damping Factor:
> 1000 at 20 Hz
• Power Consumption:
1200 watts
• Dimensions:
w 19" x h 7" x d 22", h 7 5/8" with feet
• Net Weight:
85 lb.
If you want pictures you can go to e bay and look up that model or I can e-mail you a picture or two.
