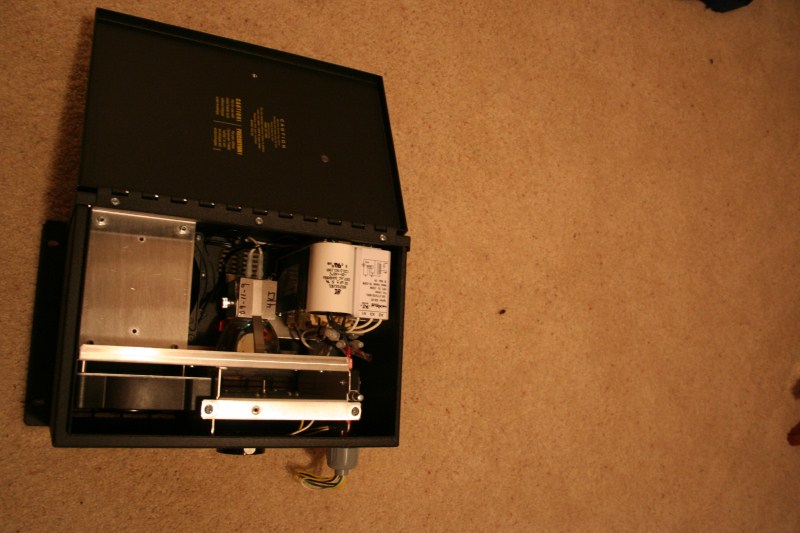

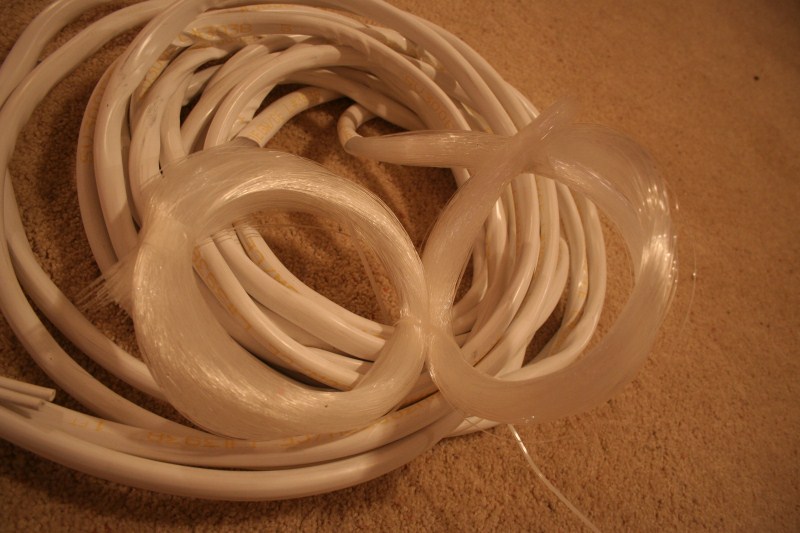

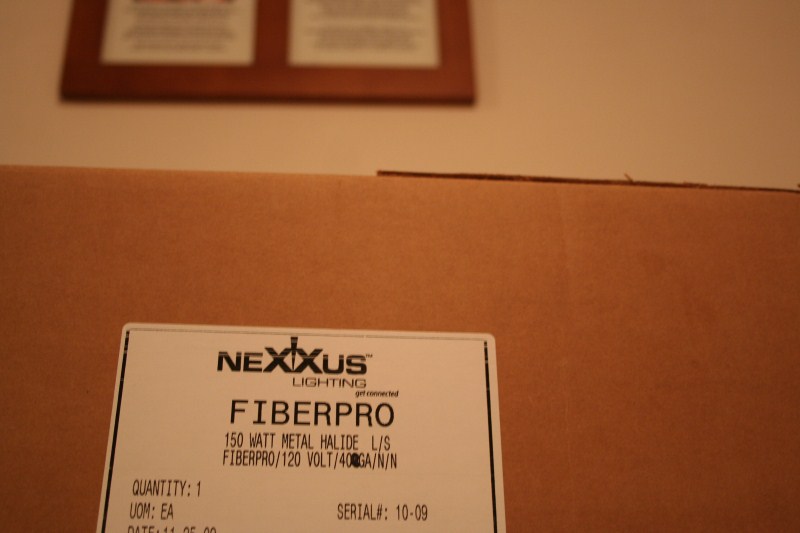

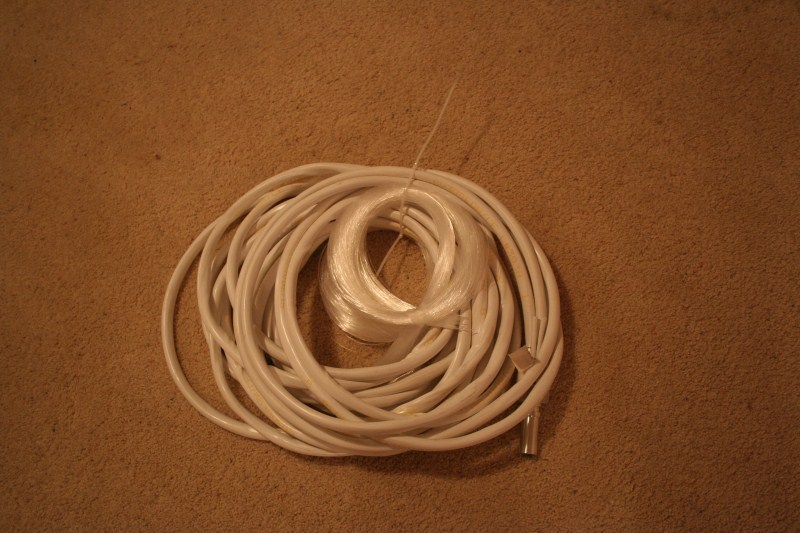

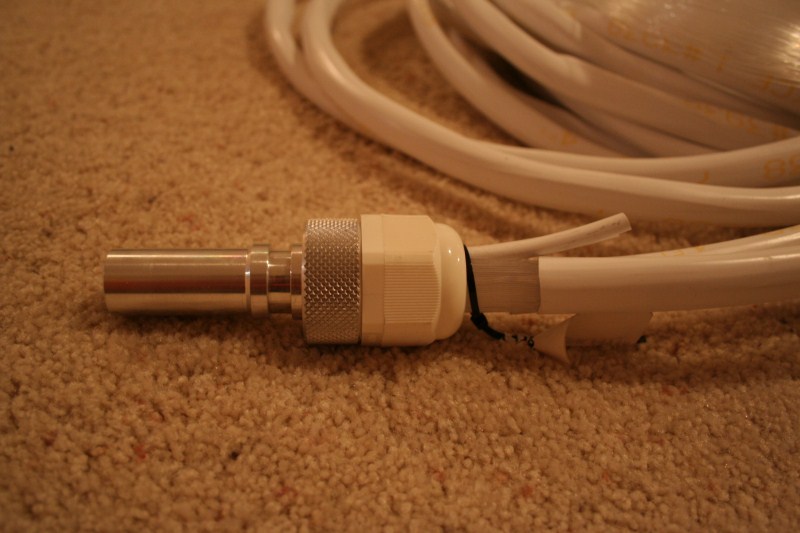

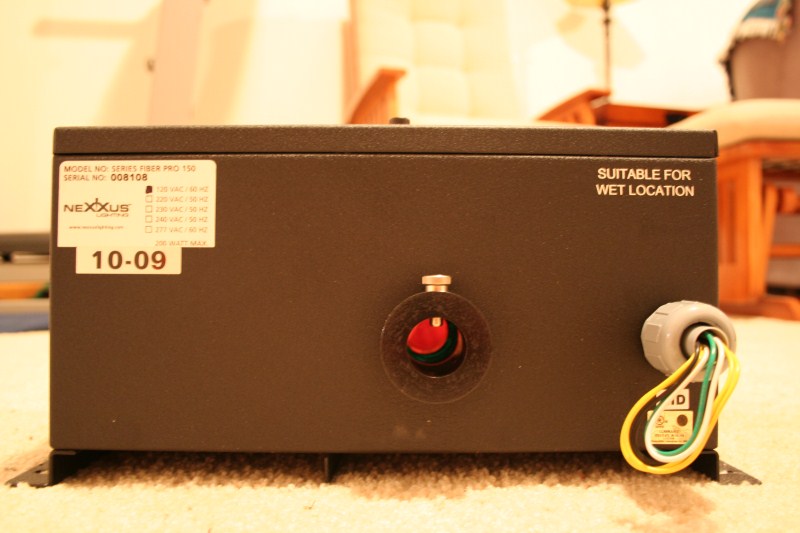

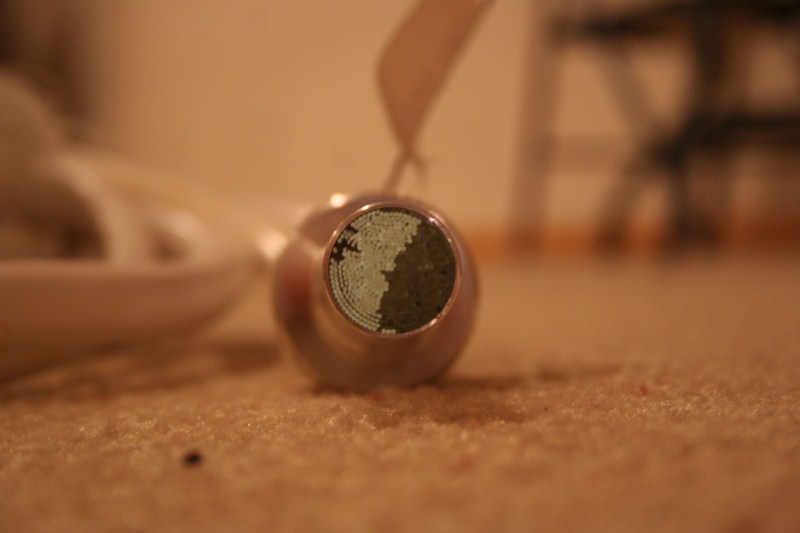

Up for sale is a new Nexxus SV Lighting Fiber Pro Projector, with 600 strands, 2 pieces of SV300EGW terminated into 1 connector(can be seen in pictures). The length of the fiber is 32 feet long. So if you were buying the cable bulk it would be 64 feet total. The projector has a cyan blue color wheel. You can take it out, and use the white light, or you could buy a color wheel, and install it. This Would be perfect for a star field, or any other number of cool lighting installs. The projector and fiber are new, and in perfect working condition. If you bought this stuff online You would be around or over 2,000 dollars. Now is your chance to own it for less. This projector is wired for 120v. Please feel free to ask any other questions you may have
Mfg Specs The SV300EG is the largest end glow cable that available for pool lighting, landscape lights and other fiber optic end glow fixtures. The fiber optic cable is .687 of an inch (17.5 millimeters) in diameter. Price and order quantity are in linear feet. Bulk pricing is calculated automatically by our shopping cart, the more you order the larger the discount. End glow cable should always be used with at least a 75 watt halogen fiber optic illuminator. For detailed manufacturer specifications please follow the links below.
The Fiber Pro 150 fiber optic illuminator is a 150 watt metal halide lamp rated at 10,000 hours average life. This illuminator is UL listed for outdoor and indoor use. We recommend this illuminator for outdoor applications since this is the best built outdoor fiber optic illuminator. Make sure that you choose the voltage, color wheel and if you would like synchronous units as well. A synchronous unit is needed when you desire to have two or more units synchronized together for color change.
UL Listed: • Wet and dry locations • UL file No.E202257 Electrical Rating: • 120 VAC, 60 Hz / 4.5 Amps (start up) • 120 VAC, 60 Hz / 2.3 Amps (running) • 220-240 VAC, 50 Hz / 3.5 Amps (start up) • 220-240 VAC, 60 Hz / 2.0 Amps (running) Lamp: • 150 watt metal halide • 10,000 hours average rated life • Vision 2 Technology Fiber Capacity: • 500 fibers w/ 0.75mm fibers • 288 fibers - Ultra SideGlow®(1mm) Power Consumption: • 300 Watts, maximum Safety Features: • Internal 185°F / 85°C thermal protector Ambient Operating Temperature: • -20°F to 110°F • -29°C to 44°C Dimensions: • 8.5"(W) x 14.625" (L) x 6.125" (H) • 216mm x 372mm x 156mm • 14.125"H (359mm) with door open • Allow an additional 5” (127mm) for fiberhead and fiber to “W” position Weight: 23 lbs. 10.5 kg Material / Finish: • Galvanneal • Powder coating, no bare metal inside or outside • Water, corrosion and chemical resistant Mounting / Installation: • Surface or wall mount • Must be flush mounted to surface for proper air separation between compartments. Ventilation: • 115 CFM enclosure cooling • 28 CFM fiber tunnel cooling • Recommended distance from surface, 6” •Recommended distance from another light source, 24” Warranty: 1 Year (excluding lamp) Standards: UL / cUL IP Rating: 23 dB Ratings: • FiberPro:52dbA • FiberPro-Q:35dbA
