Distortion, clipping and SPL

DannyA

DannyA

Audioholic
Deep breath. Here we go.

I would like to learn more about how these three subjects relate to each other and how I can measure them. My system sounds good and gets loud enough (for now) so I'm not trying to fix a problem. I have some simple questions. I kind of know what these terms mean but I wanted clarity from the experts. I'm sure you could go deep in to the technical details but I was hoping to get an explanation a little closer to layman's terms.

What does SPL mean? I know "sound pressure level". But what does that really mean?

What is db? At race tracks, they would measure the sound level coming from the motorcycles to limit how loud they were due to the nearby housing?

What is the term for how loud it gets? SPL or db?

What is distortion?

Is distortion the same as THD listed on AVR specs?

What is clipping?

What does clipping sound like?

What causes clipping?

How does distortion and clipping relate to SPL/db?

How can I visually relate to these subjects when using the volume knob?
For example:
If I'm playing a decent quality track and the volume knob is at -30db and it sounds great but then I turn the knob up to -15db and gets louder, still sounds good but I loose a bit of the subtle sounds or maybe that is a bit of distortion that was the subtle sounds. Next I turn the knob to -8 db and now I hear what I know to be distortion. Am I hearing distortion or clipping at that point? That is why I want to do some real time measurements.

People refer to their SPL meter measurements. Is there a tutorial that would teach me how to take these measurements? Why/what shat should I be measuring?

I'll have some follow up questions once I get a handle on the responses.

Thanks in advance!


Pioneer PDP-5020FD
Yamaha RX-V3800
Samsung BD-F5700 Blu-ray Player
Sony - PS3
Definitive Technology BP7006 Mains
Definitive Technology CS-8060 HD Center
Definitive Technology Pro Monitor 1000 Surround
Power Sound Audio XS 15 Subwoofer

lsiberian

lsiberian

Audioholic Overlord
SPL is the measure of sound pressure level. Sound pressure is what your ear converts into sound through the ear drum and inner ear.

db (decibels) are the unit sound pressure is measured in.

Distortion is anything that makes the sound production not accurate to the recording. A common example is when you push your speaker driver beyond Xmax and the driver begins to produce unpredictable sound because the driver no longer pops like it did within it's stated ranged.

Clipping is when the sine wave frequencies of the sound being sent to the driver is squared off because the wave hits the limits.

Clipping typically makes the sound lose punch. You can see this in pro gear with the little clip lights on a mixing board. It does nasty things when your main vocal hits the red lights. To my ears it removes the natural peaks of the music though in modern recordings clipping is often intentionally forced to make the base track sound louder.

Clipping reduces the possibility for great dynamic peaks in SPL and distortion is not really related to SPL.

The volume knob is simply a gain control. Turning up increases the gain of the input stage into your amplifier. The gain control in pro audio is used to adjust volume into non clipping. The actual volume produced by your amp needs to be measured by an SPL meter. For example a stereo signal is often much stronger than the blu-ray. Thus the need to adjust the gain controls up. It's no different than turning up the speakers for a piano and down for the electric. Clipping can occur anywhere in the chain of a signal being transmitted of course in home audio it really isn't a huge concern. If you were clipping your system it would be obvious. Chances are you never get more than 10 watts through your speaker.

S

shadyJ

Speaker of the House
Staff member
To give the word decibel more context, the decibel scale is relative one, so you have to specify a reference point. In home and car audio, when we say decibel, we usually mean dB(C), and that C is for C weighted scale. The C weighted scale basically measures loudness when things are easy to hear, like big speakers and subwoofers. If you get a SPL meter, you will see a switch that says A and C, keep it on C when you want to test your speakers/subs. A weighting dB(A) is used for measuring quieter sounds and is generally used for gauging noise pollution, and it is using a different reference point than C.

There are other scale weightings aside from A and C, but they aren't widely used.

By the way, decibels is a logarithmic scale, so increases and decreases in power in a way similar to the Richter scale. In case you have forgotten math class, here is a scale that demonstrates how it ramps up:



The bottom row is the ratio of the top row, obviously, and the top row is dB. So, for example, if you want to double your decibel power, you have to add 6 dB, you can see where 6 is right over 2. If you wanted only a tenth of the loudness you have now, you will have to turn the volume down by 20 dB. Here is that scale in a graph, where it might make more sense for you:

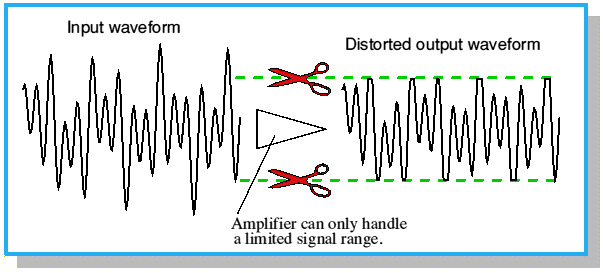

Clipping is something I think is easy to understand when visualized. Here is a good picture describing clipping:


Like the picture says, clipping is when the signal is boosted up so much that there is not enough channel capacity to encompass it all, so the signal peaks get clipped, like Isiberian said. The audibility of the clipping depends on the severity of the clipping, in my experience. If your signal is clipped a little bit, you probably won't notice, but if it clipped a lot, it sounds horrendous. If you are really curious, you can download something like audacity, load up a sound file, and keep boosting the loudness of the sound file until your available wave capacity is maxed out, and then keep pushing it for a harder clip. Pretty soon it sounds like hell. Sometimes some bands like death metal and punk deliberately clip their recordings for a hard thrashing, edgy sound.

To add to Isiberians descritopn of distortion, there is different kinds of distortion. The THD listed on AVRs stands for Total Harmonic Distortion. Every speaker and subwoofer will add distortion, mostly harmonic, to the output, and if want hi fidelity you want to keep that distortion as low as possible. Here is a good short video that explains it succinctly:

[video=youtube;FzeZbJceKZE]http://www.youtube.com/watch?feature=player_detailpage&v=FzeZbJceKZE[/video]
