CEA-2034 (aka: Spinorama)
The following set of data is populated via 360-degree, 10° stepped, “spins” from vertical and horizontal planes resulting in 70 unique measurements. Thus, this is sometimes referred to as “Spinorama” data. Audioholics has a great writeup on what these data mean (
link here) and there is no sense in me trying to re-invent the wheel so I will reference you to them for further discussion. However, I will explain these curves lightly and provide my own spin on what they mean (pun totally intended). Sausalito Audio also has a good write-up on these curves
here. Furthermore, you can find discussion in Dr. Floyd Toole’s book “Sound Reproduction”.
Here’s my Amazon affiliate link if you want to purchase it and help me earn about 2% of the price. And, finally,
here is a great video of Dr. Toole discussing the use of measurements to quantify in-room performance.
In short, the CEA-2034 graphic below takes all the response measurements (horizontal and vertical) and applies weighting and averaging to sub-sets and can help provide an (accurate) prediction of the response in a typical room. If there is a single set of data to use in your purchase decision, this is probably it.
Alternatively, click this arrow, if you want my quick take on what these curves mean without going to another site.
This is exactly why I wanted to test this speaker. I’ve never seen a set of CEA-2034 curves that looks like this. The on-axis response and the Listening Window curve is garbage. Tons of resonances. But, I don’t care about that right now. I care about the Directivity Index curves (the dashed blue and red ones).
Both the DI curves follow the on-axis response almost explicitly
until it reaches the breakup point of the front full range speaker. But, mostly, the sets of curves are identical with the on-axis response. Makes sense… I mean, the front speaker is the same as the back 8 speakers. Combing between the multitude of rear speakers would pick up in the upper midrange (where they all begin beaming; neverminding the center-to-center spacing). But the listening window is subject to the same thing so the difference between these sets of curves is practically the same.
Secondly, the value associated to the DI curves is another thing that got my attention. As a point of reference, a true omnidirectional speaker - one that emits the same sound forward as it does to the sides and back - would have a DI value of 0. A front-firing speaker, like we are all used to, has a positive DI value because there is more energy being radiated forward than backward (and only backward at lower frequencies most of the time). I hadn’t considered what a speaker that is primarily firing toward the back would look like, though. But now I know. The DI values are below 0. Which indicates the majority of this speaker’s sound is being radiated behind the speaker rather than the front (the ratio of front to rear sound, really).
This is cool stuff. And for this reason alone, I am pretty excited to have been able to test this speaker in the CEA-2034 fashion.
There’s more to note here if I take my time, I’m sure. But I have to keep going so…
Below is a breakout of the typical room’s Early Reflections contributors (floor bounce, ceiling, rear wall, front wall and side wall reflections). From this you can determine how much absorption you need and where to place it to help remedy strong dips from the reflection(s). But with a speaker like this, where sound is intentionally radiated everywhere, I don’t think you’d want to place absorption anywhere other than the floor and ceiling, if anything.
And below is the Predicted In-Room response compared to a general Target curve equaling -1dB/octave.

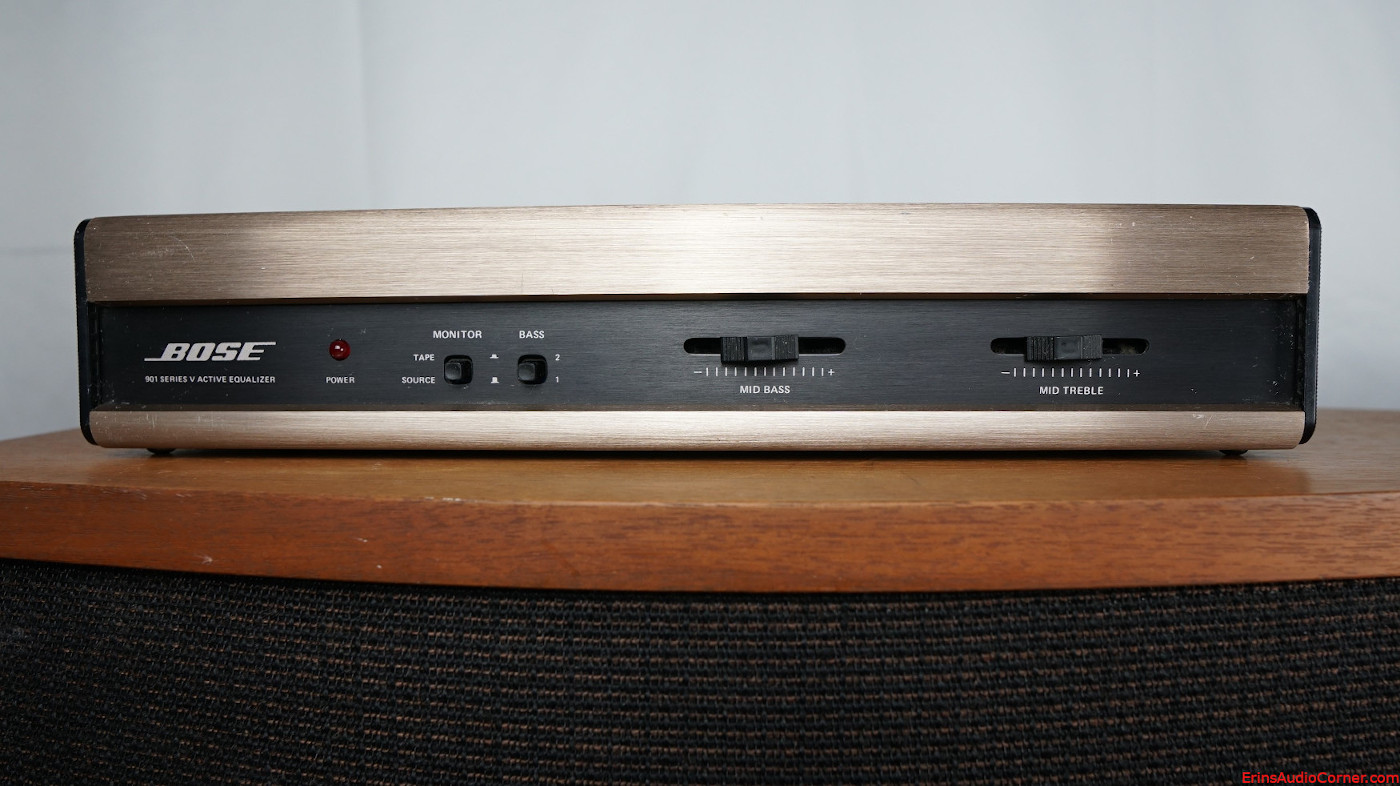

Now, here is the same set of data for the case the EQ was in-line and set to Neutral/Flat/whatever:

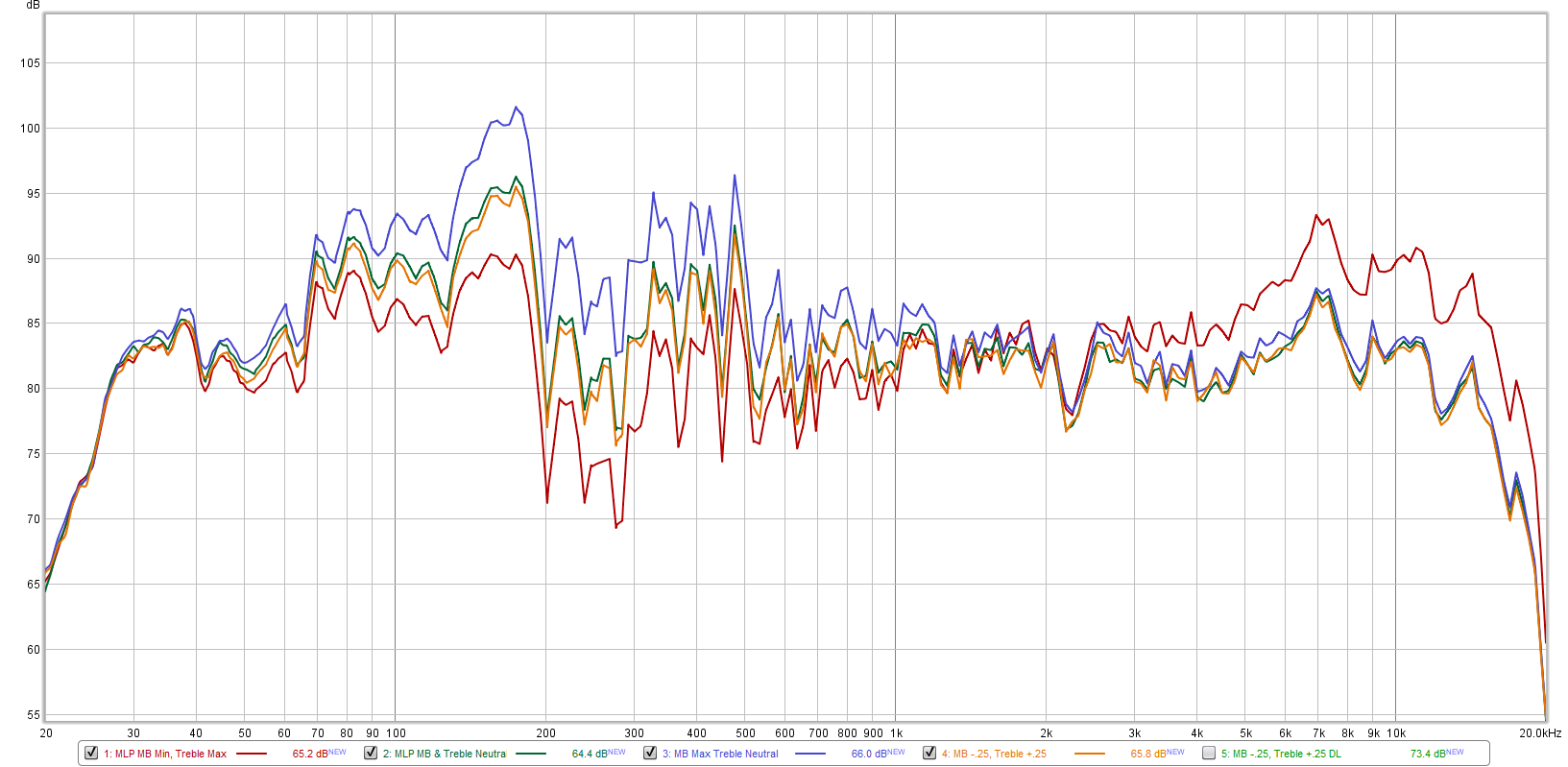

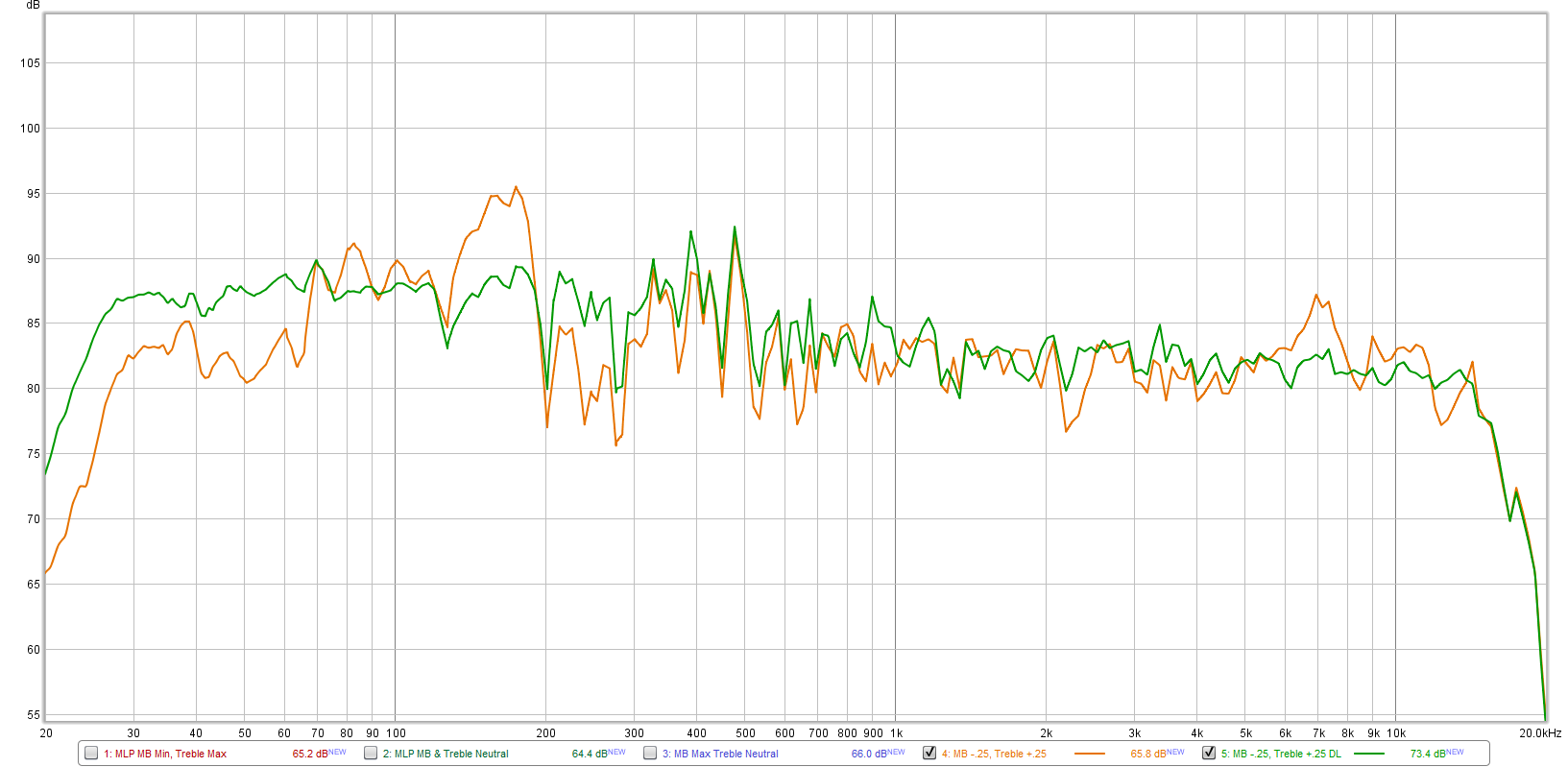

And here is the same set of data for the case the EQ was in-line and set with Midbass Flat and Treble at minimum which I found to be the best compromise for the Spinorama set of data. Though, this didn’t give me the ideal response in my room; for that, I wound up using essentially the “neutral” EQ slider positions.
Total Harmonic Distortion (THD) and Compression
Distortion and Compression measurements were completed in the nearfield (approximately 0.3 meters). However, SPL provided is relative to 1 meter distance.
Harmonic Distortion and Compression: What does this data mean? (click me for info)
EQ not in-line (raw speaker)
But what happens when you put the EQ in-line and set it for neutral?…
Distortion city! Ewwwwww….
Maximum Long Term SPL
The below data provides the metrics for how Maximum Long Term SPL is determined. This measurement follows the IEC 60268-21 Long Term SPL protocol, per Klippel’s template, as such:
- Rated maximum sound pressure according IEC 60268-21 §18.4
- Using broadband multi-tone stimulus according §8.4
- Stimulus time = 60 s Excitation time + Preloops according §18.4.1
Each voltage test is 1 minute long (hence, the “Long Term” nomenclature).
The thresholds to determine the maximum SPL are:
- -20dB Distortion relative to the fundamental
- -3dB compression relative to the reference (1V) measurement
When the speaker has reached either or both of the above thresholds, the test is terminated and the SPL of the last test is the maximum SPL. In the below results I provide the summarized table as well as the data showing how/why this SPL was deemed to be the maximum.
This measurement is conducted twice:
- First with a 20Hz to 20kHz multitone signal
- Second with a limited 80Hz to 20kHz signal
The reason for the two measurements is because it is unfair to expect a small bookshelf speaker to extend low in frequency. Applying both will provide a good idea of the limitations if you were to want to run a speaker full range vs using one with a
typical 80Hz HPF. And you will have a way to compare various speakers’ SPL limitations with each other. However, note: the 80Hz signal is a “brick wall” and does not emulate a typical 80Hz HPF slope of 24dB/octave. But… it’s close enough.
You can watch a demonstration of this testing via my YouTube channel:
Test 1: 20Hz to 20kHz
Table Results:
Multitone compression testing. The red line shows the final measurement where either distortion and/or compression failed. The voltage just before this is used to help determine the maximum SPL.
Multitone distortion testing. The dashed blue line represents the -20dB (10% distortion) threshold for failure. The dashed red line is for reference and shows the 1% distortion mark (but has no bearing on pass/fail). The green line shows the final measurement where either distortion and/or compression failed. The voltage just before this is used to help determine the maximum SPL.
Test 2: 80Hz to 20kHz
Table Results:
Multitone compression testing. The red line shows the final measurement where either distortion and/or compression failed. The voltage just before this is used to help determine the maximum SPL.
Multitone distortion testing. The dashed blue line represents the -20dB (10% distortion) threshold for failure. The dashed red line is for reference and shows the 1% distortion mark (but has no bearing on pass/fail). The green line shows the final measurement where either distortion and/or compression failed. The voltage just before this is used to help determine the maximum SPL.
The above data can be summed up by looking at the tables above but is provided here again:
- Max SPL for 20Hz to 20kHz is approximately 81dB @ 1 meter. Both the distortion and the compression thresholds were exceeded above this SPL.
- Max SPL for 80Hz to 20kHz is approximately 82dB @ 1 meter. The compression threshold was exceeded above this SPL.
Um, yea… this speaker has a LOT of distortion and a lot of compression. Even without EQ. The midrange distortion was glaringly obvious to my ears at some points in certain music when listening at around 90dB.
Extra Measurements
Nearfield measurements.
Mic placed about 0.50 inches - relative to the baffle - from each drive unit and port. While I tried to make these as accurate in SPL as I could, I cannot guarantee the relative levels are absolutely correct so I caution you to use this data as a guide but not representative of actual levels (measuring in the nearfield makes this hard as a couple millimeters’ difference between measurements can alter the SPL level). Plus, with a speaker like this where there are 8 drivers all together on the back, it’s hard to get an accurate nearfield measurement of the rear ports. But, nonetheless, I have provided what I measured.
Step-Response.
Raw speaker step-response.
The graphic below shows both the “raw”, without EQ step-response (blue) as well as the step-response with the EQ in-line (red). I have also annotated the initial impulse peak and the secondary which I believe to be the rear drivers’ time of arrival (the delta in time between the two matches up to the distance between the two).
