Behringer EP2500

[ParadigmDawg]

Did I read somewhere that the toggle switches are either labled incorrectly on the amp or in the owner's manual? Which is correct and where should they be set for mono bridged?



[mike c]

yep.

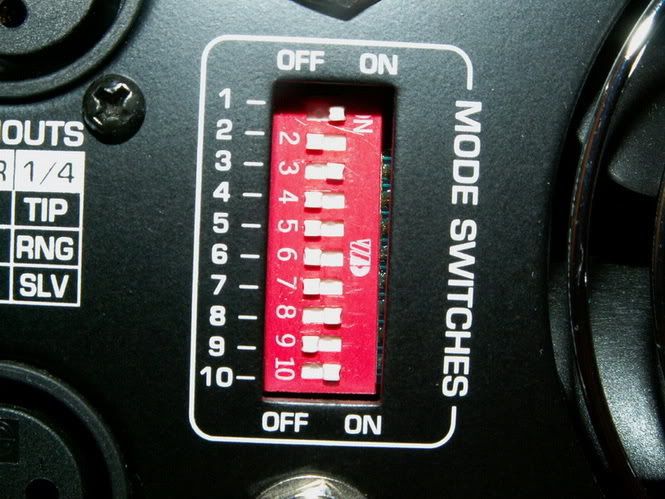

ignore the "mode switches" labels on the left side red part. follow the ones on the right side.



[mike c]

dip switch 3 and 8 should always be to the right. (some people do 2 and 9 as well, but it shouldn't matter)

6 and 7 to the right IF you want to bridge mono the amp.

the manual and the one on the right side are the same.

(sorry, intermittent internet connection)
