Sealed 18" Dayton RSS460HO-4 in 4 cu ft "Kit" - Best thing since sliced bread?

Discussion in 'DIY Corner - Tips & Techniques' started by BoredSysAdmin, Aug 9, 2013.

  1. BoredSysAdmin Audioholic Warlord

    BoredSysAdmin
    Joined:
    Aug 21, 2007
    Messages:
    9,389
    Likes Received:
    3,153
    Location:
    New Joisey
    Data-Bass
    Dayton Audio 18" Reference Series HO Subwoofer and Cabinet P 300-7094

    The measurements look to my ([strike]amateur[/strike] noobish) eye extremely impressing, especially in comparison to much more expensive subs
    What's the catch? In which areas commercials designs like Funk 18.0 and 18.0C are/would be better

    I mean this kit shipped is well under $400. Add pro-amp for another 300-400 and I see $700 sub which easily competes with best (or so it seems from measurements)
    Last edited: Aug 9, 2013
  2. jp_over Full Audioholic

    jp_over
    Joined:
    Jun 23, 2007
    Messages:
    416
    Likes Received:
    110
    Location:
    South Carolina
    Wow - this looks interesting. Since I've got a couple of Yamaha P2500S amps "just sitting around" - I might have to try a new sub project!
  3. fuzz092888 Audioholic Warlord

    fuzz092888
    Joined:
    Feb 13, 2012
    Messages:
    7,877
    Likes Received:
    3,856
    Location:
    42.3464° N, 71.0975° W
    Depends. The 18.0C is pretty comparable, with the edge going to the Dayton kit, but the 18.0 has much less thermal compression and distortion. It can play louder longer and lower than the Dayton even though the Dayton might have it beat for a quick peak. The biggest difference for me is distortion below 30hz. The Funk easily played the 120db sweep with low distortion whereas the Dayton struggled with the 115db sweep.
    • Like Like x 1
  4. BoredSysAdmin Audioholic Warlord

    BoredSysAdmin
    Joined:
    Aug 21, 2007
    Messages:
    9,389
    Likes Received:
    3,153
    Location:
    New Joisey
    TYVM Fuzz . I think I understand it a bit better now.

    Q: Dayton is doing OK with 110db sweep and really well with 105db. Now 105db at 15hz with under 10% thd is not exactly terrible.
    The box and sub are so cheap one could build a pair of them. place on top of each other and get +6 db :) Just not sure how would significant other take it :)
    And CEA2010 results do appear very comparable


    [​IMG]

    [​IMG]
  5. fuzz092888 Audioholic Warlord

    fuzz092888
    Joined:
    Feb 13, 2012
    Messages:
    7,877
    Likes Received:
    3,856
    Location:
    42.3464° N, 71.0975° W
    I find it odd how the THD graphs differ so much from the CEA data.
  6. BoredSysAdmin Audioholic Warlord

    BoredSysAdmin
    Joined:
    Aug 21, 2007
    Messages:
    9,389
    Likes Received:
    3,153
    Location:
    New Joisey
    So, If I read this right, it's a monster at extremely high levels above 40hz (granted efficiency is low) but has some thd/heat compression issues below 30hz at a very high levels (above 110db)
    So for any sane (and yet deaf) person running it up-to 90-100db Max it shouldn't really be a problem, right?
  7. fuzz092888 Audioholic Warlord

    fuzz092888
    Joined:
    Feb 13, 2012
    Messages:
    7,877
    Likes Received:
    3,856
    Location:
    42.3464° N, 71.0975° W
    I would say that once level matched and EQ'ed into a persons system it should be an absolute beast at any frequency from 20-100hz all the way up to reference levels. One thing, I modeled it in the 4cuft. box in bassbox pro and if you were to EQ it with a little boost to counter-act the natural 12db/oct roll off of a sealed cabinet, it would need a high pass filter at around 20hz because it would run out of excursion.

    • Like Like x 1
  8. BoredSysAdmin Audioholic Warlord

    BoredSysAdmin
    Joined:
    Aug 21, 2007
    Messages:
    9,389
    Likes Received:
    3,153
    Location:
    New Joisey
    Great thanks, how much fill you think it would need - I think PE's recommended 5 lbs is a bit too much?
  9. fuzz092888 Audioholic Warlord

    fuzz092888
    Joined:
    Feb 13, 2012
    Messages:
    7,877
    Likes Received:
    3,856
    Location:
    42.3464° N, 71.0975° W
    That sounded a little high so I remodeled it with a typical level of fill instead of heavy. The difference is really negligible. Lightening up on the fill brings Q up slightly and lowers F3 3hz to ~40hz, but everything stays pretty much the same. It doesn't seem to really matter and you could definitely get away with less fill and be fine.

    • Like Like x 2
  10. GranteedEV Audioholic Ninja

    GranteedEV
    Joined:
    Jul 14, 2009
    Messages:
    4,933
    Likes Received:
    2,352
    Location:
    Calgary, Canada
    Not thermal compression, but rather due to its linear excursion limits. The motor loses control over the cone at such long throws due to a variety of factors - BL, Le, and suspension.

    For music no, but for movies, the potential is genuinly there of overdriving it.

    Of course, four of these things and you'll be in bliss.
    Last edited: Aug 11, 2013
    • Like Like x 1
  11. afterlife2 Audioholic Ninja

    afterlife2
    Joined:
    Oct 7, 2011
    Messages:
    4,985
    Likes Received:
    1,655
    Location:
    In a Small Space.

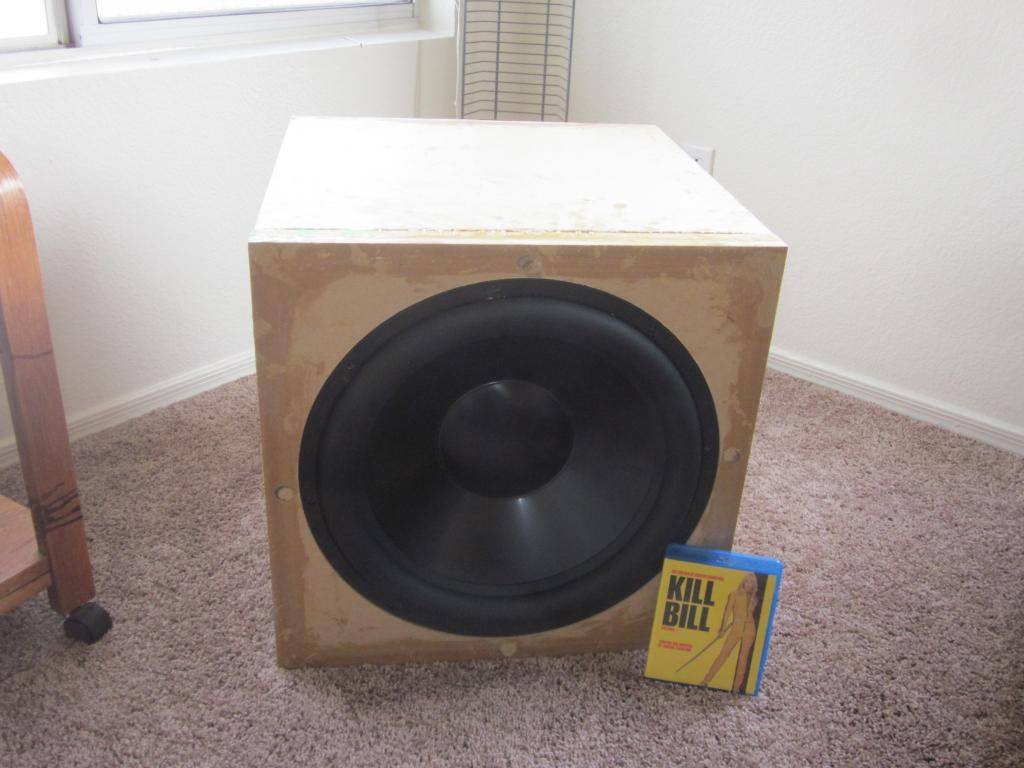

    This guy fade to black did a great job:
    [​IMG]
    This guy Shackster A little too big, but nice:
    [​IMG]
    Wish I had all those tools...BSA are you gonna buy the box and install it???
    • Like Like x 1
  12. panteragstk Audioholic Chief

    panteragstk
    Joined:
    Aug 14, 2012
    Messages:
    805
    Likes Received:
    198
    These look interesting. Shockingly cheap for the performance. I may have to build one for my living room setup when the time comes. Nice find.
  13. BoredSysAdmin Audioholic Warlord

    BoredSysAdmin
    Joined:
    Aug 21, 2007
    Messages:
    9,389
    Likes Received:
    3,153
    Location:
    New Joisey
    Lets say, If I had DSP before it, like in iNUKE dsp amps, how would I limit it from over-driving?
  14. fuzz092888 Audioholic Warlord

    fuzz092888
    Joined:
    Feb 13, 2012
    Messages:
    7,877
    Likes Received:
    3,856
    Location:
    42.3464° N, 71.0975° W
    You would need to use a high pass filter at like 20hz or maybe even a little higher to roll off the lower frequencies to keep yourself from exceeding excursion limits.
    • Like Like x 1
  15. BoredSysAdmin Audioholic Warlord

    BoredSysAdmin
    Joined:
    Aug 21, 2007
    Messages:
    9,389
    Likes Received:
    3,153
    Location:
    New Joisey
    Same here, I wish I had the tools too and for now I live in apt just like you are, in fact we practically neighbors...
    Something tells me even if I get the tools, wife would appreciate the build taking most of the space in the living room, not to mention wood clue vapors for several weeks :)

    What we need to find is a local wood shop, where for small membership we could use the space, the tools and hopefully someone's advice :)


    btw: I did locate Fade to black build threads, with knock-down PE box it should be much simpler process
    Dayton RSS460HO Reference 18" subwoofer sealed BUILD THREAD - Home Theater Forum and Systems - HomeTheaterShack.com
    Dayton RSS460HO Reference 18" subwoofer sealed BUILD THREAD
  16. fuzz092888 Audioholic Warlord

    fuzz092888
    Joined:
    Feb 13, 2012
    Messages:
    7,877
    Likes Received:
    3,856
    Location:
    42.3464° N, 71.0975° W
    The knock down cabinets were designed so that theoretically you could put them together with wood glue and tape. IME the wood glue doesn't smell much or at all. Then again it could be because I'm comparing glue smell to polyurethane fumes :D

    • Like Like x 1
  17. afterlife2 Audioholic Ninja

    afterlife2
    Joined:
    Oct 7, 2011
    Messages:
    4,985
    Likes Received:
    1,655
    Location:
    In a Small Space.
    I was thinking where the heck would I put that monster? That thing will be huge for my tiny studio.:) 15" might be better. Maybe the PB1000 would suit me better, hmmmm...
  18. fuzz092888 Audioholic Warlord

    fuzz092888
    Joined:
    Feb 13, 2012
    Messages:
    7,877
    Likes Received:
    3,856
    Location:
    42.3464° N, 71.0975° W
    I see a subwoofer project coming up. Better fire up bassbox pro :p
    • Like Like x 1
  19. fuzz092888 Audioholic Warlord

    fuzz092888
    Joined:
    Feb 13, 2012
    Messages:
    7,877
    Likes Received:
    3,856
    Location:
    42.3464° N, 71.0975° W
    Another option is the Obsidian 15" driver in a 3cuft box. Saves you a little more space, doesn't start to run out of xmax until about 2500 watts, at which point it should be up around 120db at 80ish hz. The downside is that there are no distortion measurements on it.

    $160 plus shipping.

    $90 for the flat pack.

    $100 in binding posts, wire, and pillows

    $30 in duratex

    ~$380

    EDIT, I lied. Josh has tested the 18" version of the obsidian and the distortion plots look pretty good compared to the Dayton. In fact the Obsidian does a touch better in some areas, since the thd component measurements were done at 120db and the dayton was done at 115db and they look pretty similar. Then the thd sweeps the obsidian looks like it wins out in the 120 and 115 sweeps while the dayton does better at the 110db sweep.

    http://www.data-bass.com/data?page=system&id=93&mset=100

    http://www.data-bass.com/data?page=system&id=89&mset=96
    Last edited: Aug 17, 2013
  20. fuzz092888 Audioholic Warlord

    fuzz092888
    Joined:
    Feb 13, 2012
    Messages:
    7,877
    Likes Received:
    3,856
    Location:
    42.3464° N, 71.0975° W
    I never should have come to this thread. Now I want to build a subwoofer. :eek:
