Problems replacing a projector bulb

ebakunin

ebakunin

Audiophyte

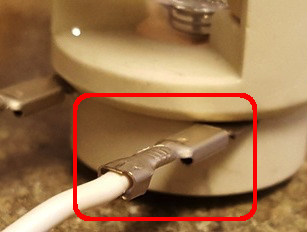

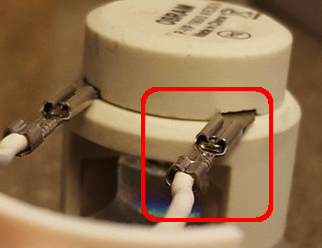

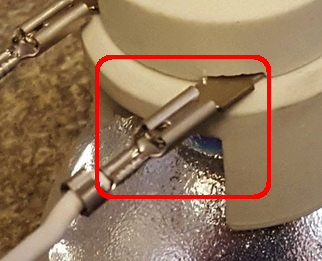

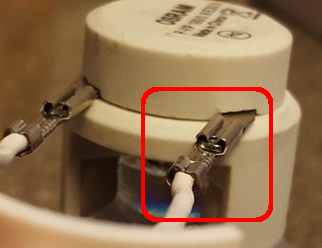

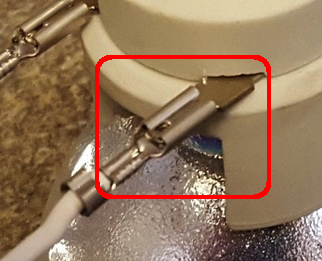

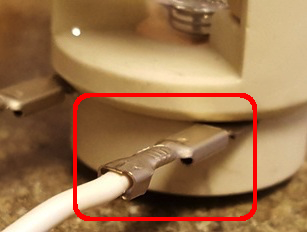

I am replacing the bulb (MC.JH111.001) on my Acer Projector H5380BD. While removing the connections on the old bulb I came across the following clamps. I cannot figure out how to remove them. Any suggestions would be appreciated. Thanks.



slipperybidness

slipperybidness

Audioholic Warlord
I am replacing the bulb (MC.JH111.001) on my Acer Projector H5380BD. While removing the connections on the old bulb I came across the following clamps. I cannot figure out how to remove them. Any suggestions would be appreciated. Thanks.


View attachment 17532 View attachment 17534View attachment 17533
Those should pretty much just pull right off. There may be a hole or dimple on 1 piece and a nub on the corresponding other piece that slips into the hole or dimple. If it has that, then you may need to use a small flat blade screwdriver to help disconnect the nub while you pull the connector off

ebakunin

ebakunin

Audiophyte
Thanks so much for the quick reply. The clamps were extremely tight and required a screwdriver and a lot of carefully applied force, but they did come off. I appreciate the help!
