Lost remote volume cntrl. on creative fps2000

N

naccaratoj

Audiophyte
Hi , I recently bought a used Creative FPS2000 Four Point Surround sound center. When I got around to opening it, I realized the remote volume control was missing, and won't work without it. Is there any way to bypass it?

TLS Guy

TLS Guy

Seriously, I have no life.
Hi , I recently bought a used Creative FPS2000 Four Point Surround sound center. When I got around to opening it, I realized the remote volume control was missing, and won't work without it. Is there any way to bypass it?
This has come up before. It seems the remotes a missing as they fail. The On/Off/volume control was apparently very poor quality and falls to bits almost universally.

All you can do is build another and apparently many have.

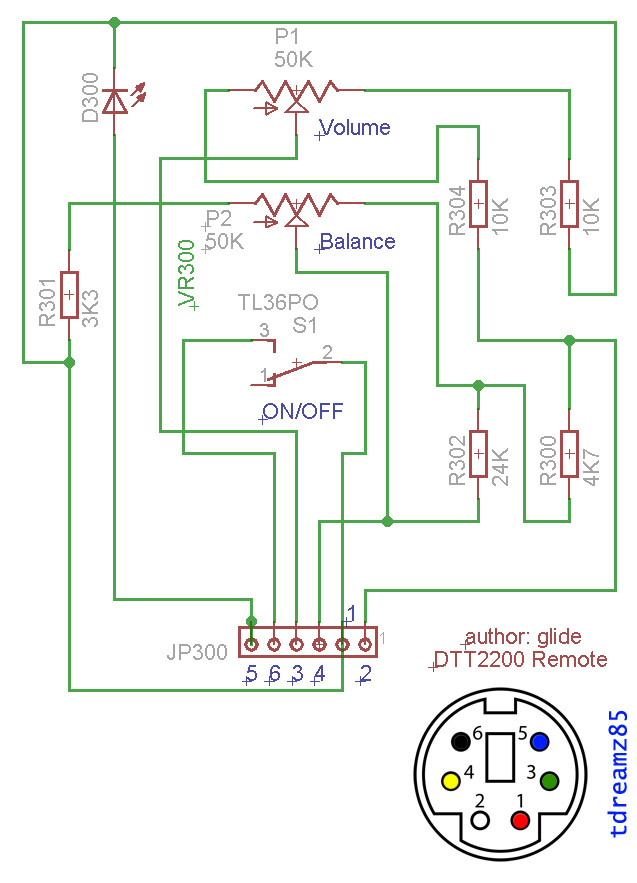

Here is the circuit.



Time to get the soldering iron out.

If you don't have the instruction manual here is one.

Fortunately it is a wired remote and very simple, so building a replacement is straightforward.
