Messing around in WinISD seems to point to 85 litres and 22 Hz tune which gives an F3 of 21.1 Hz. That seems to give the best balance of size, extension and output. Does that make sense? Further questions:

1)I'm not sure about the vent dimensions. They can be manipulated in WinISD, so how can I tell what is correct?
2)How does volume, tuning and the vent affect power limits?
3)How do you determine the appropriate HPF?

annunaki

annunaki

Moderator
So in doing some modeling, assuming the T/S parameters are correct, it appears as though this driver was designed for sealed/PR use. The reason I say that is because the size enclosures required from a vented standpoint. The issue I see in going vented is the vent length, at nearly 80" to keep vent velocity below compression with 500 watts RMS in a 95L enclosure. The response looks great with an F3 around 17.5 hz and an upper -3db point of 87.4hz with a 4th order low pass at 80hz.

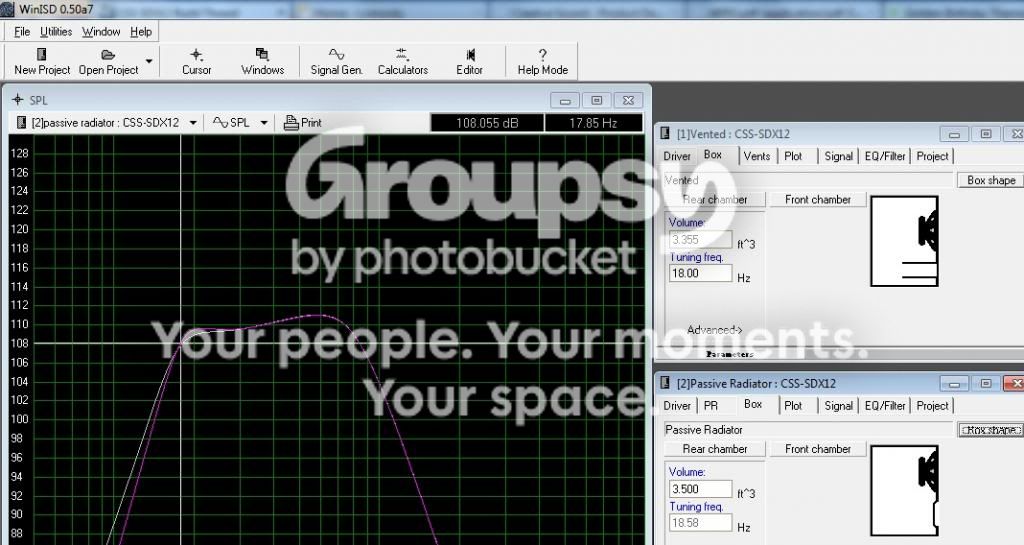

Going the PR route can put you at a smaller net enclosure volume (no need for vent displacement) and yield nearly the exact same performance as a vented application. Below is the SDX 12 modeled in 3.50ft^3 with APR15s (purple trace). Xmax is well in line and the lower and upper -3db points are nearly identical to vented without the hassle. The other big advantage here is that you would avoid vent resonance issues which would likely be entirely present with the vented application unless using a VERY steep filter on the low pass.

In either application it would be advised to add a 2nd order infrasonic filter at 14hz, which will have minimal impact on response and f3, perhaps pushing it up by about 1hz or so but would greatly help to protect the woofer.

If these are my drivers, I bite the bullet and go the PR route...




GO-NAD!

GO-NAD!

Audioholic Spartan
So in doing some modeling, assuming the T/S parameters are correct, it appears as though this driver was designed for sealed/PR use. The reason I say that is because the size enclosures required from a vented standpoint. The issue I see in going vented is the vent length, at nearly 80" to keep vent velocity below compression with 500 watts RMS in a 95L enclosure. The response looks great with an F3 around 17.5 hz and an upper -3db point of 87.4hz with a 4th order low pass at 80hz.

Going the PR route can put you at a smaller net enclosure volume (no need for vent displacement) and yield nearly the exact same performance as a vented application. Below is the SDX 12 modeled in 3.50ft^3 with APR15s (purple trace). Xmax is well in line and the lower and upper -3db points are nearly identical to vented without the hassle. The other big advantage here is that you would avoid vent resonance issues which would likely be entirely present with the vented application unless using a VERY steep filter on the low pass.

In either application it would be advised to add a 2nd order infrasonic filter at 14hz, which will have minimal impact on response and f3, perhaps pushing it up by about 1hz or so but would greatly help to protect the woofer.

If these are my drivers, I bite the bullet and go the PR route...



Can I assume that you are talking about a pair of APR15s per sub? That'll cost me $400! I really wasn't counting on that and it's an awfully big bullet to bite. :( I'm willing to go with a higher tune, if I can avoid chucking out that much more cash. How would the 3ft^3, 22Hz tune, as I mentioned above, look in a vented enclosure?

annunaki

annunaki

Moderator
I know not what you were expecting...

Another option you could look at is what I had sent in your PM:
4.0ft^3 net volume with a slot vent of 2.75" x 12.5" x 58.25" and REQUIRES a 13hz high pass filter 2nd order. Your first vent resonance is at 116hz here so a good 4th order high pass/cascaded filter should work. Remember this was simmed with 500 watts of RMS input power.

If power goes up, vent size has to increase to stay below 17m/s. and that is where everything gets tricky because the length increases with the surface area, as does the displacement and then the vent resonance keeps creeping down to a more audible range.

GO-NAD!

GO-NAD!

Audioholic Spartan
Well, in the end, I took Annunaki's advice and I've gone the PR route. They worked out the final specs for the SDX12 and based on those, Jeff Bagby came up with the PR model. He has a reputation for knowing his stuff, so I went with that. The model is quite different from Annunaki's, because he based his on the preliminary specs, which were all he had to work with at the time. If the performance of these subwoofers is even close to Jeff's model, I am going to be very happy.:) If not, well, I'll take 'em apart and start over.:rolleyes::eek: Here's the model: http://creativesound.ca/pdf/Q12XC.pdf.


I followed the plans from CSS for the PR model and have a couple of 18" cubes. Although you will see two enclosures in the photos, I actually built three. After I had finished assembling two enclosures, I had them sitting side-by-side and noticed that they didn't look quite identical. After staring for a couple of minutes, I figured it out - the bracing in one of them was out of position by 90°. I knew it would be futile to try to disassemble it, but I didn't have anything to lose by trying. Of course, I destroyed it as the joints were very strong. Oh well, I'm glad that MDF is cheap...

One slight variation that I have included, is to rotate the enclosures forward 90°, so that the drivers are now downfiring and the SPA500's are on top. Since these subs will be placed behind the PJ screen false wall and with just 22" of space between it and the front wall, it's the only way I'd have access to the amps. Bob, at CSS assured me that these drivers are suitable for a downfiring configuration, so that's my solution. I just finished the flat black paint yesterday, so I think I'll give them a couple of days extra drying time before installing the drivers, PR's & amps.
